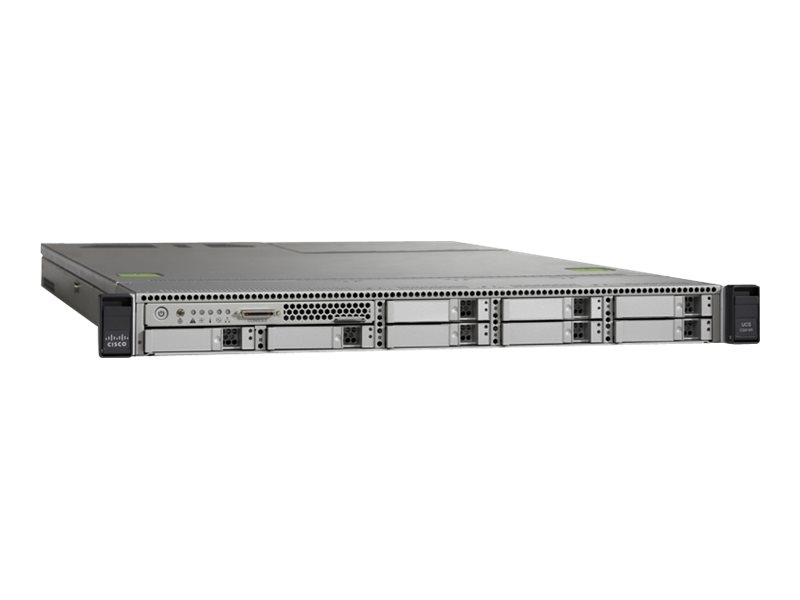

Cisco UCS C220 M3 High-Density Rack Server Large Form Factor Hard Disk Drive - rack-mountable - no CPU - 0 GB - no HDD

SKU UCSC-C220-M3L=
Product Description:Cisco UCS C220 M3 High-Density Rack Server Large Form Factor Hard Disk Drive - rack-mountable - no CPU - 0 GB - no HDD
Type:Server - rack-mountable
Height (Rack Units):1U
Server Scalability:2-way
Processor:No CPU
Processor Socket:LGA2011 Socket
RAM:0 GB DDR3 SDRAM - ECC
Not in stock
  • Specifications
  • Description
General
Type:Server
Product Form Factor:Rack-mountable - 1U
Server Scalability:2-way
Hot-Swap Bays Qty:4
Processor / Chipset
CPU:No CPU
Max CPU Qty:2
CPU Upgradability:Upgradable
CPU Socket:LGA2011 Socket
Chipset Type:Intel C600
RAM
Installed Size:0 GB
Technology:DDR3 SDRAM - ECC
Features:Registered, Memory Mirroring, low-voltage
Hard Drive
Type:No HDD
Storage Controller
Type:RAID - integrated
Controller Interface Type:SATA 3Gb/s
Channel Qty:4
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Type:Integrated
Graphics Processor:Matrox G200e
Video Memory:256 MB
Video Interfaces:VGA
Networking
Ethernet Ports:2 x Gigabit Ethernet
Ethernet Controller:Intel I350
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:IPMI 2.0, CLI
Expansion / Connectivity
Bays:8 (total) / 8 (free) x hot-swap 3.5"
Slots:2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x memory ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 ¦ 1 (total) / 1 (free) x PCIe 2.0 x16
Interfaces:1 x serial ¦ 2 x USB 2.0 ¦ 1 x management ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x KVM
Miscellaneous
Included Accessories:Rack rail kit
Compliant Standards:CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943, EN 300 386
Power
Device Type:Power supply
Installed Qty:0
Max Supported Qty:2
Voltage Required:AC 120/230 V (50/60 Hz)
Manufacturer Warranty
Service & Support:Limited warranty - advance parts replacement - 3 years - response time: next business day
Dimensions & Weight
Width:43 cm
Depth:72.4 cm
Height:4.3 cm
Weight:10 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90% (non-condensing)
vis mere
The Cisco Unified Computing System (Cisco UCS) combines Cisco UCS C-Series Rack Server simplifies management and delivers greater cost efficiency and agility with increased visibility and control. This server increases compute density through more cores and cache balanced with more memory capacity, disk drives and with faster I/O. The Cisco UCS C220 M3 Rack Server is designed for performance and density over a wide range of business workloads, from web serving to distributed databases.
  • Wire-once deployment model in which changing I/O configurations no longer means installing adapters and recabling racks and switches
  • Fewer interface cards, cables, and upstream network ports to purchase, power, configure, and maintain
  • Consistent and scalable operational model
  • Increased security and efficiency with reduced complexity
  • Capability to move virtual machine security features and policies from rack to rack or rack to blades
  • Entire solution managed as a single entity with Cisco UCS manager, improving operational efficiency and flexibility
  • Service profiles and templates that implement role- and policy-based management, enabling more effective use of skilled server, network, and storage administrators
  • Dual-redundant fans and hot-swappable, redundant power supplies for enterprise-class reliability and uptime
  • Outstanding network I/O performance and increased network efficiency and flexibility
  • Increased network availability when configured in failover configurations




The technical details come from 3rd party. edgemo is not responsible for any errors.
