Printers & POSCisco UCS C220 M3 High-Density Rack-Mount Server Small Form Factor - rack-mountable - no CPU - 0 GB - no HDD
SKU UCSC-C220-M3S=

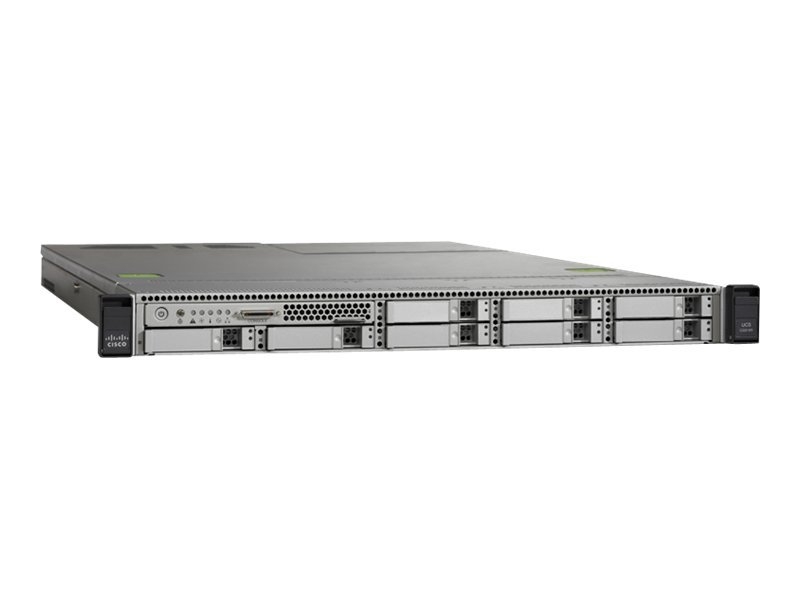

| Product Description: | Cisco UCS C220 M3 High-Density Rack-Mount Server Small Form Factor - rack-mountable - no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | LGA2011 Socket |
| RAM: | 0 GB DDR3 SDRAM - ECC |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 2-way |
| Hot-Swap Bays Qty: | 8 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA2011 Socket |
| Chipset Type: | Intel C600 |
| RAM | |
| Installed Size: | 0 GB |
| Technology: | DDR3 SDRAM - ECC |
| Features: | Registered, Memory Mirroring, low-voltage |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID - integrated |
| Controller Interface Type: | SATA 3Gb/s |
| Channel Qty: | 4 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Type: | Integrated |
| Graphics Processor: | Matrox G200e |
| Video Memory: | 256 MB |
| Video Interfaces: | VGA |
| Networking | |
| Type: | Integrated |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Intel I350 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0, CLI |
| Expansion / Connectivity | |
| Bays: | 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x memory ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 - half-length, full-height |
| Interfaces: | 1 x serial ¦ 2 x USB 2.0 ¦ 1 x management (NIC) ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x KVM |
| Miscellaneous | |
| Included Accessories: | Rack rail kit |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943, EN 300 386 |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Installed Qty: | 0 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - replacement - 3 years - response time: next business day |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 72.4 cm |
| Height: | 4.3 cm |
| Weight: | 10 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
The Cisco UCS C220 M3 rack-mount server is designed for performance and density over a wide range of business workloads from web serving to distributed database.
Building on the success of the Cisco UCS C200 M2 rack-mount server, the enterprise-class UCS C220 M3 server further extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor. In addition, the UCS C220 M3 server provides 16 DIMM slots, 8 drives and 2 x 1 GbE LOM ports delivering outstanding levels of density and performance in a compact package.
Building on the success of the Cisco UCS C200 M2 rack-mount server, the enterprise-class UCS C220 M3 server further extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor. In addition, the UCS C220 M3 server provides 16 DIMM slots, 8 drives and 2 x 1 GbE LOM ports delivering outstanding levels of density and performance in a compact package.
The technical details come from 3rd party. edgemo is not responsible for any errors.
