Printers & POSCisco UCS B200 M3 Entry VDI SmartPlay Expansion Pack - blade - Xeon E5-2680 2.7 GHz - 128 GB - no HDD
SKU UCS-EZ-VDI-B200PK
| Product Description: | Cisco UCS B200 M3 Entry VDI SmartPlay Expansion Pack - blade - Xeon E5-2680 2.7 GHz - 128 GB - no HDD |
| Type: | Server - blade |
| Server Scalability: | 2-way |
| Processor: | 2 x Intel Xeon E5-2680 / 2.7 GHz (3.5 GHz) (8-core) |
| Processor Socket: | LGA2011 Socket |
| Processor Main Features: | Hyper-Threading Technology, Intel Execute Disable Bit, Enhanced Intel SpeedStep Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| Cache Memory: | 40 MB L3 Cache |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Blade |
| Server Scalability: | 2-way |
| Hot-Swap Bays Qty: | 2 |
| Processor / Chipset | |
| CPU: | Intel Xeon E5-2680 |
| Clock Speed: | 2.7 GHz |
| Max Turbo Speed: | 3.5 GHz |
| Number of Cores: | 8-core |
| CPU Qty: | 2 |
| Max CPU Qty: | 2 |
| Processor Main Features: | Hyper-Threading Technology, Intel Execute Disable Bit, Enhanced Intel SpeedStep Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| CPU Socket: | LGA2011 Socket |
| Chipset Type: | Intel C600 |
| Cache Memory | |
| Installed Size: | L3 Cache - 40 MB |
| Cache Per Processor: | 20 MB |
| RAM | |
| Installed Size: | 128 GB / 384 GB (max) |
| Technology: | DDR3 SDRAM - ECC |
| Effective Memory Speed: | 1600 MHz |
| Rated Memory Speed: | 1600 MHz |
| Memory Specification Compliance: | PC3-12800 |
| Form Factor: | DIMM 240-pin |
| Slots: | 24 (Total) / 8 (empty) |
| Features: | Registered, dual rank |
| Configuration Features: | 8 x 16 GB |
| RAM Supported: | 384 GB registered - ECC ¦ 768 GB Load-Reduced - ECC |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | RAID - integrated |
| Controller Interface Type: | SATA 6Gb/s / SAS 6Gb/s |
| Storage Controller Name: | LSISAS2004 |
| RAID Level: | RAID 0, RAID 1 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Type: | Integrated |
| Graphics Processor: | Matrox MGA G200e |
| Networking | |
| Type: | Plug-in module |
| Ethernet Ports: | 4 x 10 Gigabit Ethernet |
| Ethernet Controller: | Cisco UCS Virtual Interface Card 1240 |
| Data Link Protocol: | 10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE) |
| Remote Management Controller: | Cisco Integrated Management Controller |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Expansion / Connectivity | |
| Bays: | 2 (total) / 2 (free) x hot-swap 2.5" |
| Slots: | 2 (total) / 0 (free) x CPU ¦ 24 (total) / 8 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x expansion slot |
| Interfaces: | 1 x KVM |
| Miscellaneous | |
| Included Accessories: | 2 x CPU Heatsink |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943, EN 300 386 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - replacement - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width: | 20.3 cm |
| Depth: | 62 cm |
| Height: | 5 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 5 - 93% (non-condensing) |

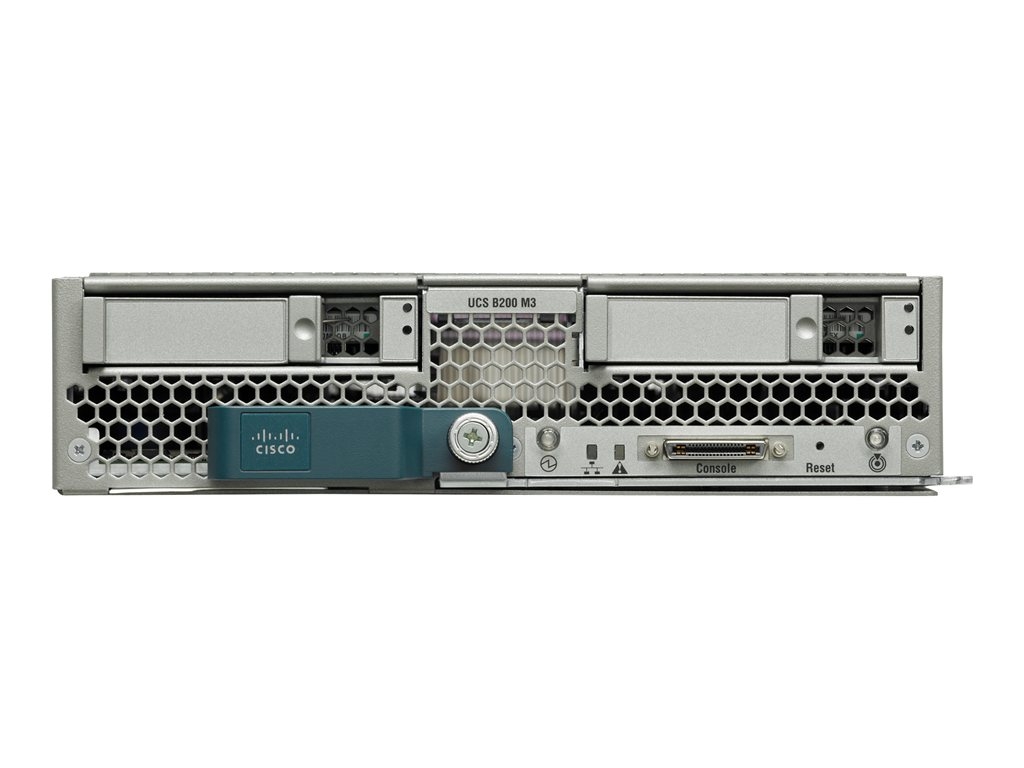

The Cisco UCS B200 M3 blade server delivers performance, versatility, and density without compromise. It addresses the broadest set of workloads, from IT and web infrastructure, through distributed database. The enterprise-class Cisco UCS B200 M3 blade server further extends the capabilities of the Cisco UCS portfolio in a half-width blade form factor.
The Cisco UCS B200 M3 harnesses the power of the Intel Xeon processor, with two disk drives, and up to dual 4x 10 Gigabit Ethernet throughput. In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches in each blade chassis.
The Cisco UCS B200 M3 harnesses the power of the Intel Xeon processor, with two disk drives, and up to dual 4x 10 Gigabit Ethernet throughput. In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches in each blade chassis.
- Intel Xeon processor
- 24 DIMM slots for industry standard double data rate memory running up to 1866 MHz
- Industry-leading 80 Gbps throughput bandwidth
- Remote management through a Cisco Integrated Management Controller that implements policy established in Cisco UCS manger
The technical details come from 3rd party. edgemo is not responsible for any errors.
