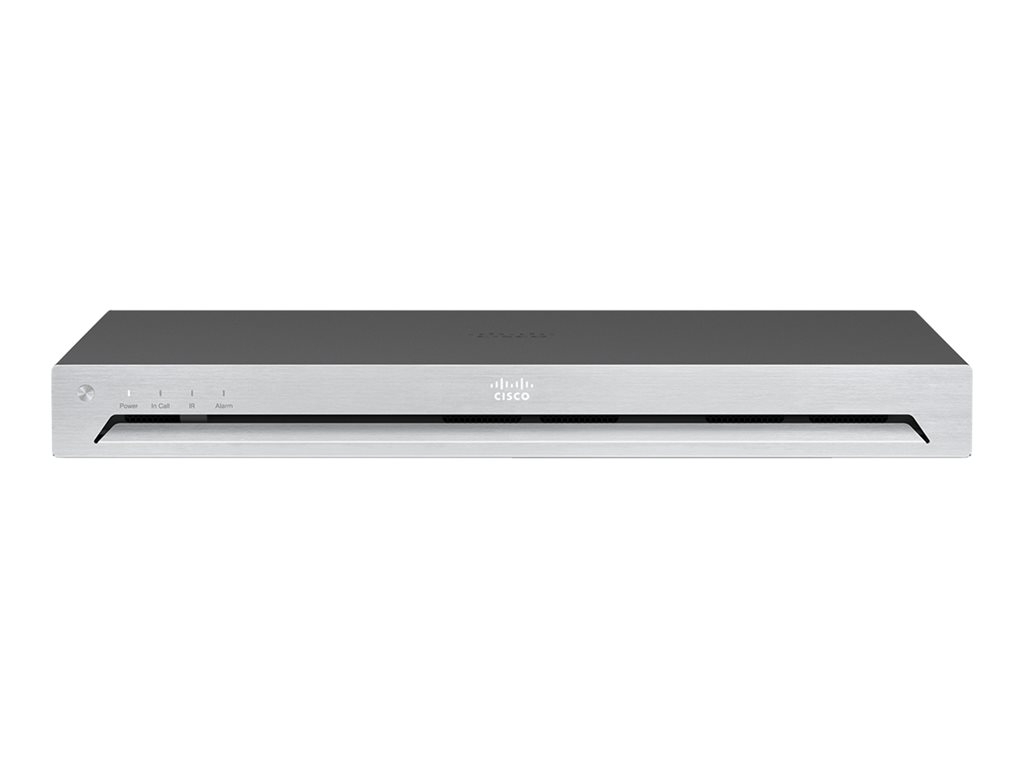

Cisco TelePresence System SX80 Codec - video conferencing device

SKU CTS-SX80CODEC=
Product Description:Cisco TelePresence System SX80 Codec - video conferencing device
Device Type:Video conferencing device
VoIP Protocols:H.323, SIP
Codec:H.261, H.263, H.263+, H.264, H.265, G.711, G.722, G.729ab, G.722.1
Dimensions (WxDxH):44.2 cm x 30.98 cm x 4.4 cm
Weight:3.65 kg
Max Transfer Rate:10 Mbps
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Video conferencing device
VoIP Protocols:H.323, SIP
Voice Codecs:G.711, G.722, G.729ab, G.722.1
Video Codecs:H.261, H.263, H.263+, H.264, H.265
Quality of Service:IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
Security:H.235 v3
Network Protocols:HTTP, HTTPS
Width:44.2 cm
Depth:30.98 cm
Height:4.4 cm
Weight:3.65 kg
Modem
Max Transfer Rate:10 Mbps
Digital Signaling Protocol:H.323, H.239, H.460, H.245
Data Compression Protocol:H.350, H.235 ver 3
Features:Auto gain control, echo cancellation
Video Output
Type:Codec board - rack-mountable
Max External Resolution:1920 x 1080
Supported Display Graphics:HDTV (1920x1080), HD (1280 x 720)
Digital Video Standard:Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI)
Networking
Type:Network adapter
Connectivity Technology:Wired
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol:TCP/IP, NTP, DHCP, DNS
Features:Flow control, LDAP support, VLAN support, DiffServ support, IPv6 support, Quality of Service (QoS), SSH support, IPv4 support, Class of Service (CoS)
Compliant Standards:IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Expansion / Connectivity
Interfaces:2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 1 x display / video - composite video/S-video input - BNC x 2 ¦ 2 x network - RJ-45 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 8 x microphone - input ¦ 4 x audio - balanced input ¦ 6 x audio - balanced output ¦ 2 x management - RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x display / video - DVI-Analogue/Digital input - 24+5 pin combined DVI ¦ 1 x display / video - DVI-Analogue/Digital output - 24+5 pin combined DVI
Miscellaneous
Rack Mounting Kit:Included
Compliant Standards:EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN 60950-1, FCC CFR47 Part 15 B, CAN/CSA-C22.2 No. 60950-1
Power
Power Device:Power supply - internal
Voltage Required:AC 120/230 V (50/60 Hz)
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90%
vis mere
The SX80 Codec is a powerful audio and video engine. It incorporates high-definition video collaboration applications into large meeting rooms, boardrooms, and purpose-built or vertical application rooms such as training, briefing, and demo rooms, and auditoriums.
The SX80 delivers up to 1080p60 end-to-end high definition (HD) video. It offers industry-first support for H.265, which lays the foundation for future bandwidth efficiencies made possible by the standard. The codec offers a rich input and output set and flexible media engine. It supports three screens to help enable a variety of use cases adaptable to your specific needs.
  • Standards-compliant 1080p solution, compatible with standards-based video without losing features
  • 1080p30 HD embedded Cisco TelePresence MultiSite with individual transcoding
  • Supports H.264 and H.265
  • Offers four simultaneous video inputs
  • Supports high-definition content at 1080p30
  • Ideal for team-based collaboration, boardrooms, meeting rooms, and industry applications




The technical details come from 3rd party. edgemo is not responsible for any errors.
