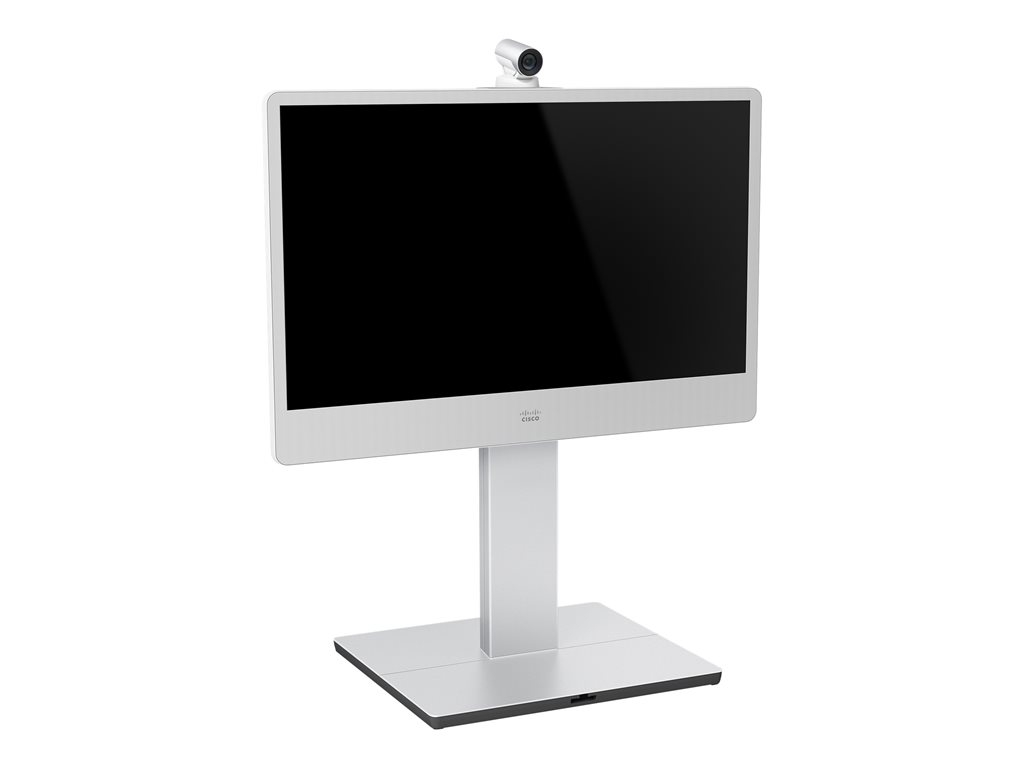

Cisco TelePresence MX300 G2 - video conferencing kit

SKU CTS-MX300-K9
Product Description:Cisco TelePresence MX300 G2 - video conferencing kit
Device Type:Video conferencing kit
Display:55" 1920 x 1080
Digital Signaling Protocol:H.323, SIP, H.239
Data Compression Protocol:G.711, G.722, H.261, H.263, H.264, H.263+, G.722.1
Video Input:Digital video camera
Video Output:Codec board
15-10-2025
  • Specifications
  • Description
General
Device Type:Video conferencing kit
Dimensions & Weight Details:Main system - Width 127.8 cm Height 94.8 cm Weight 35 kg
Built-in Devices:Microphone, stereo speakers, display, camera
Display
Diagonal Size:55"
Native Resolution:1920 x 1080
Image Aspect Ratio:16:9
Image Brightness:450 cd/m²
Image Contrast Ratio:4000:1
Response Time:8 ms
Modem
Digital Signaling Protocol:H.323, SIP, H.239
Data Compression Protocol:G.711, G.722, H.261, H.263, H.264, H.263+, G.722.1
Video Input
Type:Digital video camera (colour) - external
Digital Video Capture Resolution:1920 x 1080
Video Output
Type:Codec board
Supported Display Graphics:HDTV (1920x1080)
Audio Input
Type:Microphone - integrated
Audio Output
Type:Speaker(s)
Sound Output Mode:Stereo
Input Device
Type:Touch-screen
Connectivity Technology:Wired
Networking
Type:Network adapter
Connectivity Technology:Wired
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol:TCP/IP, NTP, DHCP, DNS
Features:Flow control, VLAN support, Quality of Service (QoS), SSH support
Compliant Standards:IEEE 802.1Q, IEEE 802.1x
Expansion / Connectivity
Interfaces:1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x display / video - DVI-Analog/Digital - 24+5 pin combined DVI ¦ 1 x audio - input - mini-phone 3.5 mm ¦ 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - output - mini-phone 3.5 mm
Miscellaneous
Cables Included:1 x DVI-VGA cable ¦ 1 x network cable ¦ 1 x audio cable
Compliant Standards:EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, FCC Part 15 B, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-07
Power
Power Device:Power supply - internal
Voltage Required:AC 120/230 V (50/60 Hz)
Power Consumption Operational:235 Watt
Manufacturer Warranty
Service & Support:Limited warranty - advance parts replacement - 90 days
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:35 °C
Humidity Range Operating:10 - 90%
vis mere
Bring customers, colleagues, and business partners from around the world to work together face-to-face in just about any room or space. The Cisco TelePresence MX300 G2 (MX300 G2) makes it easy to put high-definition video collaboration within reach for everyone at your organization. It delivers ready-to-use simplicity and high quality - at value pricing. Part of the second generation of MX series multipurpose endpoints, the MX300 G2 brings collaborative teams together at a moment's notice. So, you can save money on travel, make decisions faster, and be more productive and innovative.
The MX300 G2 features a sleek design that blends aesthetics, functionality and ease of use. Features such as dual-display and an embedded four-way MultiSite conferencing option deliver more power and flexibility. Rich 1080p60 high-definition (HD) performance lets people interact as naturally as if they were in the same room. It's a great way to enable your extended teams to work together whenever and wherever they want.
Cisco MX300 G2 system is as easy to install as a television, and can be set up in about 10 minutes. It is priced for large-scale deployment, so you can quickly and easily transform any meeting space into a telepresence-enabled team room. Whether you are just getting started with video communications or are planning to video-enable your entire organization, the MX300 G2 can meet your needs.
  • Share multimedia and presentations at the touch of a button
  • The dual-display feature allows another screen to be added for content sharing
  • High-definition content sharing up to 1080p30 resolution is possible
  • You can start a meeting with the OBTP feature
  • The system offers optimal definition up to 1080p60
  • You can make H.323/Session Initiation Protocol (SIP) calls up to 6 Mbps
  • Built-in individually transcoded multipoint conferencing lets you add three additional participants




The technical details come from 3rd party. edgemo is not responsible for any errors.
