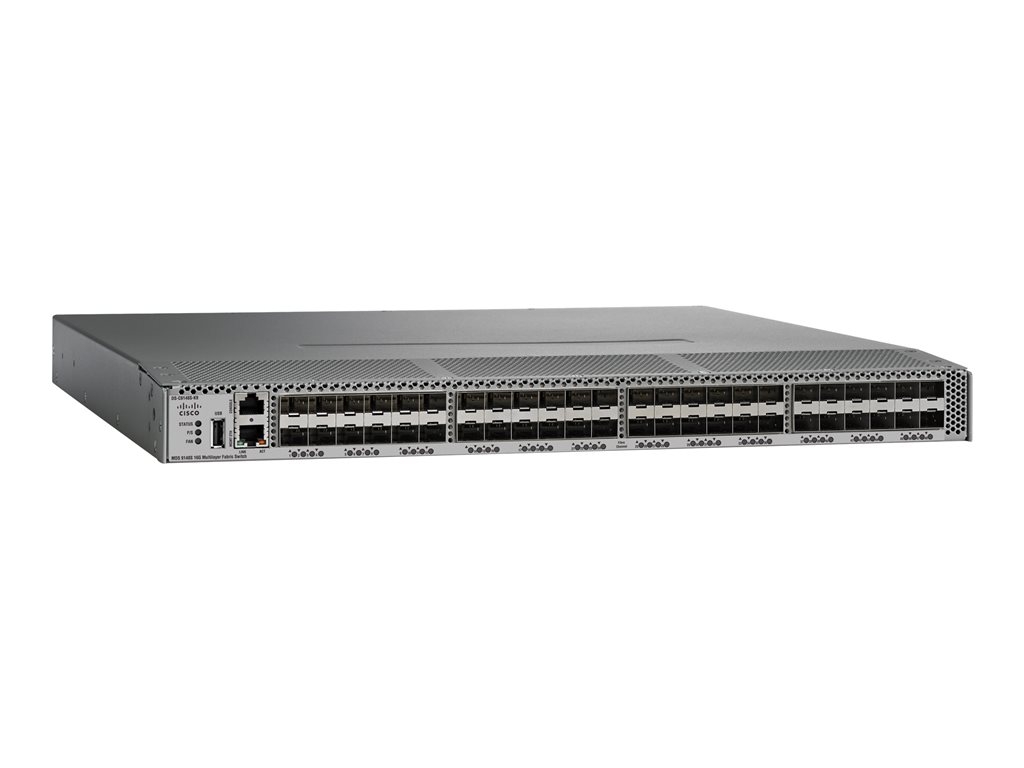

Printers & POSCisco MDS 9148S - switch - 48 ports - Managed - rack-mountable
SKU DS-C9148S-48PK9
| Product Description: | Cisco MDS 9148S - switch - 48 ports - Managed - rack-mountable |
| Device Type: | Switch - 48 ports - Managed |
| Enclosure Type: | Back to front airflow rack-mountable 1U |
| Subtype: | Fibre Channel |
| Ports: | 48 x 16Gb Fibre Channel SFP+ |
| Remote Management Protocol: | RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI |
| Features: | Auto-sensing per device, ISL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), role based access control, Registered State Change Notification (RSCN) support, SFTP client |
- Specifications
- Description
| General | |
| Device Type: | Switch - 48 ports - Managed |
| Enclosure Type: | Back to front airflow rack-mountable 1U |
| Subtype: | Fibre Channel |
| Ports: | 48 x 16Gb Fibre Channel SFP+ |
| Fibre Channel: | FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6 |
| Remote Management Protocol: | RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI |
| Encryption Algorithm: | AES |
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory |
| Features: | Auto-sensing per device, ISL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), role based access control, Registered State Change Notification (RSCN) support, SFTP client |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T RJ-45 management ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x USB Type A ¦ 48 x 16Gb Fibre Channel SFP+ |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Power Provided: | 300 Watt |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards: | CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 3260, EMC, ICES-003 Class A, FIPS 140-2, FCC CFR21 Part 1040, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950 |
| Software / System Requirements | |
| Software Included: | Cisco Data Center Network Manager (DCNM) for SAN Advanced Edition, Cisco MDS 9000 Family Enterprise Package |
| Dimensions & Weight | |
| Width: | 43.59 cm |
| Depth: | 41.5 cm |
| Height: | 4.37 cm |
| Weight: | 9 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
The Cisco MDS 9148S 16G Multilayer Fabric Switch is the next generation of the highly reliable Cisco MDS 9100 series switches. It includes up to 48 auto-sensing line-rate 16-Gbps Fiber Channel ports in a compact easy to deploy and manage 1-rack-unit (1RU) form factor. In all, the Cisco MDS 9148S is a powerful and flexible switch that delivers high performance and comprehensive Enterprise-class features.
- Flexibility for growth and virtualization
- Easy deployment and management
- Optimized bandwidth utilization and reduced downtime
- Enterprise-class features and reliability at low cost
- PowerOn Auto Provisioning and intelligent diagnostics
- In-Service Software Upgrade and dual redundant hot-swappable power supplies for high availability
- Role-based authentication, authorization, and accounting services to support regulatory requirements
- High-performance interswitch links with multipath load balancing
- Smart zoning and virtual output queuing
- Hardware-based slow port detection and recovery
