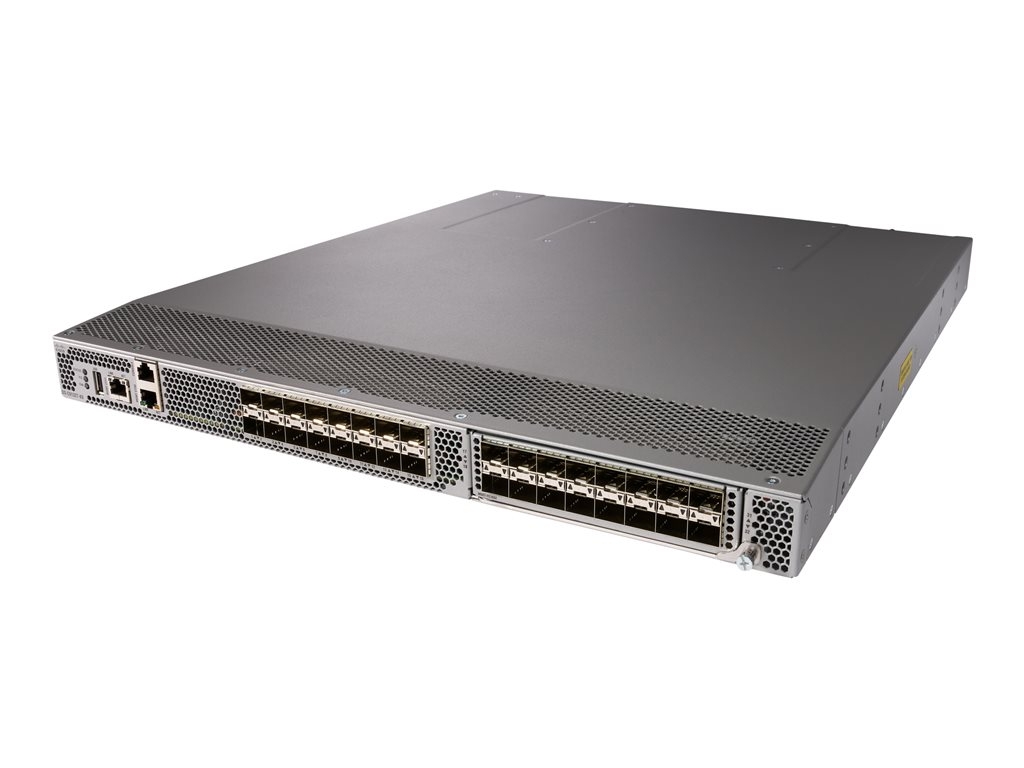

Printers & POSCisco MDS 9132T - switch - Managed - rack-mountable
SKU DS-C9132T-8PMISK9
| Product Description: | Cisco MDS 9132T - switch - Managed - rack-mountable |
| Device Type: | Switch - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | Fibre Channel |
| Ports: | 8 x 32Gb Fibre Channel SFP+ |
| Routing Protocol: | VRRP |
| Remote Management Protocol: | SNMP, RMON, SNMP 3, HTTPS, SMI-S, SSH-2, SFTP |
- Specifications
- Description
| General | |
| Device Type: | Switch - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | Fibre Channel |
| Ports: | 8 x 32Gb Fibre Channel SFP+ |
| Fibre Channel: | FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5, FC-GS-7, FC-LS-3 |
| Routing Protocol: | VRRP |
| Remote Management Protocol: | SNMP, RMON, SNMP 3, HTTPS, SMI-S, SSH-2, SFTP |
| Encryption Algorithm: | AES |
| Authentication Method: | RADIUS, TACACS+, LDAP |
| Features: | Auto-sensing per device, ARP support, LDAP support, Syslog support, ACL support, QoS, RSCN support, Automated Attendant (IVR), 2 fans, ISSU, built-in ASIC, FCS, Cisco ISL, RBAC, TrustSec support, POST, AAA, RDP, VMID support, SPAN, PSI |
| Status Indicators: | Power, system, fan |
| Expansion / Connectivity | |
| Interfaces: | 8 x 32Gb Fibre Channel SFP+ LC multi-mode x 2 ¦ 8 x 16Gb Fibre Channel SFP+ Ports on Demand ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 2 x management (Gigabit LAN) RJ-45 |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Power Provided: | 650 Watt |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Features: | 80 PLUS Platinum efficiency |
| Miscellaneous | |
| Compliant Standards: | CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, EMC, ICES-003 Class A, EN 60825, FCC Part 15 A, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, 21 CFR 1040, TS001 |
| Dimensions & Weight | |
| Width: | 4.37 cm |
| Depth: | 43.9 cm |
| Height: | 51.1 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
The Cisco MDS 9132T switch provides high-speed connectivity from the server rack to the SAN core. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. Small-scale SAN architectures can be built from the foundation using this low-cost, low-power, non-blocking, line-rate, and low-latency, bi-directional airflow capable, fixed standalone SAN switch connecting both storage and host ports. Medium-size to large-scale SAN architectures built with SAN core directors can expand high-speed connectivity to the server rack using these switches either in switch mode.
- High performance
- High availability
- Sophisticated diagnostics
- Virtual machine awareness
The technical details come from 3rd party. edgemo is not responsible for any errors.
