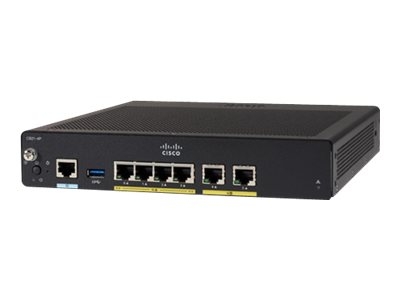

Printers & POSCisco Integrated Services Router 931 - router - desktop
SKU C931-4P
| Product Description: | Cisco Integrated Services Router 931 - router - desktop |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| WAN Ports Qty: | 2 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol: | L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRE |
- Specifications
- Description
| General | |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol: | L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRE |
| Remote Management Protocol: | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Encryption Algorithm: | DES, Triple DES, AES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
| Features: | NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, LLQ, CBWFQ, WFQ, ACL support, QoS, LFI, DMVPN, DHCP server, VRF-Lite, DNS proxy, DHCP relay, DHCP client, MIB, NDP, VPN Server, FNF, DSCP support, Storm Control, SmartPort technology, VPN client, HQoS, SPAN, EEM, MHSRP, NBAR, NBAR 2, PfR, CBTS, CBTP, CBWRED, Cisco IP SLA, Cisco NG PnP Protocol |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, KN24, EN 55024:2010, CNS13438:2006, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 300 386 V1.6.1, CISPR 24:2010, CISPR 22:2008, TCVN 7189, EN 55032, CAN/CSA-C22.2 No. 60950-1, TCVN 7317, KN22:2009, ICES-003:2012 Issue 5, EN 300 386 |
| Processor: | 2.2 GHz |
| RAM: | 1 GB |
| Flash Memory: | 2 GB |
| Expansion / Connectivity | |
| Interfaces: | WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Provided: | Cisco IOS IP Base |
| Dimensions & Weight | |
| Width: | 22.86 cm |
| Depth: | 24.13 cm |
| Height: | 4.32 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The Cisco 900 Series Integrated Services Routers (ISR 900) combine WAN, comprehensive security, and advanced connectivity in a compact, fanless platform. The routers are designed to provide enterprise-class security and connectivity for small to medium businesses. The ISR 931 model comes with a 4-port managed switch, providing LAN ports to connect multiple devices and up to 250 Mbps of VPN throughput for high performance. These small, yet powerful, fixed-configuration routers provide secure broadband and Metro Ethernet connectivity. The routers deliver integrated security and threat defense, protecting networks from both known and new Internet vulnerabilities and attacks.
- Advanced connectivity
- Enterprise-class performance
- Easy provisioning
The technical details come from 3rd party. edgemo is not responsible for any errors.
