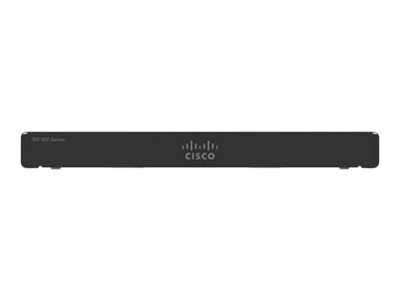

Printers & POSCisco Integrated Services Router 926 - router - cable mdm - desktop
SKU C926-4P
| Product Description: | Cisco Integrated Services Router 926 - router - cable mdm - desktop |
| Device Type: | Router - cable modem - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Digital Signaling Protocol: | VDSL, ADSL2+ |
| WAN Ports Qty: | 2 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol: | L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP |
- Specifications
- Description
| General | |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol: | L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRE |
| Remote Management Protocol: | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Encryption Algorithm: | DES, Triple DES, AES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
| Features: | NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, LLQ, CBWFQ, WFQ, ACL support, QoS, LFI, DMVPN, DHCP server, VRF-Lite, DNS proxy, DHCP relay, DHCP client, MIB, NDP, VPN Server, FNF, DSCP support, Storm Control, SmartPort technology, VPN client, HQoS, SPAN, EEM, MHSRP, NBAR, NBAR 2, PfR, CBTS, CBTP, CBWRED, Cisco IP SLA, Cisco NG PnP Protocol |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, KN24, EN 55024:2010, CNS13438:2006, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 300 386 V1.6.1, CISPR 24:2010, CISPR 22:2008, TCVN 7189, EN 55032, CAN/CSA-C22.2 No. 60950-1, TCVN 7317, KN22:2009, ICES-003:2012 Issue 5, EN 300 386 |
| Processor: | 2.2 GHz |
| RAM: | 1 GB |
| Flash Memory: | 2 GB |
| Communications | |
| Type: | Cable modem |
| Digital Signaling Protocol: | VDSL, ADSL2+ |
| Protocols & Specifications: | ITU G.992.5 Annex B, ITU G.992.5 Annex J |
| Expansion / Connectivity | |
| Interfaces: | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL / ADSL2+ ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
| Power | |
| Power Device: | External power adapter - 30 Watt |
| Voltage Required: | DC 12 V |
| Software / System Requirements | |
| OS Provided: | Cisco IOS IP Base |
| Dimensions & Weight | |
| Width: | 25.91 cm |
| Depth: | 17.78 cm |
| Height: | 2.8 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The Cisco 900 Series Integrated Services Routers (ISRs) combine Internet access, comprehensive security, and wireless services in a single high-performance device that is easy to deploy and manage. They are well suited for deployment as Customer Premises Equipment (CPE) in enterprise small branch offices and in service provider managed-service environments.
- High availability and business continuity
- Consistent, high application performance levels
- Risk mitigation with multilevel security
- Feature consolidation for real estate, Capital Expenditures (CapEx), and management savings
- Unified control of wired and wireless networks from a common console for streamlined operations
- Remote configuration and management to keep local IT staff lean
The technical details come from 3rd party. edgemo is not responsible for any errors.
