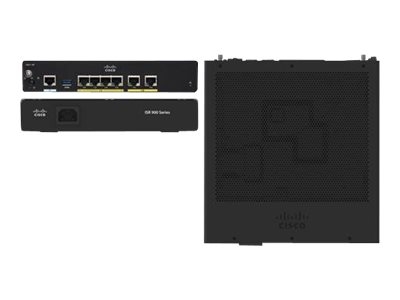

Cisco Integrated Services Router 921 - router - desktop

SKU C921-4P

Product Description:	Cisco Integrated Services Router 921 - router - desktop
Device Type:	Router - 4-port switch (integrated)
Enclosure Type:	Desktop
WAN Ports Qty:	2
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol:	L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP
Routing Protocol:	OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRE

Not in stock

Specifications
Description
Accessories

General
Device Type:	Router - 4-port switch (integrated)
Enclosure Type:	Desktop
Connectivity Technology:	Wired
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol:	L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP
Routing Protocol:	OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRE
Remote Management Protocol:	Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption Algorithm:	DES, Triple DES, AES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+
Features:	NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, LLQ, CBWFQ, WFQ, ACL support, QoS, LFI, DMVPN, DHCP server, VRF-Lite, DNS proxy, DHCP relay, DHCP client, MIB, NDP, VPN Server, FNF, DSCP support, Storm Control, SmartPort technology, VPN client, HQoS, SPAN, EEM, MHSRP, NBAR, NBAR 2, PfR, CBTS, CBTP, CBWRED, Cisco IP SLA, Cisco NG PnP Protocol
Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, KN24, EN 55024:2010, CNS13438:2006, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 300 386 V1.6.1, CISPR 24:2010, CISPR 22:2008, TCVN 7189, EN 55032, CAN/CSA-C22.2 No. 60950-1, TCVN 7317, KN22:2009, ICES-003:2012 Issue 5, EN 300 386
Processor:	2.2 GHz
RAM:	1 GB
Flash Memory:	2 GB

Expansion / Connectivity
Interfaces:	WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A

Power
Power Device:	Internal power supply
Voltage Required:	AC 120/230 V (50/60 Hz)

Software / System Requirements
OS Provided:	Cisco IOS IP Base

Dimensions & Weight
Width:	22.86 cm
Depth:	24.13 cm
Height:	4.32 cm

Manufacturer Warranty
Service & Support:	Limited warranty - advance parts replacement - 1 year - response time: 10 days

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	50 °C
Humidity Range Operating:	5 - 95% (non-condensing)

vis mere

The Cisco 900 Series Integrated Services Routers (ISR 900) combine WAN, comprehensive security, and advanced connectivity in a compact, fanless platform. The routers are designed to provide enterprise-class security and connectivity for small to medium businesses. The ISR 921 model comes with a 4-port managed switch, providing LAN ports to connect multiple devices and up to 150 Mbps of VPN throughput for high performance. These small, yet powerful, fixed-configuration routers provide secure broadband and Metro Ethernet connectivity. The routers deliver integrated security and threat defense, protecting networks from both known and new Internet vulnerabilities and attacks.

High availability and business continuity
Consistent, high application performance levels
Risk mitigation with multilevel security
Unified control of wired and wireless networks from a common console for streamlined operations
Remote configuration and management to keep local IT staff lean

The technical details come from 3rd party. edgemo is not responsible for any errors.
