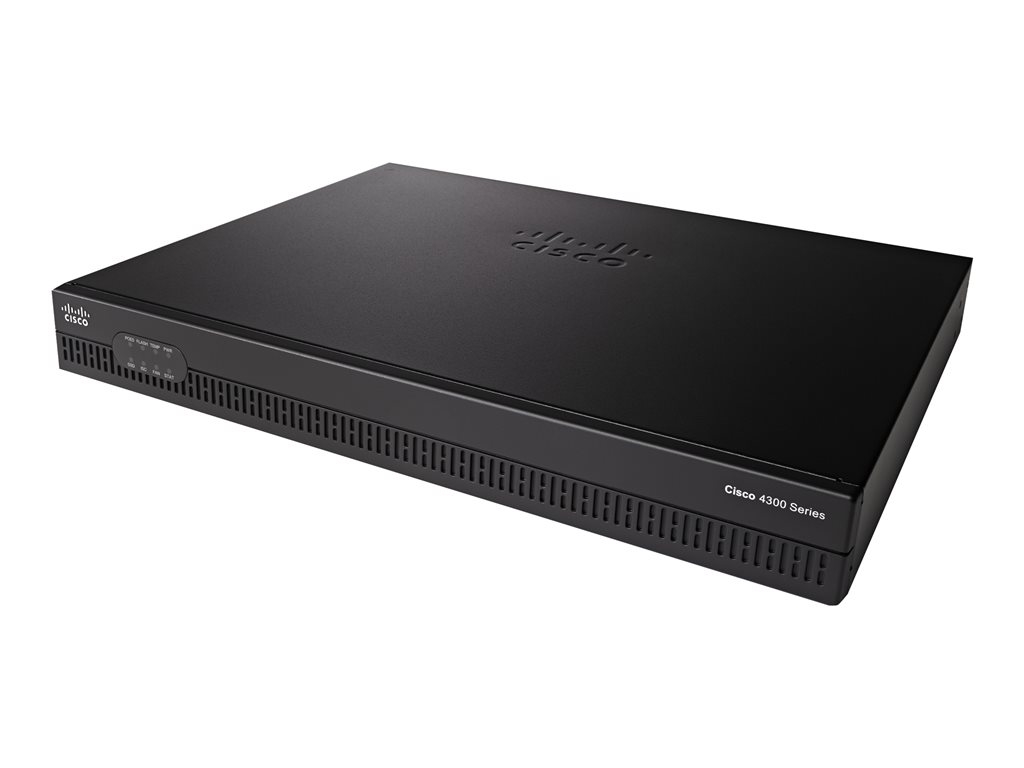

Cisco Integrated Services Router 4321 - Security Bundle - router - rack-mountable

SKU ISR4321-SEC/K9
Product Description:Cisco Integrated Services Router 4321 - Security Bundle - router - rack-mountable
Device Type:Router
Enclosure Type:Rack-mountable - modular - 1U
WAN Ports Qty:2
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Performance:Aggregate throughput: 50 Mbps
Network / Transport Protocol:IPSec, PPPoE, DHCP
04-09-2024
  • Specifications
  • Description
General
Device Type:Router
Enclosure Type:Rack-mountable - modular - 1U
Connectivity Technology:Wired
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Performance:Aggregate throughput: 50 Mbps
Network / Transport Protocol:IPSec, PPPoE, DHCP
Routing Protocol:OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
Remote Management Protocol:SNMP, RMON
Features:Firewall protection, VPN support, VLAN support, Syslog support, IPv6 support, CBWFQ, WRED, wall mountable, IPSec VPN, ACL support, QoS, DMVPN, RADIUS support, NetFlow, IPFIX
Compliant Standards:IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1
RAM:4 GB (installed) / 8 GB (max) - DDR3 SDRAM
Flash Memory:4 GB (installed) / 8 GB (max)
Expansion / Connectivity
Interfaces:WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Serial: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45
Expansion Slots:2 (total) / 2 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 1 (total) / 0 (free) x DIMM 240-pin
Power
Power Device:External power adapter
Voltage Required:AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit:Included
Software / System Requirements
OS Provided:Cisco IOS Security
Software Included:Cisco IOS IP Base
Dimensions & Weight
Width:36.957 cm
Depth:29.464 cm
Height:4.455 cm
Weight:3.5 kg
Manufacturer Warranty
Service & Support:Limited warranty - advance parts replacement - 90 days - response time: 10 days
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:5 - 85%
vis mere
The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With amazing levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet. The Cisco 4000 series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services without slowing your data throughput.
Cisco ISR 4321 features modular network interfaces with diverse connection options for load-balancing and network resiliency and modular interfaces with online removal and insertion (OIR) for module upgrades without network disruption.
  • High performance
  • Lower WAN expenditures
  • Superior and secure user application experiences
  • IT consolidation, space savings, and improved total cost of ownership (TCO)
  • Business continuity and increased resiliency




The technical details come from 3rd party. edgemo is not responsible for any errors.
