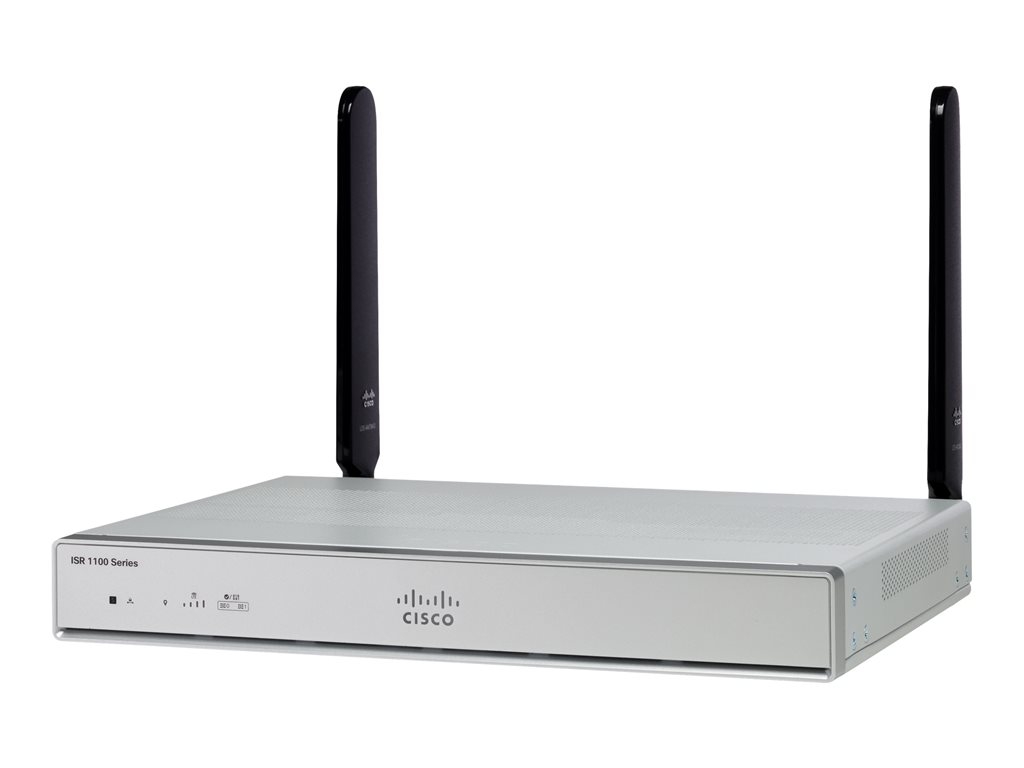

Cisco Integrated Services Router 1126X - router - DSL modem - desktop

SKU C1126X-8PLTEP
Product Description:Cisco Integrated Services Router 1126X - router - DSL modem - desktop
Device Type:Router - DSL modem - 8-port switch (integrated)
Enclosure Type:Desktop
Digital Signaling Protocol:ADSL2, VDSL2+, G.fast (Annex A)
Mobile Communication Protocol:LTE
WAN Ports Qty:1
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Router - 8-port switch (integrated)
Enclosure Type:Desktop
Connectivity Technology:Wireless, wired
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol:IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol:OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol:SNMP, RMON, CLI, TR-069
Encryption Algorithm:DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
Authentication Method:RADIUS
Features:CBWFQ, WRED, ACL support, QoS, DMVPN, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM
Compliant Standards:IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM:8 GB
Flash Memory:8 GB
Status Indicators:Status
Communications
Type:DSL modem
Digital Signaling Protocol:ADSL2, VDSL2+, G.fast (Annex A)
Mobile Communication Protocol:LTE
Expansion / Connectivity
Interfaces:WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE) - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) - RJ-45 ¦ USB 3.0: 1 x console - 9 pin USB Type A ¦ Console: 1 x RJ-45
Power
Power Device:External power adapter
Voltage Required:AC 120/230 V (50/60 Hz)
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:5 - 95% (non-condensing)
vis mere
Get Internet access, advanced security, and wireless services in one device. Cisco 1000 Series Integrated Services Routers (ISRs) are fixed, high-performance routers that are easy to deploy and manage. Small yet powerful, they provide highly secure broadband, Metro Ethernet, and wireless LAN connectivity.
  • Advanced connectivity
  • Intent-based networking
  • Integrated enterprise-class security
  • Easy management and deployment




The technical details come from 3rd party. edgemo is not responsible for any errors.
