Printers & POSCisco Integrated Services Router 1117 - router - DSL modem - desktop
SKU C1117-4PLTEEA
| Product Description: | Cisco Integrated Services Router 1117 - router - DSL modem - desktop |
| Device Type: | Router - DSL modem - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Digital Signaling Protocol: | ADSL2, VDSL2+ |
| WAN Ports Qty: | 2 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance: | Encryption throughput: 250 Mbps |
- Specifications
- Description
| General | |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance: | Encryption throughput: 250 Mbps |
| Network / Transport Protocol: | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol: | SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm: | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method: | RADIUS |
| Features: | CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM |
| Compliant Standards: | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM: | 4 GB |
| Flash Memory: | 4 GB |
| Status Indicators: | Status |
| Communications | |
| Type: | DSL modem |
| Digital Signaling Protocol: | ADSL2, VDSL2+ |
| Protocols & Specifications: | ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.993.2, ITU G.992.5 Annex A |
| Expansion / Connectivity | |
| Interfaces: | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE) - RJ-45 ¦ USB 3.0: 1 x console ¦ WAN: 1 x VDSL2 / ADSL2+ |
| Power | |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Localisation: | Middle East, Africa, North America, Russia, Europe |
| Dimensions & Weight | |
| Width: | 32.3 cm |
| Depth: | 23 cm |
| Height: | 4.2 cm |
| Weight: | 2.59 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 65 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |

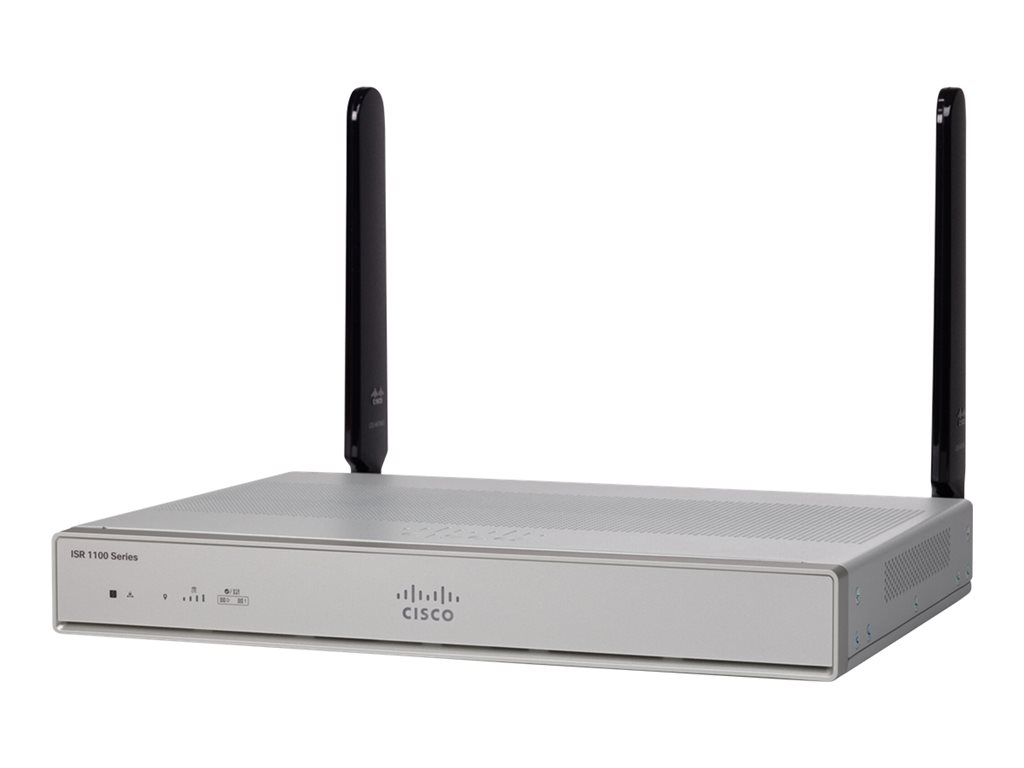

The Cisco C1117-4PLTEEA Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.
- Lightweight, compact size with low power consumption
- High performance to run concurrent services
- Consistent, high application performance levels
- Unified control of wired and wireless networks from a common console
The technical details come from 3rd party. edgemo is not responsible for any errors.
