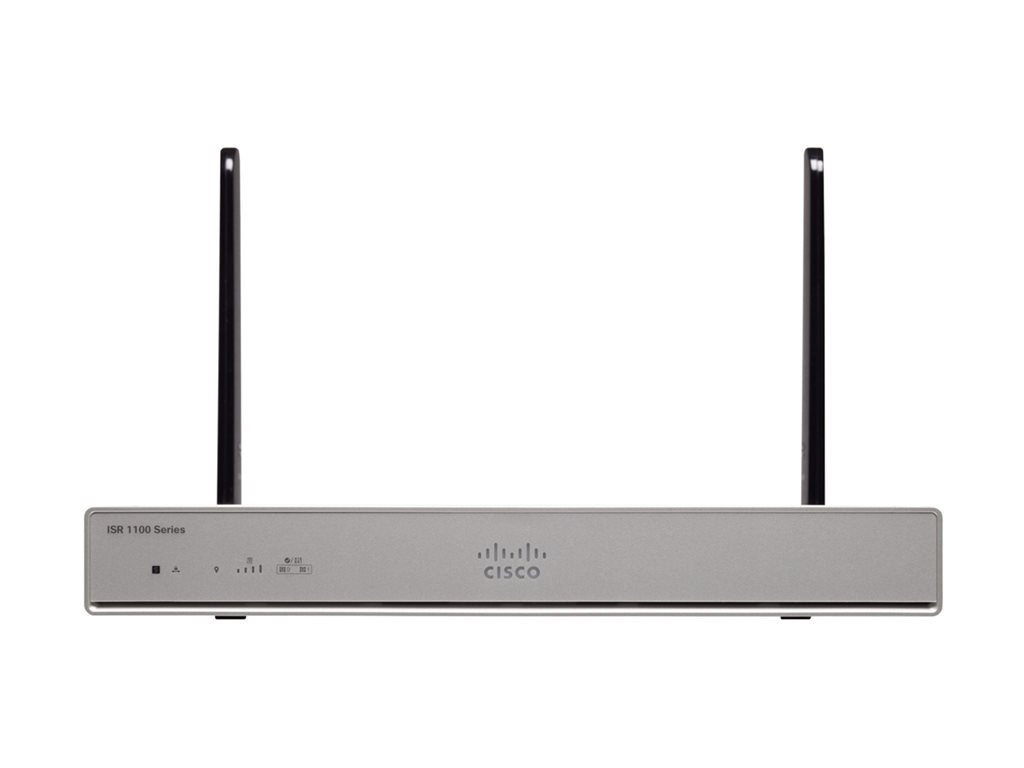

Cisco Integrated Services Router 1111 - router - desktop

SKU C1111-8P

Product Description:	Cisco Integrated Services Router 1111 - router - desktop
Device Type:	Router - 8-port switch (integrated)
Enclosure Type:	Desktop
WAN Ports Qty:	2
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance:	Encryption throughput: 250 Mbps
Network / Transport Protocol:	IPSec, PPPoE, DHCP, DNS, L2TPv3

In Stock(33)

Specifications
Description
Accessories

General
Device Type:	Router - 8-port switch (integrated)
Enclosure Type:	Desktop
Connectivity Technology:	Wired
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance:	Encryption throughput: 250 Mbps
Network / Transport Protocol:	IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol:	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol:	SNMP, RMON, CLI, TR-069
Encryption Algorithm:	DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
Authentication Method:	RADIUS
Features:	Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), PoE-upgradable ports, IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
Compliant Standards:	IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM:	4 GB
Flash Memory:	4 GB
Status Indicators:	Status

Expansion / Connectivity
Interfaces:	WAN / LAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ USB 3.0: 1 x console

Power
Power Device:	External power adapter
Voltage Required:	AC 120/230 V (50 - 60 Hz)
Power Consumption Operational:	66 Watt

Software / System Requirements
OS Provided:	Cisco IOS XE Universal

Dimensions & Weight
Width:	32.3 cm
Depth:	23 cm
Height:	4.2 cm
Weight:	2.59 kg

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	65 °C
Humidity Range Operating:	5 - 95% (non-condensing)

vis mere

The Cisco C1111-8P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.

Consistent, high application performance levels
USB-based console access
