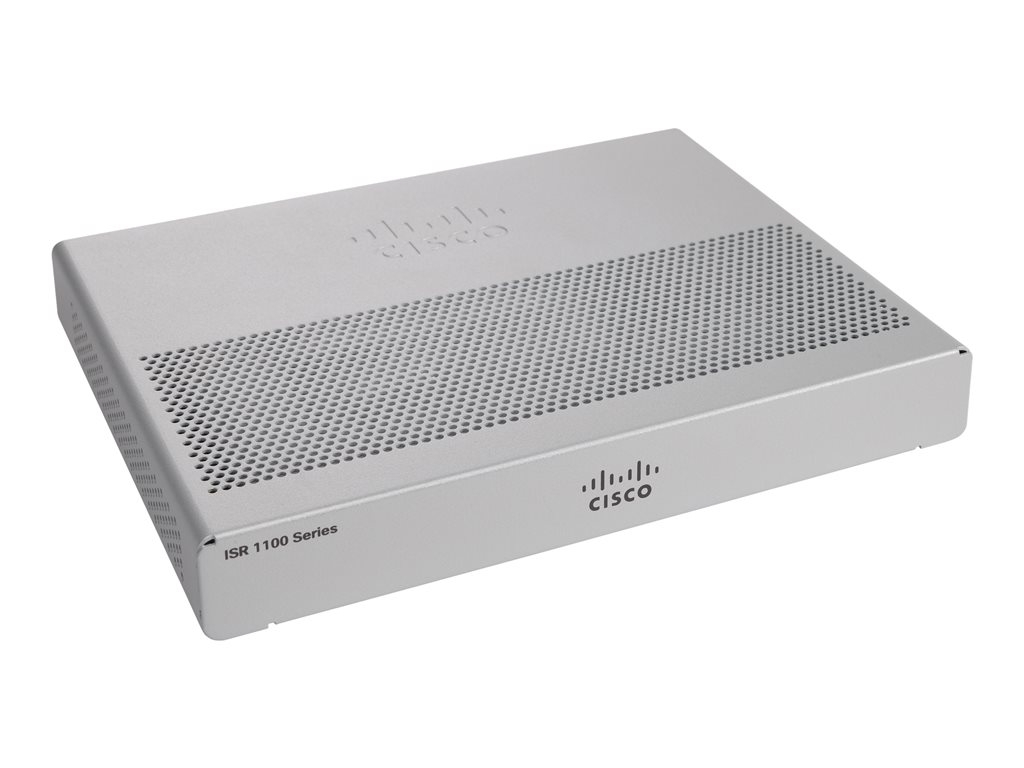

Cisco Integrated Services Router 1101 - router - rack-mountable

SKU C1101-4P
Product Description:Cisco Integrated Services Router 1101 - router - rack-mountable
Device Type:Router - 4-port switch (integrated)
Enclosure Type:Rack-mountable
WAN Ports Qty:1
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Performance:Encryption throughput: 350 Mbps
Network / Transport Protocol:IPSec, PPPoE, DHCP, DNS, L2TPv3
In Stock(12)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Router - 4-port switch (integrated)
Enclosure Type:Rack-mountable
Connectivity Technology:Wired
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Performance:Encryption throughput: 350 Mbps
Network / Transport Protocol:IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol:OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol:SNMP, RMON, CLI, TR-069
Encryption Algorithm:DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
Authentication Method:RADIUS
Features:CBWFQ, WRED, ACL support, QoS, DMVPN, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM
Compliant Standards:IEEE 802.1Q, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM:4 GB
Flash Memory:4 GB
Expansion / Connectivity
Interfaces:WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ USB 3.0: 1 x
Power
Power Device:External power adapter - 30 Watt
Voltage Required:AC 100-240 V (50/60 Hz)
Power Consumption Operational:30 Watt
Miscellaneous
Rack Mounting Kit:Optional
Dimensions & Weight
Width:19.05 cm
Depth:15.24 cm
Height:2.79 cm
Weight:1.76 kg
Manufacturer Warranty
Service & Support:Limited warranty - advance parts replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 85% (non-condensing)
vis mere
The Cisco C1101-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.
  • Perfect connectivity
  • Increased performance
  • Integrated enterprise-class security
  • Advanced wireless LAN




The technical details come from 3rd party. edgemo is not responsible for any errors.
