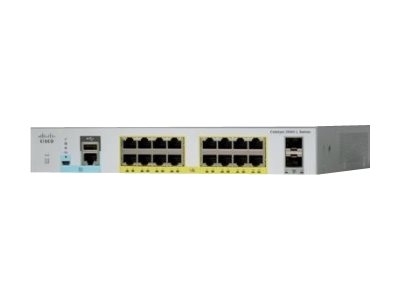

Printers & POSCisco Catalyst 2960L-16TS-LL - switch - 16 ports - Managed - rack-mountable
SKU WS-C2960L-16TS-LL
| Product Description: | Cisco Catalyst 2960L-16TS-LL - switch - 16 ports - Managed - rack-mountable |
| Device Type: | Switch - 16 ports - Managed |
| Enclosure Type: | Rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 16 x 10/100/1000 + 2 x Gigabit SFP (uplink) |
| Performance: | Switching bandwidth: 36 Gbps ¦ Forwarding bandwidth: 18 Gbps |
| Capacity: | MAC addresses: 8000 ¦ VLANs supported: 4094 ¦ Active VLANs: 64 ¦ SPAN bidirectional sessions: 1 |
- Specifications
- Description
| General | |
| Device Type: | Switch - 16 ports - Managed |
| Enclosure Type: | Desktop, rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 16 x 10/100/1000 + 2 x Gigabit SFP (uplink) |
| Performance: | Switching bandwidth: 36 Gbps ¦ Forwarding bandwidth: 18 Gbps |
| Capacity: | MAC addresses: 8000 ¦ VLANs supported: 4094 ¦ Active VLANs: 64 ¦ SPAN bidirectional sessions: 1 |
| Jumbo Frame Support: | 10240 bytes |
| Routing Protocol: | IGMP |
| Remote Management Protocol: | SNMP 3, CLI |
| Authentication Method: | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features: | Layer 2 switching, ARP support, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, RADIUS support, DAI, Cisco EnergyWise technology, UDLD, fanless, LACP, MAC Address Notification, PVRST, per-port broadcast throttling, GVRP, SNMP support, IGMP filtering, VTP, BPDU, STRG, NTP |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az |
| Processor: | ARM7: 800 MHz |
| RAM: | 512 MB |
| Flash Memory: | 256 MB |
| Status Indicators: | System, status, PoE, link/speed |
| Expansion / Connectivity | |
| Interfaces: | 16 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 2 x 1000Base-X SFP uplink |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF: | 2,416,689 hours |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300386 |
| Software / System Requirements | |
| Software Included: | Cisco IOS LAN Lite |
| Dimensions & Weight | |
| Width: | 26.8 cm |
| Depth: | 21.5 cm |
| Height: | 4.4 cm |
| Weight: | 2.06 kg |
| Environmental Parameters | |
| Min Operating Temperature: | -5 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 5 - 90% |
| Min Storage Temperature: | -25 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 95% |
Cisco Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations.
- 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Fanless operation and operational temperature up to 55°C for deployment outside the wiring closet
- Higher mean time between failure, because they have no moving mechanical parts
- Less than 11.5-inch depth fit in use cases with space limitation
- Reduced power consumption and advanced energy management features
- RJ-45 and USB console access for simplified operations
- Intuitive web UI for easy deployment and management
The technical details come from 3rd party. edgemo is not responsible for any errors.
