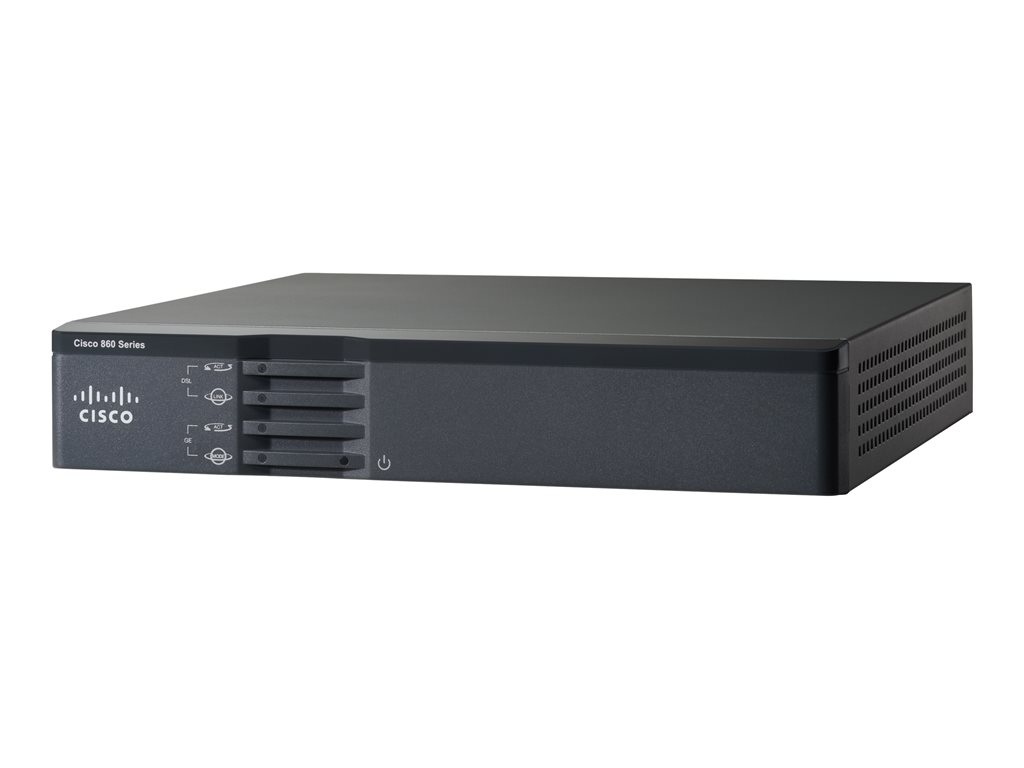

Cisco 867VAE - router - DSL modem - desktop, rack-mountable
SKU C867VAE-K9
Product Description: | Cisco 867VAE - router - DSL modem - desktop, rack-mountable |
Device Type: | Router - DSL modem - 4-port switch (integrated) |
Enclosure Type: | Desktop, rack-mountable - 1U |
Digital Signaling Protocol: | ADSL2+, VDSL2 |
WAN Ports Qty: | 2 |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Capacity: | IPSec VPN tunnels: 10 |
- Specifications
- Description
General | |
Device Type: | Router - 4-port switch (integrated) |
Enclosure Type: | Desktop, rack-mountable - 1U |
Connectivity Technology: | Wired |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Capacity: | IPSec VPN tunnels: 10 |
Network / Transport Protocol: | IPSec, PPPoE, PPPoA, DHCP, DNS |
Routing Protocol: | RIP-1, RIP-2 |
Remote Management Protocol: | SNMP 3, HTTP, HTTPS, SSH |
Features: | Firewall protection, auto-uplink (auto MDI/MDI-X), IPv6 support, LLQ, CBWFQ, WFQ, DHCP server, DNS proxy, DHCP relay, WSMA, NetFlow, DHCP client |
Compliant Standards: | IEEE 802.1Q, IEEE 802.3ah, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, FCC CFR47 Part 15, VCCI V-3 |
RAM: | 256 MB (installed) / 256 MB (max) |
Flash Memory: | 64 MB |
Line Properties | |
Framing Format: | ANSI T1.413 |
Communications | |
Type: | DSL modem |
Digital Signaling Protocol: | ADSL2+, VDSL2 |
Protocols & Specifications: | ITU G.994.1 (G.hs), ITU G.992.3 Annex A, ITU G.992.3 Annex L, ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.3 Annex B |
Expansion / Connectivity | |
Interfaces: | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ WAN: 1 x ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Power | |
Power Device: | External power adapter - 60 Watt |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Software / System Requirements | |
OS Provided: | Cisco IOS Advanced Security |
Dimensions & Weight | |
Width: | 20.9 cm |
Depth: | 19.8 cm |
Height: | 3.9 cm |
Weight: | 2.5 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 85% (non-condensing) |
An entry level member of the Cisco Integrated Services Router Generation 2 (ISR G2) family, the Cisco 867VAE Integrated Services Router offers connectivity to teleworkers and small branches.
- State of the art multi-mode DSL features and interoperability
- Four Fast Ethernet 10/100 LAN ports and 1 Gigabit Ethernet LAN port
- Fanless compact desktop form factor
- Embedded management capabilities and IPv6 support
