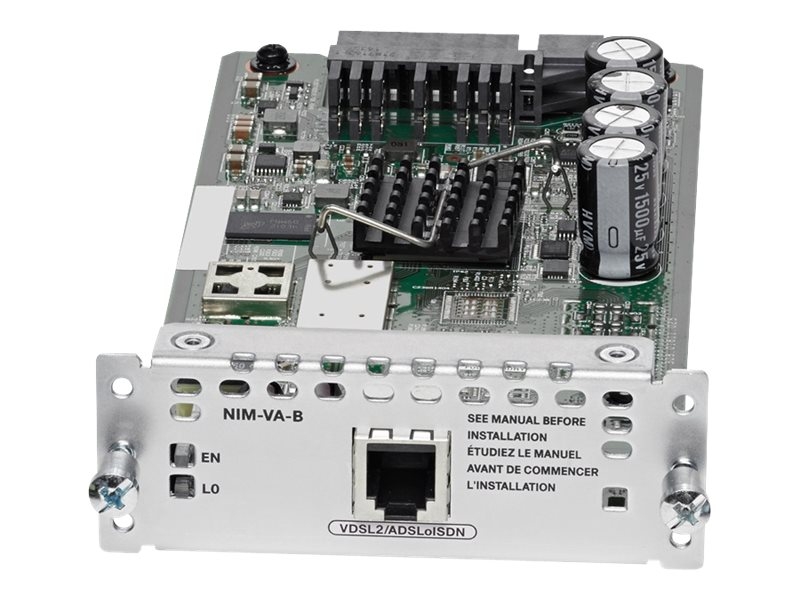

Printers & POSCisco 1-port VDSL2/ADSL2+ over ISDN with Annex B/J - DSL modem
SKU NIM-VA-B=
| Product Description: | Cisco 1-port VDSL2/ADSL2+ over ISDN with Annex B/J - DSL modem |
| Device Type: | DSL modem - Network Interface Module (NIM) |
| Form Factor: | Internal |
| Digital Signaling Protocol: | ADSL over ISDN, ADSL2, ADSL2+, VDSL2 |
| Protocols & Specifications: | ITU G.992.1 (G.DMT) Annex B, ITU G.993.2, ITU G.992.5 Annex B, ITU G.992.3 Annex B |
| Dimensions (WxDxH): | 8.89 cm x 18.39 cm x 3.18 cm |
| Weight: | 181 g |
- Specifications
- Description
| General | |
| Device Type: | DSL modem |
| Form Factor: | Internal |
| Modem | |
| Bus: | Network Interface Module (NIM) |
| Connectivity Technology: | Wired |
| Processor: | Broadcom |
| Digital Signaling Protocol: | ADSL over ISDN, ADSL2, ADSL2+, VDSL2 |
| Protocols & Specifications: | ITU G.992.1 (G.DMT) Annex B, ITU G.993.2, ITU G.992.5 Annex B, ITU G.992.3 Annex B |
| Expansion / Connectivity | |
| Interfaces: | 1 x VDSL2 - RJ-11 |
| Dimensions & Weight | |
| Width: | 8.89 cm |
| Depth: | 18.39 cm |
| Height: | 3.18 cm |
| Weight: | 181 g |
The Cisco 4000 Integrated Services Router Family Network Interface Module (NIM) supports VDSL2 and ADSL2/2+ on a single WAN interface. The solution provides a secure, cost-effective solution for customers ranging from teleworkers and small businesses to large enterprise branch offices.
The technical details come from 3rd party. edgemo is not responsible for any errors.
