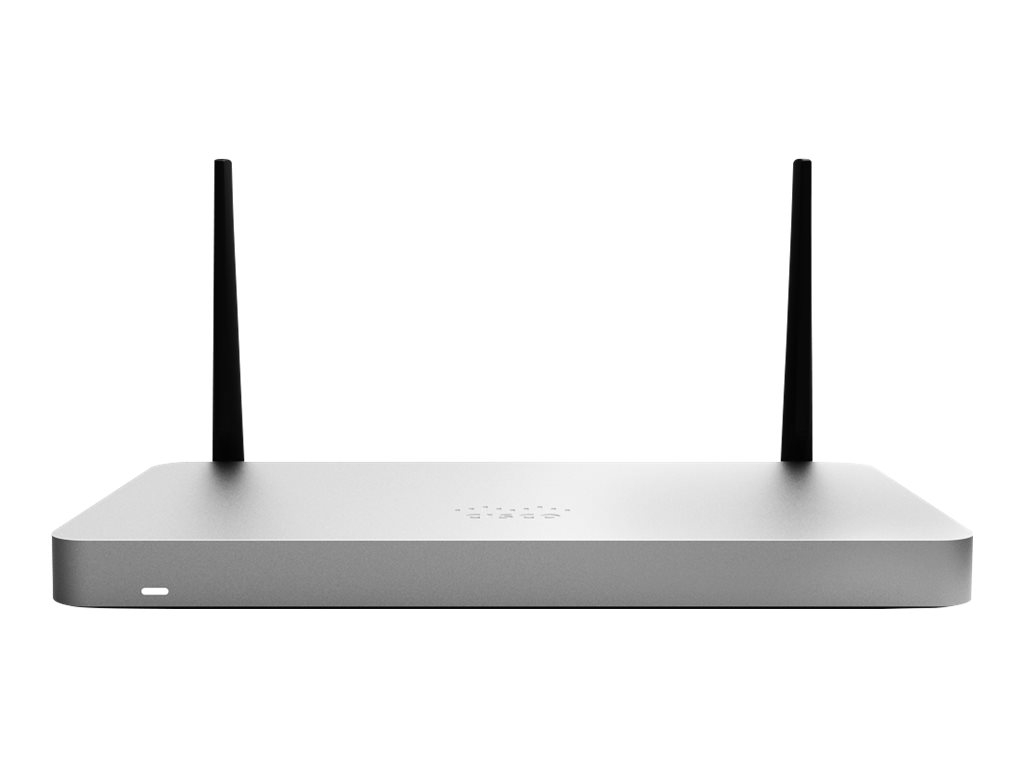

Cisco Meraki MX68CW - security appliance - Wi-Fi 5 - cloud-managed

SKU MX68CW-HW-WW
Product Description:Cisco Meraki MX68CW - security appliance - Wi-Fi 5 - cloud-managed
Device Type:Security appliance
Form Factor:Desktop
Localisation:Worldwide
Ports Qty:10
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band:2.4 GHz, 5 GHz
Not in stock
  • Specifications
  • Description
General
Device Type:Security appliance
Built-in Devices:Modem
Width:28.4 cm
Depth:17.8 cm
Height:2.7 cm
Weight:1.18 kg
Localisation:Worldwide
Networking
Form Factor:Desktop
Ports Qty:10
Connectivity Technology:Wireless, wired
Data Transfer Rate:1.3 Gbps
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Network / Transport Protocol:L2TP, IPSec, PPPoE, DHCP
Routing Protocol:Static IP routing, MPLS
Remote Management Protocol:HTTP
Cloud-Managed:Yes
Frequency Band:2.4 GHz, 5 GHz
Performance:Firewall throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Advanced security throughput: 300 Mbps
Capacity:Maximum number of users: 50 ¦ Maximum number of configured SSIDs: 4
Features:Firewall protection, DHCP support, NAT support, load balancing, layer 7 switching, VLAN support, traffic shaping, content filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, wall mountable, IPSec Virtual Private Network (VPN), Quality of Service (QoS), MPLS VPN, 3G/4G USB Dongle Support, static routing, 802.1x authentication, Link Aggregation, VPN client, IP Security (IPSec) support, DMZ support
Compliant Standards:IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2
Aerial
Antenna:External detachable
Antenna Qty:2
Communications
Mobile Communication Protocol:LTE
Expansion / Connectivity
Expansion Slots:1 SIM card
Interfaces:2 x 1000Base-T - RJ-45 (WAN) ¦ 8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A
Miscellaneous
Included Accessories:Mounting kit, SIM card ejector
Cables Included:2 x network cable
Power
Power Over Ethernet (PoE) Supported:PoE+
Power Device:External power adapter
Installed Qty:1
Max Supported Qty:1
Power Consumption Operational:89 Watt
Power Provided:100 Watt
Manufacturer Warranty
Service & Support:Limited warranty - advance hardware replacement - lifetime - response time: next day
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:5 - 95% (non-condensing)
vis mere
Lockdown your network with the Cisco Meraki MX67C cloud-managed security & SD-WAN appliance that has an integrated CAT 6 LTE modem for always-on connectivity, as well as 802.11ac Wave 2 Wi-Fi. Ideal for small retail branches or clinics, this device can routinely support up to 50 users and has a stateful firewall throughput of up to 450 Mbps. It allows a maximum of 50 simultaneous VPN sessions for absolutely secure data transfer and includes five Gigabit Ethernet interfaces so that you can connect a variety of devices to it.
Since the MX is 100% cloud managed, installation and remote management is simple. The MX has a comprehensive suite of security and network services including threat management and SD-WAN capabilities, eliminating the need for multiple appliances. Your business can use a central location to set up its retail outlets or clinics without having to travel. Template-based multi-network management allows you to quickly set up profiles and settings across thousands of devices to ensure it scales easily. Monitoring and reporting systems ensure you get email alerts that inform you of utilization metrics, and comprehensive changelogs make tracing modifications very quick.
Quickly secure your network with the intelligent WAN that includes policy-based routing and dynamic VPN path selection, and it has a variety of application-layer protocols and systems that ensure only authorized visitors get in. Threat management solutions include content filtering, intrusion prevention using a PCI-compliant IPS sensor, identity-based policies, and Advanced Malware Protection from Cisco for maximum protection. An enhanced CPU and plenty of memory ensure this Cisco Meraki cloud-managed security & SD-WAN appliance can process all the information flowing through it rapidly.
The MX68CW also includes 12 ports, including 2 GbE RJ45 WAN interfaces, 10 GbE RJ45 LAN interfaces, and 2 PoE+ for downstream access points and switches.
  • WAN Link Balancing
  • Automatic WAN Failover
  • L3/L7 Stateful Firewall
  • Geo based firewall rules
  • Configurable VLANs/DHCP support
  • Static Routing
  • Client VPN endpoint
  • Active Directory integration
  • Content Filtering
  • IDS/IPS protection
  • Custom Traffic Shaping
  • Historical Client Usage statistics
  • Remote Packet Capture tools




The technical details come from 3rd party. edgemo is not responsible for any errors.
