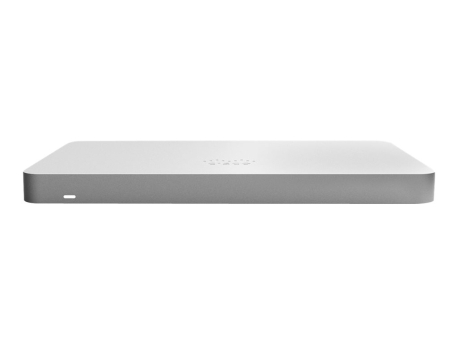

Printers & POSCisco Meraki MX68 - security appliance
SKU MX68-HW
| Product Description: | Cisco Meraki MX68 - security appliance |
| Device Type: | Security appliance |
| Form Factor: | Desktop |
| Ports Qty: | 10 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance: | Firewall throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Advanced security throughput: 300 Mbps |
| Capacity: | Maximum number of users: 50 |
- Specifications
- Description
| General | |
| Device Type: | Security appliance |
| Width: | 28.4 cm |
| Depth: | 14.8 cm |
| Height: | 2.7 cm |
| Weight: | 1.12 kg |
| Networking | |
| Form Factor: | Desktop |
| Ports Qty: | 10 |
| Connectivity Technology: | Wired, wireless |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol: | IPSec, DHCP, L2TP, PPPoE |
| Routing Protocol: | Static IP routing, MPLS |
| Performance: | Firewall throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Advanced security throughput: 300 Mbps |
| Capacity: | Maximum number of users: 50 |
| Features: | 3G/4G USB Dongle Support, NAT support, firewall protection, VLAN support, wall mountable, firmware upgradable, Link Aggregation, DMZ support, DHCP support, VPN client, content filtering, Intrusion Prevention System (IPS), Intrusion Detection System (IDS), IP Security (IPSec) support, IPSec Virtual Private Network (VPN), layer 7 switching, Quality of Service (QoS), load balancing, MPLS VPN, static routing, traffic shaping, 802.1x authentication |
| Expansion / Connectivity | |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Power | |
| Power Over Ethernet (PoE) Supported: | PoE+ |
| Power Device: | External power adapter |
| Installed Qty: | 1 |
| Max Supported Qty: | 1 |
| Power Provided: | 100 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - advance hardware replacement - lifetime - response time: next day |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
Lockdown your network with the Cisco Meraki MX68 cloud-managed security & SD-WAN appliance. Ideal for small retail branches or clinics, this device can routinely support up to 50 users and has a stateful firewall throughput of up to 450 Mbps. It allows a maximum of 50 simultaneous VPN sessions for absolutely secure data transfer and includes five Gigabit Ethernet interfaces so that you can connect a variety of devices to it.
Since the MX is 100% cloud managed, installation and remote management is simple. The MX has a comprehensive suite of security and network services including threat management and SD-WAN capabilities, eliminating the need for multiple appliances. Your business can use a central location to set up its retail outlets or clinics without having to travel. Template-based multi-network management allows you to quickly set up profiles and settings across thousands of devices to ensure it scales easily. Monitoring and reporting systems ensure you get email alerts that inform you of utilization metrics, and comprehensive changelogs make tracing modifications very quick.
Quickly secure your network with the intelligent WAN that includes policy-based routing and dynamic VPN path selection, and it has a variety of application-layer protocols and systems that ensure only authorized visitors get in. Threat management solutions include content filtering, intrusion prevention using a PCI-compliant IPS sensor, identity-based policies, and Advanced Malware Protection from Cisco for maximum protection. An enhanced CPU and plenty of memory ensure this Cisco Meraki cloud-managed security & SD-WAN appliance can process all the information flowing through it rapidly.
The MX68 also includes 12 ports, including 2 GbE RJ45 WAN interfaces, 10 GbE RJ45 LAN interfaces, and 2 PoE+ for downstream access points and switches.
Since the MX is 100% cloud managed, installation and remote management is simple. The MX has a comprehensive suite of security and network services including threat management and SD-WAN capabilities, eliminating the need for multiple appliances. Your business can use a central location to set up its retail outlets or clinics without having to travel. Template-based multi-network management allows you to quickly set up profiles and settings across thousands of devices to ensure it scales easily. Monitoring and reporting systems ensure you get email alerts that inform you of utilization metrics, and comprehensive changelogs make tracing modifications very quick.
Quickly secure your network with the intelligent WAN that includes policy-based routing and dynamic VPN path selection, and it has a variety of application-layer protocols and systems that ensure only authorized visitors get in. Threat management solutions include content filtering, intrusion prevention using a PCI-compliant IPS sensor, identity-based policies, and Advanced Malware Protection from Cisco for maximum protection. An enhanced CPU and plenty of memory ensure this Cisco Meraki cloud-managed security & SD-WAN appliance can process all the information flowing through it rapidly.
The MX68 also includes 12 ports, including 2 GbE RJ45 WAN interfaces, 10 GbE RJ45 LAN interfaces, and 2 PoE+ for downstream access points and switches.
- Supports up to 50 users with high-speed wired and wireless connectivity
- Advanced security features including IDS, IPS, and firewall protection
- 450 Mbps firewall throughput for efficient network performance
- Power over Ethernet (PoE+) for easy installation of network devices
- Supports a wide range of data link protocols and networking features
