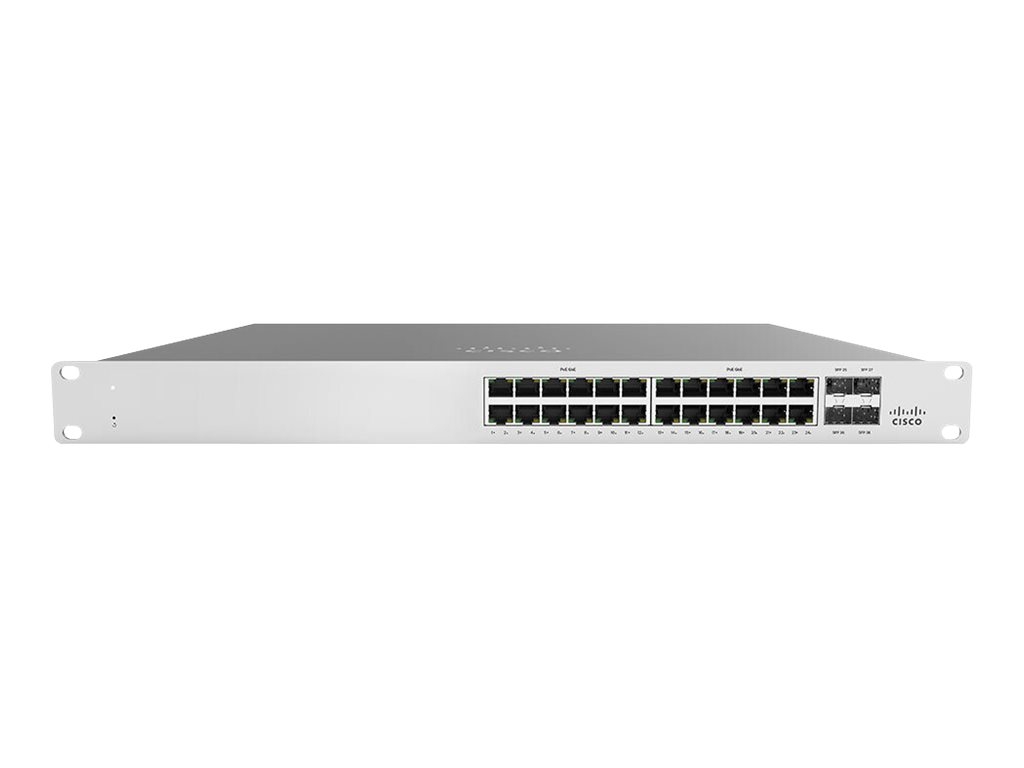

Cisco Meraki Cloud Managed MS120-24P - switch - 24 ports - Managed - rack-mountable
SKU MS120-24P-HW
Product Description: | Cisco Meraki Cloud Managed MS120-24P - switch - 24 ports - Managed - rack-mountable |
Device Type: | Switch - 24 ports - Managed |
Enclosure Type: | Rack-mountable 1U |
Subtype: | Gigabit Ethernet |
Ports: | 24 x 10/100/1000 + 4 x Gigabit SFP |
Power Over Ethernet (PoE): | PoE |
PoE Budget: | 370 W |
- Specifications
- Description
General | |
Device Type: | Switch - 24 ports - Managed |
Enclosure Type: | Rack-mountable, desktop 1U |
Subtype: | Gigabit Ethernet |
Ports: | 24 x 10/100/1000 + 4 x Gigabit SFP |
Power Over Ethernet (PoE): | PoE |
PoE Budget: | 370 W |
Performance: | Switching capacity: 56 Gbps ¦ Forwarding rate: 41.67 Mpps |
Capacity: | VLANs supported: 4094 ¦ MAC forwarding entries: 16000 |
Jumbo Frame Support: | 9578 bytes |
Remote Management Protocol: | SNMP |
Authentication Method: | RADIUS |
Features: | Auto-uplink (auto MDI/MDI-X), auto-negotiation, crossover detection, ZTP, DHCP client, Syslog support, firmware upgradable, E-mail alert, SMS alert, QoS, DSCP to CoS Mutation, VLAN support, RSTP support, STP support, Broadcast Storm Control, Cisco Discovery Protocol, port mirroring, IGMP snooping, RBAC, SSO support, DHCP snooping, STP BPDU Guard, STP Root Guard, ACL support, flow control, fanless |
Compliant Standards: | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3af |
Expansion / Connectivity | |
Interfaces: | 24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T SFP |
Power | |
Power Device: | Internal power supply |
Voltage Required: | AC 120/230 V (47 - 63 Hz) |
Miscellaneous | |
Rack Mounting Kit: | Included |
MTBF: | 1,700,716 hours |
Compliant Standards: | CSA, FCC, IC, RCM, RoHS |
Dimensions & Weight | |
Width: | 44 cm |
Depth: | 25 cm |
Height: | 4.4 cm |
Weight: | 3.71 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Cisco Meraki MS120-24LP switches provide Layer 2 access switching ideal for branch and campus deployments.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.
Cloud management has a number of benefits that make it easier to build networks large and small: True zero-touch device provisioning; Virtual Stacking: manage up to thousands of ports from a single pane of glass; Application-layer visibility with automatic operating system, client, and hostname fingerprinting; Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues; Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configurations changes; Role-based administration and automatic, scheduled firmware upgrades over the cloud; Regular feature updates and enhancements delivered on demand from the Meraki cloud.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.
Cloud management has a number of benefits that make it easier to build networks large and small: True zero-touch device provisioning; Virtual Stacking: manage up to thousands of ports from a single pane of glass; Application-layer visibility with automatic operating system, client, and hostname fingerprinting; Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues; Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configurations changes; Role-based administration and automatic, scheduled firmware upgrades over the cloud; Regular feature updates and enhancements delivered on demand from the Meraki cloud.
- Centrally managed from the cloud
- Layer 7 application and client visibility
- QoS for voice and video
- Enterprise security
The technical details come from 3rd party. edgemo is not responsible for any errors.
