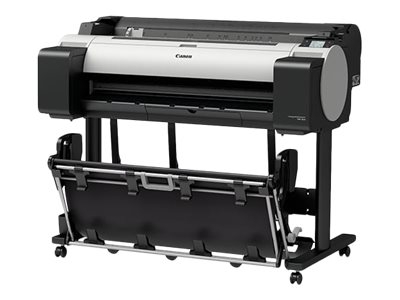

Canon imagePROGRAF TM-305 - large-format printer - colour - ink-jet

SKU 3056C003
Product Description:Canon imagePROGRAF TM-305 - large-format printer - colour - ink-jet
Printer Type:36" large-format printer - ink-jet - colour
Weight:60 kg
Ink Palette Supported (Colours):5-ink - cyan, magenta, yellow, black, matte black
Max Media Size:Roll (91.4 cm)
Min Media Size (Custom):203.2 mm
Max Media Size (Custom):917 mm
02-04-2024
  • Specifications
  • Description
General
Printer Type:36" large-format printer - ink-jet - colour
Printer
Ink Palette Supported (Colours):5-ink - cyan, magenta, yellow, black, matte black
Nozzle Configuration:15360 nozzles
Minimum Ink Droplet Size:5 pl
Ink Cartridge Configuration:5 individual ink tanks
Ink Type:Canon LUCIA TD pigment ink
Built-in Devices:3 inch LCD display
Preview Screen Size:3"
Connectivity Technology:Wireless
Interface:USB 2.0, Gigabit LAN, Wi-Fi(n), direct print USB
AirPrint Enabled:Yes
Max Resolution (B&W):2400 x 1200 dpi
Max Resolution (Colour):2400 x 1200 dpi
Language Simulation:HP RTL, HP GL/2, PDF, SG Raster (Swift Graphic Raster), JPEG
Printer Features:Borderless printing
RAM
RAM Installed (Max):128 GB
Storage
Hard Drive:500 GB
Media Handling
Media Type:Plain paper
Max Media Size:Roll (91.4 cm)
Min Media Size (Custom):203.2 mm
Max Media Size (Custom):917 mm
Media Sizes:Roll A2 (42 cm), Roll (25.4 cm), Roll (40.6 cm), Roll (43.2 cm), Roll (30.5 cm), Roll (30 cm), Roll (91.4 cm), Roll (76.2 cm), Roll (32.9 cm), Roll (35.6 cm), Roll A1 (59.4 cm), Roll (61 cm), Roll A0, Roll JIS B2 (51.5 cm), Roll (72.8 cm), Roll A3 (29.7 cm), Roll JIS B4 (25.7 cm), Roll (50.8 cm), Roll (20.32 cm), Roll (50 cm), Roll (60 cm), Roll (80 cm)
Max Printing Length:18 m
Media Thickness Range:0.07 mm - 0.8 mm
Networking
Networking:Print server
Expansion / Connectivity
Connections:1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 ¦ 1 x USB host - 4 pin USB Type A
Miscellaneous
Included Accessories:Stand, 3-inch spindle adapter kit
Consumables Included:1 x ink tank (pigmented matte black) - 130 ml ¦ 1 x ink tank (pigmented black) - 90 ml ¦ 1 x ink tank (pigmented cyan) - 90 ml ¦ 1 x ink tank (pigmented magenta) - 90 ml ¦ 1 x ink tank (pigmented yellow) - 90 ml ¦ 1 x printhead
Compliant Standards:TUV, CB, ISO 7779, CE/EMC, IEEE 802.3
Power
Power Device:Power supply - internal
Frequency Required:50/60 Hz
Power Consumption Operational:69 Watt
Power Consumption Sleep:3.6 Watt
Software / System Requirements
Software Included:Drivers & Utilities, PosterArtist Lite, Canon Quick Toolbox, Canon Print plug-in for Microsoft Office
OS Required:Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8.1 / 10 (64 bit), Microsoft Windows Server 2016 (64-bit), Microsoft Windows 7 / 8.1 / 10 (32 bit), Apple macOS 10.13, Apple MacOS X 10.10.5 - 10.11
Environmental Parameters
Min Operating Temperature:15 °C
Max Operating Temperature:30 °C
Humidity Range Operating:10 - 80% (non-condensing)
Sound Emission (Operating):44 dBA
Dimensions & Weight
Width:128.9 cm
Depth:75.7 cm
Height:106 cm
Weight:60 kg
Dimensions & Weight (Shipping)
Width (Shipping):146.2 cm
Depth (Shipping):91.3 cm
Height (Shipping):96.1 cm
Weight (Shipping):105 kg
vis mere
Get high-precision lines, crisp text and vivid color even on plain paper with the 5-color pigment Lucia TD ink system. Image processing controls ink bleeding, while enhanced water resistance makes media easier to handle, indoors and out.
  • Fast printing
  • Compact design
  • No distraction




The technical details come from 3rd party. edgemo is not responsible for any errors.
