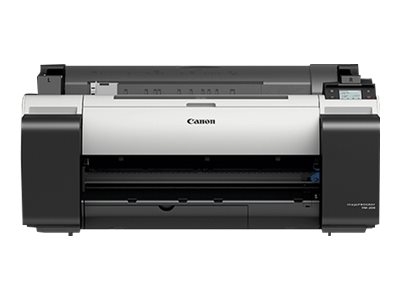

Canon imagePROGRAF TM-200 - large-format printer - colour - ink-jet
SKU 3062C003
Product Description: | Canon imagePROGRAF TM-200 - large-format printer - colour - ink-jet |
Printer Type: | 24" large-format printer - ink-jet - colour |
Weight: | 52 kg |
Ink Palette Supported (Colours): | 5-ink - cyan, magenta, yellow, black, matte black |
Max Media Size: | Roll A1 (61.0 cm) |
Min Media Size (Custom): | 203.2 mm |
Max Media Size (Custom): | 610 mm |
- Specifications
- Description
General | |
Printer Type: | 24" large-format printer - ink-jet - colour |
Printer | |
Ink Palette Supported (Colours): | 5-ink - cyan, magenta, yellow, black, matte black |
Nozzle Configuration: | 15360 nozzles |
Minimum Ink Droplet Size: | 5 pl |
Ink Cartridge Configuration: | 5 individual ink tanks |
Ink Type: | Canon LUCIA TD pigment ink |
Built-in Devices: | 3 inch LCD display |
Preview Screen Size: | 3" |
Connectivity Technology: | Wireless |
Interface: | USB 2.0, Gigabit LAN, Wi-Fi(n) |
AirPrint Enabled: | Yes |
Max Resolution (Colour): | 2400 x 1200 dpi |
Language Simulation: | HP RTL, HP GL/2, SG Raster (Swift Graphic Raster), JPEG |
Printer Features: | Borderless printing |
RAM | |
RAM Installed (Max): | 2 GB |
Media Handling | |
Media Type: | Plain paper |
Max Media Size: | Roll A1 (61.0 cm) |
Min Media Size (Custom): | 203.2 mm |
Max Media Size (Custom): | 610 mm |
Media Sizes: | Roll A2 (42 cm), Roll (25.4 cm), Roll (40.6 cm), Roll (43.2 cm), Roll (30.5 cm), Roll (30 cm), Roll (32.9 cm), Roll (35.6 cm), Roll A1 (59.4 cm), Roll (61 cm), Roll JIS B2 (51.5 cm), Roll A3 (29.7 cm), Roll JIS B4 (25.7 cm), Roll (50.8 cm), Roll (20.32 cm), Roll (50 cm), Roll (60 cm) |
Max Printing Length: | 18 m |
Media Thickness Range: | 0.07 mm - 0.8 mm |
Networking | |
Networking: | Print server |
Security Protocols & Features: | 802.1x |
Expansion / Connectivity | |
Connections: | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 |
Miscellaneous | |
Included Accessories: | 3-inch spindle adapter kit |
Consumables Included: | 1 x ink tank (pigmented matte black) - 130 ml ¦ 1 x ink tank (pigmented black) - 90 ml ¦ 1 x ink tank (pigmented cyan) - 90 ml ¦ 1 x ink tank (pigmented magenta) - 90 ml ¦ 1 x ink tank (pigmented yellow) - 90 ml ¦ 1 x printhead |
Compliant Standards: | TUV, CB, ISO 7779, CE/EMC, IEEE 802.3 |
Power | |
Power Device: | Power supply - internal |
Frequency Required: | 50/60 Hz |
Power Consumption Operational: | 69 Watt |
Power Consumption Sleep: | 3.6 Watt |
Software / System Requirements | |
Software Included: | Drivers & Utilities, PosterArtist Lite, Canon Quick Toolbox, Canon Print plug-in for Microsoft Office |
OS Required: | Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8.1 / 10 (64 bit), Microsoft Windows Server 2016 (64-bit), Microsoft Windows 7 / 8.1 / 10 (32 bit), Apple macOS 10.13, Apple MacOS X 10.10.5 - 10.11 |
Environmental Parameters | |
Min Operating Temperature: | 15 °C |
Max Operating Temperature: | 30 °C |
Humidity Range Operating: | 10 - 80% (non-condensing) |
Sound Emission (Operating): | 44 dBA |
Dimensions & Weight | |
Width: | 98.2 cm |
Depth: | 75.7 cm |
Height: | 106 cm |
Weight: | 52 kg |
Dimensions & Weight (Shipping) | |
Width (Shipping): | 115.2 cm |
Depth (Shipping): | 91.3 cm |
Height (Shipping): | 70.5 cm |
Weight (Shipping): | 69 kg |
With this Canob printer less installation space is needed, thanks to the integrated design with full front usability. Print noise is reduced by using dampened fans, fewer vibrations and streamlined cutting. Exceptional print quality for CAD and poster printing from 5-color, full pigment Lucia TD ink.
- Integrated design
- Print quietly
- Vibrant color
The technical details come from 3rd party. edgemo is not responsible for any errors.
