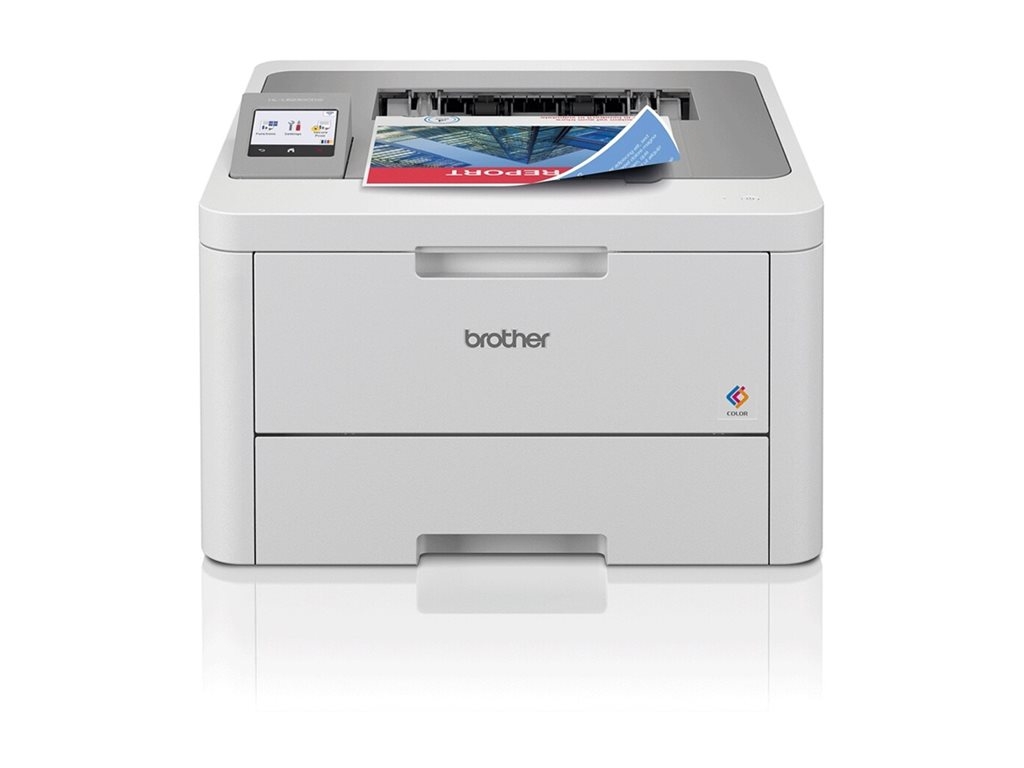

Brother HL-L8230CDW - printer - colour - LED
SKU HLL8230CDWRE1
Product Description: | Brother HL-L8230CDW - printer - colour - LED |
Printer Type: | Workgroup printer - LED - colour |
Weight: | 16.7 kg |
Media Size Class: | A4/Legal |
Max Media Size: | Legal (216 x 356 mm), A4 (210 x 297 mm) |
Min Media Size (Custom): | 76.2 mm x 116 mm |
Max Media Size (Custom): | 216 mm x 355.6 mm |
- Specifications
- Description
General | |
Printer Type: | Workgroup printer - LED - colour |
Printer | |
Print Speed: | Up to 18 ppm - B/W - A4 (210 x 297 mm) ¦ Up to 18 ppm - colour - A4 (210 x 297 mm) ¦ Up to 12 ipm - B/W duplex - A4 (210 x 297 mm) ¦ Up to 12 ipm - colour duplex - A4 (210 x 297 mm) |

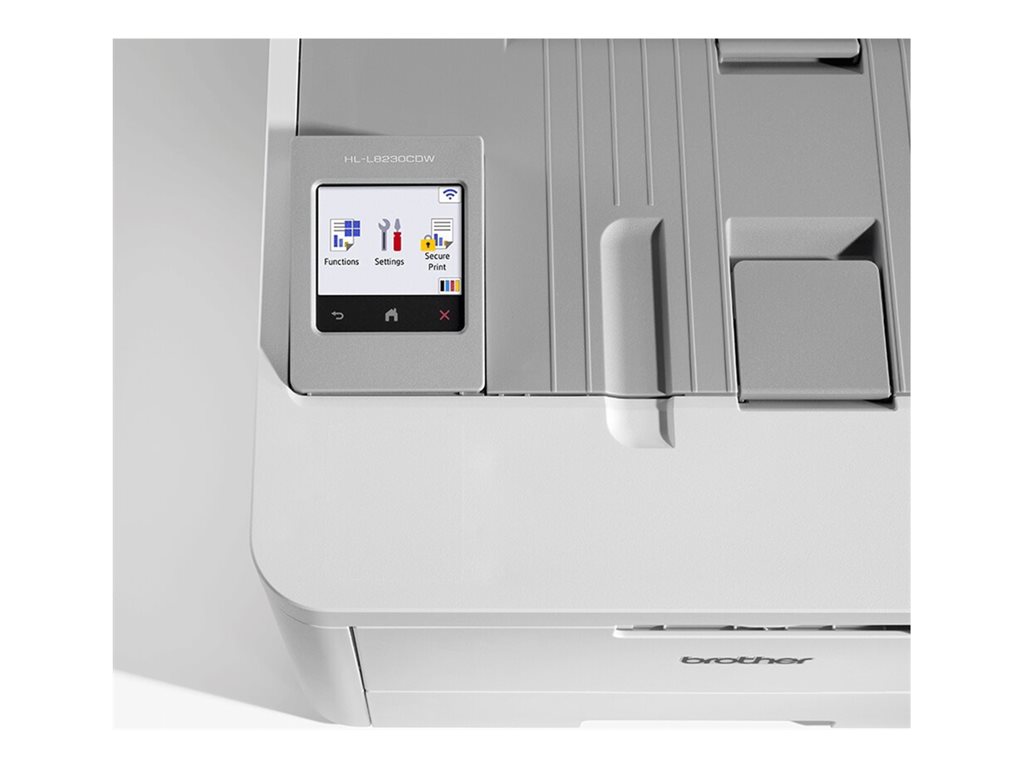

Built-in Devices: | Touch screen |
Connectivity Technology: | Wireless |
Interface: | USB 2.0, Wi-Fi(n) |
AirPrint Enabled: | Yes |
Max Resolution (B&W): | 600 x 600 dpi |
Max Resolution (Colour): | 600 x 600 dpi |
Max Resolution Class (B&W): | 600 x 600 dpi |
Max Resolution Class (Colour): | 600 x 600 dpi |
Automatic Duplexing: | Yes |
First Print Out Time B/W: | 12.5 sec |
First Print Out Time Colour: | 12.5 sec |
Language Simulation: | PCL 5E, PCL 5C, PCL 6, PCL XL 3.0, BR-Script3, PDF 1.7 |
Fonts Included: | 73 x scalable PCL ¦ 12 x bitmapped PCL |
Barcodes: | Codabar, Code 128, Code 39, Code 93, EAN-128, EAN-13, EAN-8, FIM, GS1 DataBar, Interleaved 2 of 5, ISBN, MSI, Postnet, UPC-A, UPC-E, US Postnet |

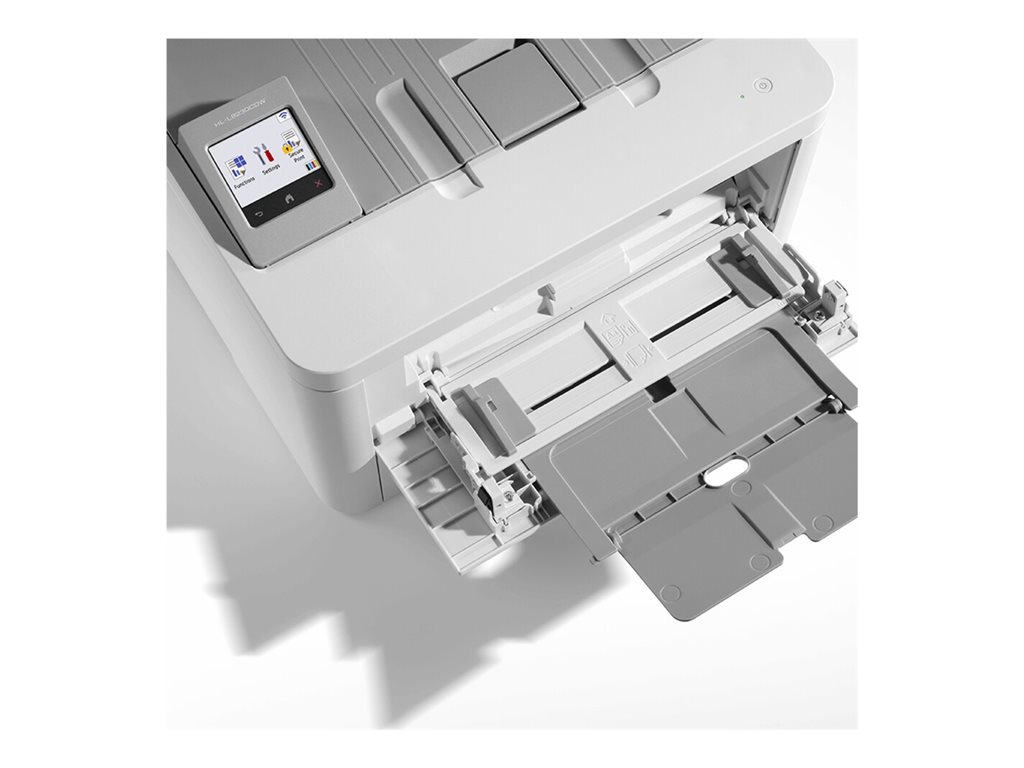

Media Handling: | 250-sheet input tray, 30-sheet multipurpose tray |
RAM | |
RAM Installed (Max): | 512 MB |
Media Handling | |
Media Type: | Plain paper, thick paper, thin paper, recycled paper, bond paper, labels, envelopes, glossy paper |
Media Size Class: | A4/Legal |
Max Media Size: | Legal (216 x 356 mm), A4 (210 x 297 mm) |
Min Media Size (Custom): | 76.2 mm x 116 mm |
Max Media Size (Custom): | 216 mm x 355.6 mm |
Media Sizes: | A4 (210 x 297 mm), ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), JIS B5 (182 x 257 mm), B5 (190 x 250 mm), A5 (148 x 210 mm), JIS B6 (128 x 182 mm), A6 (105 x 148 mm), Executive (184 x 267 mm), Folio (203 x 330 mm), 76.2 x 116 mm, 216 x 355.6 mm |
Envelope Sizes: | International DL (110 x 220 mm), Com-10 (105 x 241 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm) |
Media Weight: | 60 g/m² - 163 g/m² |
Total Media Capacity: | 250 sheets |
Media Feeders: | Input tray: 1 - 250 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 163 g/m² ¦ Bypass tray: 1 - 30 sheets - 216 x 355.6 mm weight: 60 g/m² - 163 g/m² ¦ Output tray: 1 - 150 sheets |
Output Trays Capacity: | 150 sheets |
Duty Cycle | |
Recommended Monthly Volume: | Up to 4000 pages |
Networking | |
Networking: | Print server |
Remote Management Protocol: | SNMP 3, HTTP, IPP, SMTP |
Security Protocols & Features: | 802.1x, active directory, setting lock, automatic intrusion detection, digitally-signed firmware, IP filtering, port-based network access control, restrict network protocols, secure function lock v3, store print log, syslog reporting, Secure Print, Wi-Fi Direct, WEP, WPA-PSK, WPA2-PSK, AES, WPA3-SAE, SMTP, SSL, TLS, SNMP 3, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS, Kerberos, IPsec, TKIP |
Expansion / Connectivity | |
Connections: | 1 x USB 2.0 |
Miscellaneous | |
Consumables Included: | 1 x toner cartridge (black) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (cyan) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (magenta) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (yellow) - up to 1000 pages ISO/IEC 19798 ¦ 1 x drum - up to 30000 pages 3 pages per job - Brother DR248CL ¦ 1 x transmission belt - up to 60000 pages 3 pages per job - Brother BU229CL ¦ 1 x waste toner collector - up to 50000 pages 5 pages per job - Brother WT229CL |
Power | |
Power Device: | Power supply - internal |
Voltage Required: | AC 220-240 V |
Frequency Required: | 50/60 Hz |
Power Consumption Operational: | 560 Watt |
Power Consumption Stand by: | 31 Watt |
Power Consumption Sleep: | 5.5 Watt |
Software / System Requirements | |
OS Required: | Windows 11, Apple MacOS, Linux, Google Chrome OS |
Environmental Standards | |
Blue Angel: | Yes |
ENERGY STAR: | Yes |
Nordic Swan Ecolabel: | Yes |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years ¦ France: limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 32.5 °C |
Humidity Range Operating: | 20 - 80% |
Sound Emission (Operating): | 48 dBA |
Sound Emission (Quiet Mode): | 43 dBA |
Dimensions & Weight | |
Width: | 39.9 cm |
Depth: | 44.6 cm |
Height: | 27.4 cm |
Weight: | 16.7 kg |
Dimensions & Weight (Shipping) | |
Width (Shipping): | 48.8 cm |
Depth (Shipping): | 53.5 cm |
Height (Shipping): | 37 cm |
Weight (Shipping): | 19.7 kg |
The Brother HL-L8230CDW color printer is designed to meet the demands of modern work environments, offering high-quality printing capabilities and efficient operation. With its robust connectivity options, including USB 2.0, Wi-Fi(n), and comprehensive mobile printing support, this printer ensures seamless integration into any network. Security is a priority, featuring advanced protocols to safeguard sensitive data. The printer's versatility extends to its media handling, accommodating a variety of sizes and types, alongside automatic duplexing for cost-effective, two-sided printing. High-resolution outputs of 600 x 600 DPI for both color and black and white prints ensure professional-quality documents. Moreover, its commitment to environmental sustainability is evidenced by multiple eco-friendly certifications, making it an ideal choice for organizations looking to reduce their ecological impact while maintaining high productivity.
- Wireless and wired connectivity for flexible installation options
- Advanced security features to protect sensitive information
- Supports a wide range of media types and sizes for versatile printing tasks
- Automatic duplexing for efficient, double-sided printing
- Eco-friendly certifications, including ENERGY STAR and Blue Angel
The technical details come from 3rd party. edgemo is not responsible for any errors.
