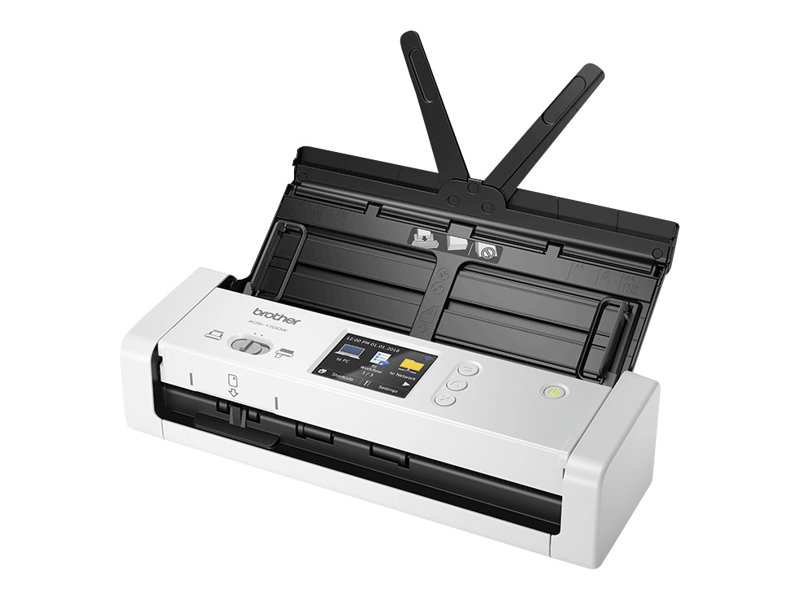

Brother ADS-1700W - document scanner - portable - USB 3.0, Wi-Fi(n), USB 2.0 (Host)
SKU ADS1700WTC1
Product Description: | Brother ADS-1700W - document scanner - portable - USB 3.0, Wi-Fi(n), USB 2.0 (Host) |
Device Type: | Document scanner - portable |
Interface Type: | USB 3.0, Wi-Fi(n), USB 2.0 (Host) |
Scanning Sensor Type: | Dual CIS |
Additional Functions: | Scan to smart devices, scan to USB, scan to FTP, scan to file, scan to email, scan to OCR, scan to image |
Max Supported Document Size: | 215.9 x 863 mm |
Input Type: | Colour |
- Specifications
- Description
General | |
Type: | Document scanner - portable |
Interface Type: | USB 3.0, Wi-Fi(n), USB 2.0 (Host) |
Additional Functions: | Scan to smart devices, scan to USB, scan to FTP, scan to file, scan to email, scan to OCR, scan to image |
Max Supported Document Size: | 215.9 x 863 mm |
Scanner | |
Input Type: | Colour |
Grayscale Depth: | 8-bit (256 colours) |
Colour Depth: | 48-bit colour |
Colour Depth (External): | 24-bit (16.7 million colours) |
Optical Resolution: | 600 dpi x 600 dpi |
Interpolated Resolution: | 1200 dpi x 1200 dpi |
Scan Mode: | Single-pass |
Automatic Duplexing: | Yes |
Scanning Sensor Type: | Dual CIS |
Max Document Scan Speed B/W: | 25 ppm |
Max Document Scan Speed Colour: | 25 ppm |
Duty Cycle: | 1000 scans per day |
Scanner Speed Details: | 25 ppm - black & white - A4 ¦ 25 ppm - colour - A4 ¦ 50 ipm - duplex - black & white - A4 ¦ 50 ipm - duplex - colour - A4 |
Scanner Features: | 7.1 cm touch screen LCD display |
Compliant Standards: | TWAIN, WIA, SANE, ICA |
Media Handling | |
Max Document Size: | 215.9 mm x 863 mm |
Supported Document Type: | Plain paper, plastic card, receipts |
Document Feeder Type: | Automatic |
Document Storage Capacity: | 20 sheets |
Expansion / Connectivity | |
Interfaces Details: | USB 2.0 (Host) - Type A ¦ USB 3.0 - Micro-B |
Environmental Standards | |
ENERGY STAR Certified: | Yes |
Power | |
Power Device: | External power adapter |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Consumption Operational (Standby): | 9 Watt |
Power Consumption Stand by: | 4.5 Watt |
Power Consumption Sleep: | 1.6 Watt |
Software / System Requirements | |
Software Included: | Nuance Power PDF, Nuance PaperPort 14 SE |
OS Required: | Linux, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows Server 2012 R2, Windows 10 (32/64 bits), Microsoft Windows Server 2016, Apple macOS 10.12.x, Apple macOS 10.13.x, Apple MacOS X 10.11.6 |
Dimensions & Weight | |
Width: | 30 cm |
Depth: | 10.3 cm |
Height: | 8.3 cm |
Weight: | 1.41 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 38 cm |
Shipping Depth: | 15.7 cm |
Shipping Height: | 20 cm |
Shipping Weight: | 1.9 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Sound Emission: | 50 dBA |
The Brother ADS-1700W wireless desktop scanner is ideally suited for small office/home office professionals with its compact design and simple workflow applications. The ADS-1700W offers a single-pass, duplex, fast color scan speed, an auto document feeder and wireless scanning to PC, mobile, cloud services and network destinations.
- Compatible with the way you work
- Simple and easy-to-use
- Fast scan speeds in a compact design
- Handles a variety of documents automatically
- Connect your way
- Easy-to-use and saves time
- Compatible with the way you work
- Versatile scanning
- Optimizes images and text for storage/classification
- Do more with bundled software
The technical details come from 3rd party. edgemo is not responsible for any errors.
