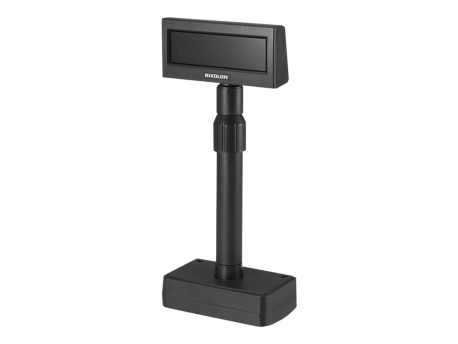

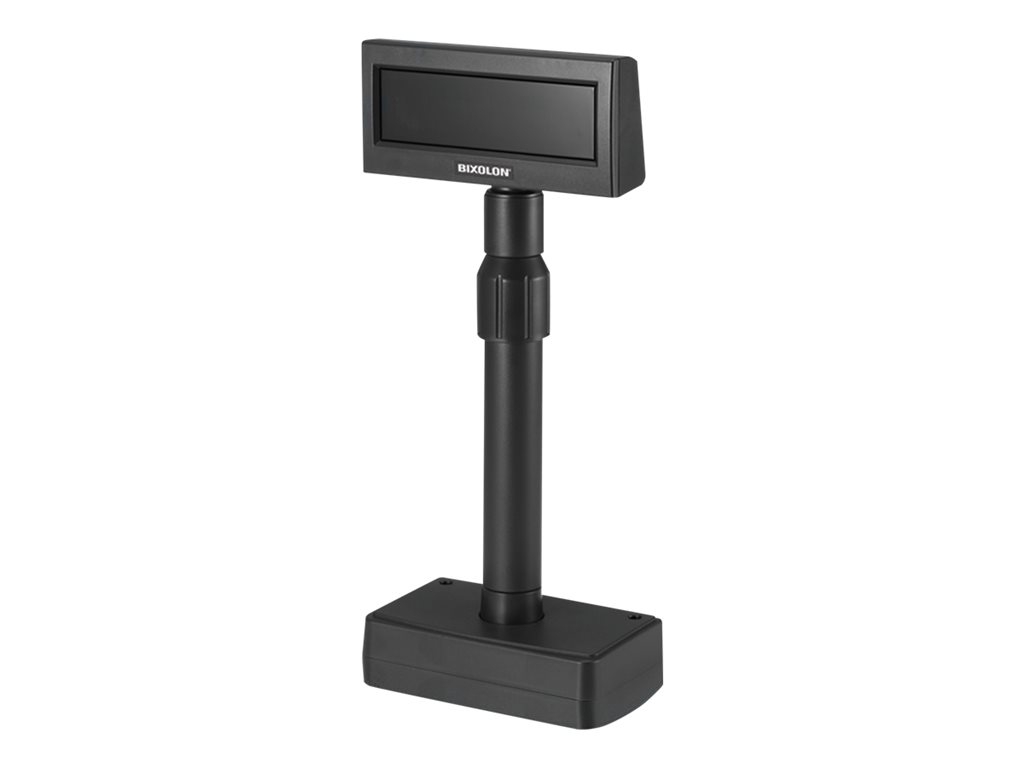

BIXOLON BCD-2000 - customer display

SKU BCD-2000DSG/BEXK
Product Description:BIXOLON BCD-2000 - customer display
Device Type:Customer display
Form Factor:Desktop/pole
Character Resolution:4 lines x 30 characters
Brightness:100 cd/m²
Command Set:ESC/POS, UTC, CD5220, UTC Enhance, PD6000
Input Connectors:RS-232
In Stock(2)
Login for price
  • Specifications
  • Description
  • Accessories
General
Display Type:Customer display / STN passive matrix
Form Factor:Desktop/pole
Character Resolution:4 lines x 30 characters
Character Type:95 alphanumeric characters, 6 international characters
Character Font:8 x 16, 9 x 17
Character Height:8.48 mm
Character Width:4.24 mm
Brightness:100 cd/m²
Command Set:ESC/POS, UTC, CD5220, UTC Enhance, PD6000
Colour:White on blue
Colour:Dark grey
Dimensions (WxDxH):22.04 cm x 10.54 cm x 52.8 cm - with stand (highest position)
Weight:850 g
Connectivity
Interfaces:Serial
Mechanical
Display Position Adjustments:Height, pivot (rotation), tilt
Tilt Angle:52
Rotation Angle:360
Miscellaneous
MTBF:50,000 hour(s)
Compliant Standards:Plug and Play
Software / System Requirements
Included Software:Drivers & Utilities, OPOS Drivers
Dimensions & Weight
Dimensions & Weight Details:With stand (highest position) - width: 22.04 cm - depth: 10.54 cm - height: 52.8 cm - weight: 850 g ¦ With stand (lowest position) - width: 22.04 cm - depth: 10.54 cm - height: 17.4 cm - weight: 850 g
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 80%
vis mere
The BIXOLON BCD-2000 customer display is engineered to enhance customer interactions at the point of sale. With its versatile adjustment capabilities, including height, pivot, and tilt, it ensures that the display can be easily viewed from any position. The display utilizes STN passive matrix technology to deliver clear and bright images and text, even in varied lighting conditions. It supports a wide array of character types, including 6 international and 95 alphanumeric characters, making it a versatile choice for businesses worldwide. Designed for durability, the BCD-2000 operates reliably within a temperature range of 0°C to 40°C and has a mean time between failures (MTBF) of 50,000 hours, minimizing downtime and maintenance needs. Whether for retail, hospitality, or any customer-facing environment, the BIXOLON BCD-2000 is built to improve efficiency and enhance the customer experience.
  • Flexible character alignment on display
  • Adjust alignment
  • Maximum 120 characters display
  • Two character font available
  • Adjustable display height
  • Easy connection to the host via USB cable pass-through design




The technical details come from 3rd party. edgemo is not responsible for any errors.
