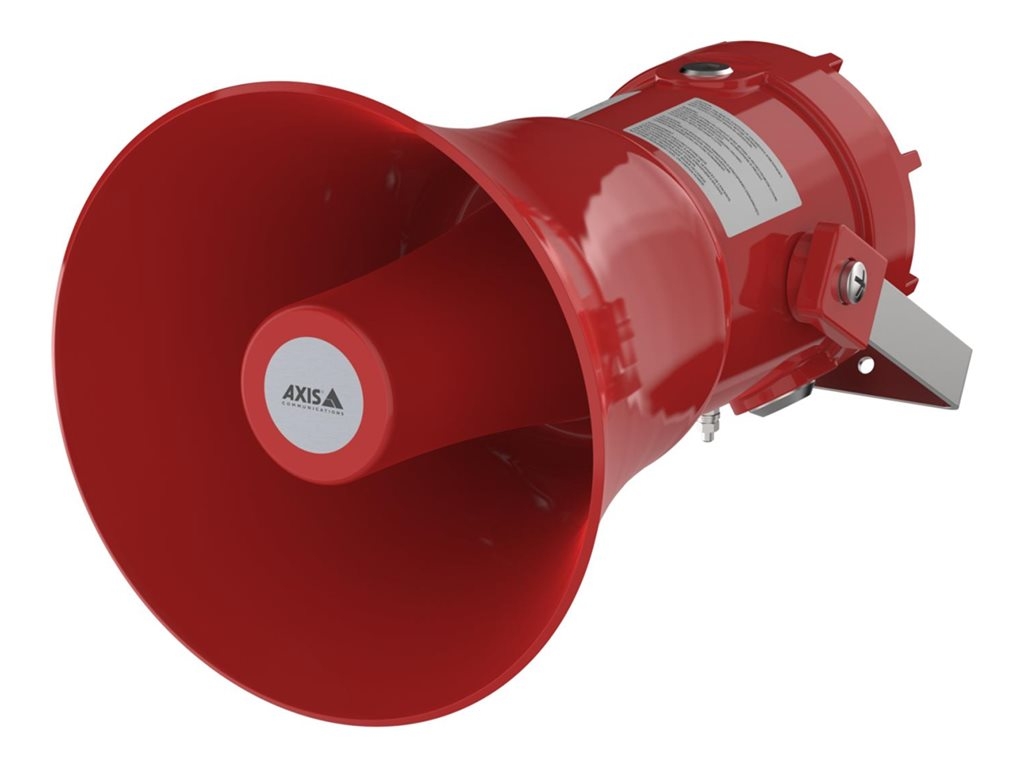

Axis XC1311 - IP speaker - for PA system

SKU 02962-001

Product Description:	Axis XC1311 - IP speaker - for PA system
Product Type:	IP speaker - for PA system
Features:	DSP
Integrated Memory:	Flash - 1024 MB
Protection:	Impact protection, dustproof, water-resistant
Enclosure Design:	Horn
Speaker Type:	Active

12-12-2024

Specifications
Description
Accessories

General
Product Type:	IP speaker - for PA system
Features:	DSP, AXIS Audio Manager Edge
Integrated Memory:	Flash - 1024 MB
Protection:	Impact protection, dustproof, water-resistant
Enclosure Colour:	RAL 3000
Enclosure Design:	Horn
Enclosure Material:	Aluminium
Design Features:	Swivel design

Speaker System
Speaker Type:	Active
Frequency Response:	280 - 12500 Hz
Max Output Level (Max SPL):	110 dB
Maximum Sampling Rate Supported:	48 kHz
Amplifier:	Integrated
Amplifier Class:	D
Amplifier Output Power:	7W
Coverage:	100° x 70°
Interfaces:	IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet)
VoIP Protocols:	SRTP, SIP over TLS
Voice Codecs:	G.711u-law, G.726
Network Protocols:	IPv4, IPv6, ICMP, HTTP, HTTPS, TLS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, UPnP, SNMPv3, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, DHCP, ARP, SSH, Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), IEEE 802.1x, SNMP
Audio Formats:	AAC-LC, G.711, PCM, G.726, ADPCM, U-LAW, WAV, MP3

Speaker System Details
Driver Details:	Speaker: full-range driver - 2.5" - dynamic cone

Connections
Connector Type:	LAN (RJ-45)

Miscellaneous
Included Accessories:	Terminal block, ring terminal connector, AVHS authentication key
Compliant Standards:	UL Class I Division 1, ATEX/IECEx Zone 1, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, AN/CSA-C22.2 No. 62368-1 (Canada), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IP66, IP67, NEMA 250 Type 4X, NIST SP500-267, IEEE 802.3af Class 3

Power
Power Source:	Power over Ethernet (PoE)
Power Consumption Operational:	7 Watt

Dimensions & Weight
Diameter:	22 cm
Depth:	33.5 cm
Weight:	4.22 kg

Manufacturer Warranty
Service & Support:	Limited warranty - 5 years

Environmental Parameters
Min Operating Temperature:	-40 °C
Max Operating Temperature:	60 °C
Min Storage Temperature:	-40 °C
Max Storage Temperature:	65 °C
Humidity Range Operating:	10 - 100% RH (condensing)
Humidity Range Storage:	5 - 95% RH (non-condensing)

vis mere

The Axis XC1311 IP speaker is an advanced audio solution designed for PA systems that demand reliability and clarity. With its robust aluminum body and protection against dust, impacts, and water, it stands out as a durable choice for any environment. The speaker supports an extensive array of audio formats, ensuring compatibility and high-quality sound reproduction across different media types. Its wide operating temperature range makes it suitable for a variety of settings, from industrial sites to outdoor spaces. Additionally, the Axis XC1311 is easy to install, thanks to its Power over Ethernet (PoE) capability, eliminating the need for additional power supplies and reducing installation complexity. With integrated features like DSP and AXIS Audio Manager Edge, it offers advanced audio management capabilities, making it an ideal choice for sophisticated audio system setups.

Aluminum body with dustproof, impact protection, and water-resistant features
Supports a wide range of audio formats including AAC-LC, MP3, and WAV
Integrated with dynamic cone full-range driver for clear sound
Operates across a wide temperature range from -40°C to 60°C
Features Power over Ethernet (PoE) for easy installation and power supply
