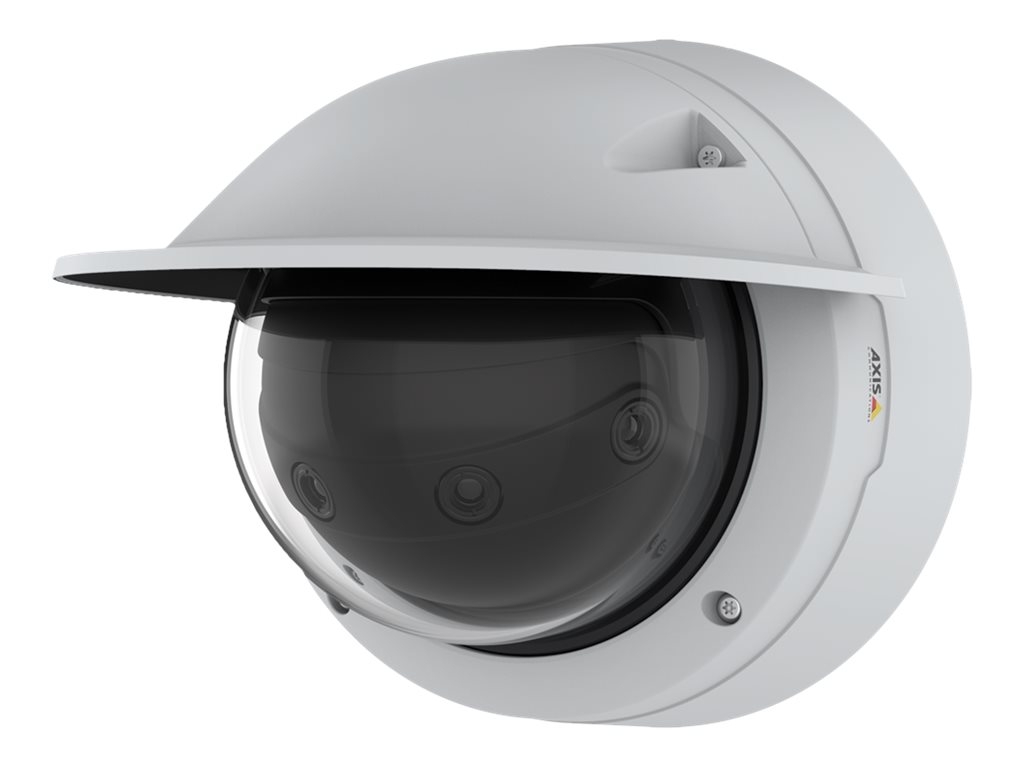

Printers & POSAXIS Q3819-PVE - panoramic camera - dome
SKU 01819-001
| Product Description: | AXIS Q3819-PVE - panoramic camera - dome |
| Device Type: | Panoramic camera - fixed - dome |
| Audio: | Yes: two-way audio capability |
| Dimensions (WxDxH): | 19.5 cm x 19.5 cm x 17 cm |
| Weight: | 2.4 kg |
| Connectivity Technology: | Wired |
| Camera: | Colour |
- Specifications
- Description
| General | |
| Device Type: | Panoramic camera |
| Audio Support: | Yes: two-way audio capability |
| Form Factor: | Dome |
| Connectivity Technology: | Wired |
| Width: | 19.5 cm |
| Depth: | 19.5 cm |
| Height: | 17 cm |
| Weight: | 2.4 kg |
| Camera | |
| Type: | Colour - fixed |
| Digital Video Format: | AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 |
| Max Digital Video Resolution: | 8192 x 1728 |
| Motion Detection: | Yes |
| Exposure Range: | 1/25 sec - 1/40000 sec |
| Minimum Illumination: | 0.16 lux - colour - F2.0 ¦ 0.06 lux - B&W - F2.0 |
| Frame Rate (max): | 30 frames per second |
| RAM: | 2 GB |
| Flash Memory: | 512 MB |
| Features: | Sharpness control, white balance, saturation control, brightness control, contrast control, Privacy Mask Function, Video Motion Detection Technology, Event Notification, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Forensic WDR, exposure zone |
| Image Sensor | |
| Type: | 14 MP PS RGB CMOS 4 x 1/2.5" |
| Lens Construction | |
| Type: | Fixed focal |
| Focal Length: | 5.9 mm |
| Lens Iris: | F/1.8 |
| Horizontal Field of View (degree): | 180 - 38 |
| Panning | |
| Range (degree): | -135 to +135 |
| Tilting | |
| Range (degree): | 15 to 92 |
| Interfaces | |
| Network Interface: | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols: | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity | |
| Ports: | LAN/power - RJ-45 |
| Supported Memory Cards: | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Included Accessories: | Weathershield, screw bit T20 |
| Compliant Standards: | EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IP67, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, IEC EN60529, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEEE 802.1x |
| Power | |
| Power Requirements: | PoE Class 4 |
| Power Device: | 12 Watt |
| Software / System Requirements | |
| Software Included: | Windows decoder 1-user licence |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | -40 °C |
| Max Operating Temperature: | 50 °C |
| Relative Humidity (operating): | 10 - 100% (non-condensing) |
With 14 MP resolution, AXIS Q3819-PVE offers seamless stitching of all four images. It delivers a 180º panoramic overview of extensive areas with excellent image usability for quick and intuitive situational awareness.
- Panoramic camera for seamless, 180° coverage
- 14 MP multi-sensor with seamless stitching
- 180° horizontal, 38° vertical coverage
- AXIS object analytics
- AXIS edge vault and TPM module
- Built-in motors for remote pan/tilt/roll
The technical details come from 3rd party. edgemo is not responsible for any errors.
