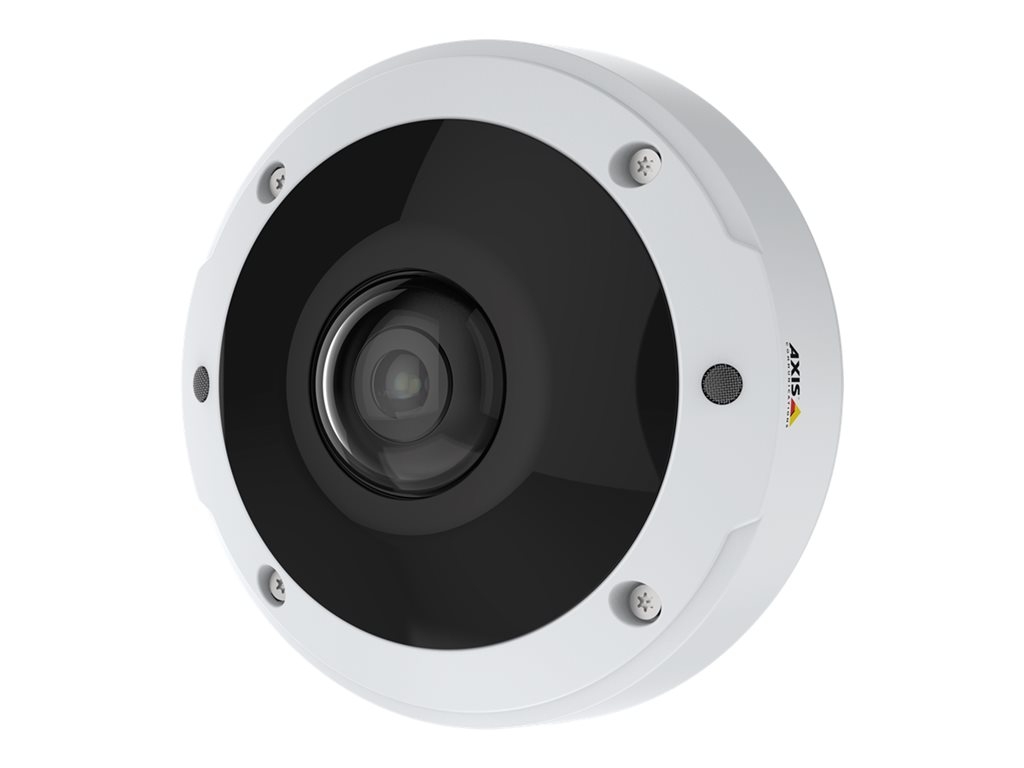

Printers & POSAXIS M3077-PLVE - network panoramic camera - dome
SKU 02018-001
| Product Description: | AXIS M3077-PLVE - network panoramic camera - dome |
| Device Type: | Network panoramic camera - fixed - dome - outdoor - vandal / weatherproof |
| Audio: | Yes: two-way audio capability, built-in microphone |
| Dimensions (WxDxH): | 14.9 cm x 14.9 cm x 6.6 cm |
| Weight: | 700 g |
| Colour: | White |
| Connectivity Technology: | Wired |
- Specifications
- Description
| General | |
| Device Type: | Network panoramic camera |
| Audio Support: | Yes: two-way audio capability, built-in microphone |
| Audio Formats: | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor: | Dome |
| Connectivity Technology: | Wired |
| Width: | 14.9 cm |
| Depth: | 14.9 cm |
| Height: | 6.6 cm |
| Weight: | 700 g |
| Camera | |
| Type: | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format: | MJPEG, H.264, H.265 |
| Max Digital Video Resolution: | 2016 x 2016 |
| Motion Detection: | Yes |
| Exposure Range: | 1 sec - 1/16000 sec |
| Minimum Illumination: | 0.16 lux - colour - F2.0 - 50 IRE ¦ 0.03 lux - B&W - F2.0 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs: | Yes |
| Infrared Distance: | 20 m |
| Digital Video Capture Resolution: | 384 x 288, 2560 x 1920, 1920 x 1440, 2560 x 1440, 160 x 160, 2016 x 2016, 256 x 144, 192 x 72, 2368 x 1184 |
| Frame Rate (max): | 60 frames per second |
| RAM: | 1 GB |
| Flash Memory: | 512 MB |
| Features: | Sharpness control, white balance, saturation control, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), lens preset positioning, Panorama Capture, NAS-Ready, auto low-light correction, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Double Panorama Capture, tone correction, OptimizedIR, auto gain control, Access Control, image overlay, exposure control, Pixel Counter Support, digest authentication, Forensic WDR, IP address filtering, exposure zone, tour recording, guard tour, on-screen directional indicator, adjustable zoom speed, HTTPs encryption, signed firmware, secure boot, Corridor mode, 360° field of view, day/night threshold, compression, text overlay, polygon privacy mask |
| Image Sensor | |
| Type: | 6 MP RGB CMOS 1/1.8" |
| Lens Construction | |
| Type: | Fixed focal |
| Focal Length: | 1.56 mm |
| Lens Iris: | F/2.0 fixed iris |
| Horizontal Field of View (degree): | 183 |
| Vertical Field of View (degree): | 183 |
| Interfaces | |
| Network Protocols: | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, SIP, LLDP, USGv6, MQTT |
| Expansion / Connectivity | |
| Supported Memory Cards: | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Included Accessories: | Mounting bracket, cable gaskets, drill hole template, I/O connector, connector guard, cable hole lid, view protector, Resitorx TR20 screw bit |
| Compliant Standards: | EN55024, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, KN35, USGv6, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, IEC 60721-3-5 Class 5M3, IEC/EN 62262, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267, NEMA 4, ICES-3(A)/NMB-3(A), IPv6, NEMA TS-2-2016 |
| Colour: | White |
| Power | |
| Power Requirements: | PoE Class 3 |
| Power Device: | 8 Watt |
| Software / System Requirements | |
| Software Included: | AXIS Camera Station, Windows decoder 1-user licence, AXIS Companion, AXIS Video Motion Detection, AXIS Device Manager |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | -40 °C |
| Max Operating Temperature: | 50 °C |
| Relative Humidity (operating): | 10 - 100% (condensing) |
This compact, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview for a wide range of surveillance scenarios. It features two built-in microphones for audio surveillance and detection. And, enhanced security features to safeguard your system.
- Complete 180° and 360° overview
- Lightfinder, Forensic WDR, and OptimizedIR
- Digital PTZ and dewarped views
- Built-in microphones
- Enhanced security features
The technical details come from 3rd party. edgemo is not responsible for any errors.
