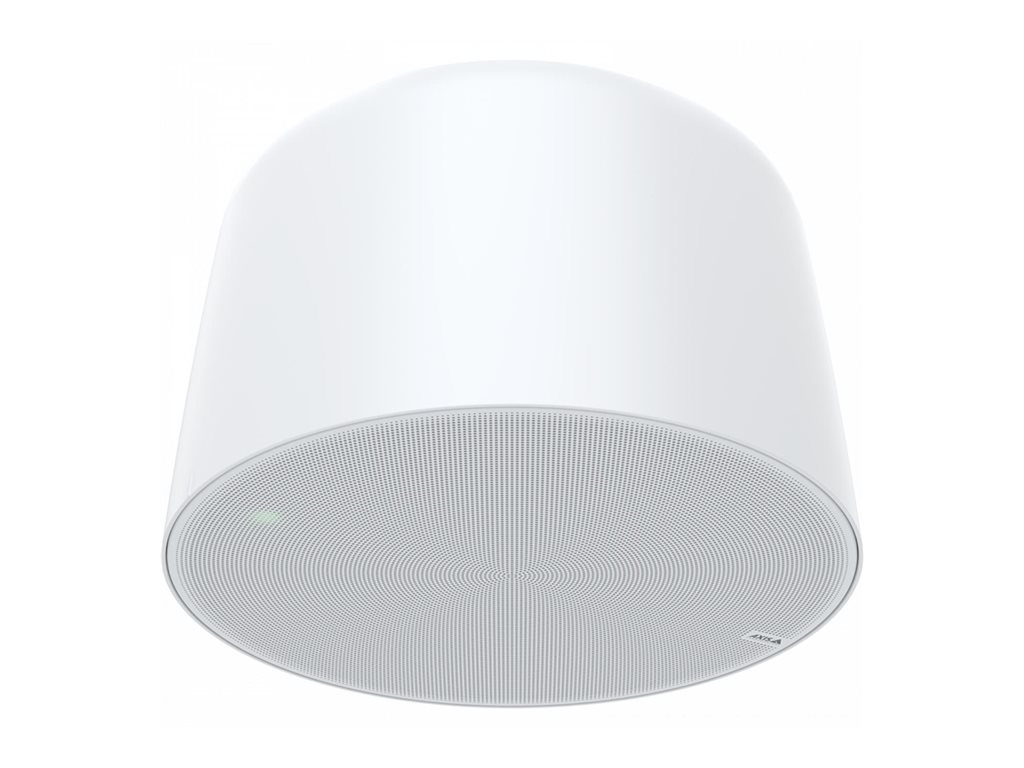

Printers & POSAxis C1510 - IP speaker - for PA system
SKU 02389-001
| Product Description: | Axis C1510 - IP speaker - for PA system |
| Product Type: | IP speaker - for PA system |
| Features: | DSP |
| Integrated Memory: | Flash - 512 MB |
| Speaker Type: | Active |
| Continuous Power: | 7 Watt |
| Frequency Response: | 60 - 20000 Hz |
- Specifications
- Description
| General | |
| Product Type: | IP speaker - for PA system |
| Features: | DSP |
| Integrated Memory: | Flash - 512 MB |
| Light: | LED lights |
| Microphone: | Yes |
| Enclosure Colour: | RAL 9010, off-white |
| Enclosure Material: | Plastic |
| Design Features: | Paintable |
| Speaker System | |
| Speaker Type: | Active |
| Continuous Power: | 7 Watt |
| Frequency Response: | 60 - 20000 Hz |
| Max Output Level (Max SPL): | 96 dB |
| Maximum Bit Rate Supported: | 320 Kbps |
| Maximum Sampling Rate Supported: | 48 kHz |
| Amplifier: | Integrated |
| Amplifier Class: | D |
| Amplifier Output Power: | 7W |
| Coverage: | 130° conical |
| Interfaces: | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet) |
| VoIP Protocols: | SRTP, SIP over TLS, SIPS |
| Voice Codecs: | Speex, Opus, L16, PCMA, PCMU, G.726-32 |
| Network Protocols: | TCP, UDP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, RTCP, RTP, NTP, UPnP, SNMPv3, SSH, FTP, SSL, SFTP, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, RTSP, IGMP, DHCP, SOCKS, NTCIP, SIP |
| Recommended Placing: | Pendant |
| Audio Formats: | WAV, PCM, G.726, MP3, ADPCM, AAC-LC, G.711, U-LAW |
| Memory Card | |
| Supported Memory Cards: | microSDHC, microSD, microSDXC |
| Max Supported Size: | 64 GB |
| Speaker System Details | |
| Driver Details: | Speaker: full-range driver - 4" - dynamic cone |
| Connections | |
| Connector Type: | LAN (RJ-45) ¦ Control input (4 pin terminal block) |
| Miscellaneous | |
| Compliant Standards: | CISPR 24, EN55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, EN 61000-6-3, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, KC, IP40, VCCI Class A, KN35, AS/NZS CISPR 32 Class B, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, ICES-3(A)/NMB-3(A), CAN/CSA 62368-1, IEC/EN 60529 IP4X |
| Power | |
| Power Source: | Power over Ethernet (PoE) |
| Power Consumption Operational: | 12.95 Watt |
| Dimensions & Weight | |
| Diameter: | 29 cm |
| Height: | 18 cm |
| Weight: | 4.1 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | -30 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 10 - 85% RH |
This all-in-one speaker system offers easy installation and integration with other systems. It can be used to make general live or prerecorded voice messages, deliver safety instructions, or remotely and proactively warn off intruders.
- All-in-one speaker system
- Connects to standard network
- Easy installation with just one network cable (PoE)
- Scalable and easy to integrate
- Remote health testing
The technical details come from 3rd party. edgemo is not responsible for any errors.
