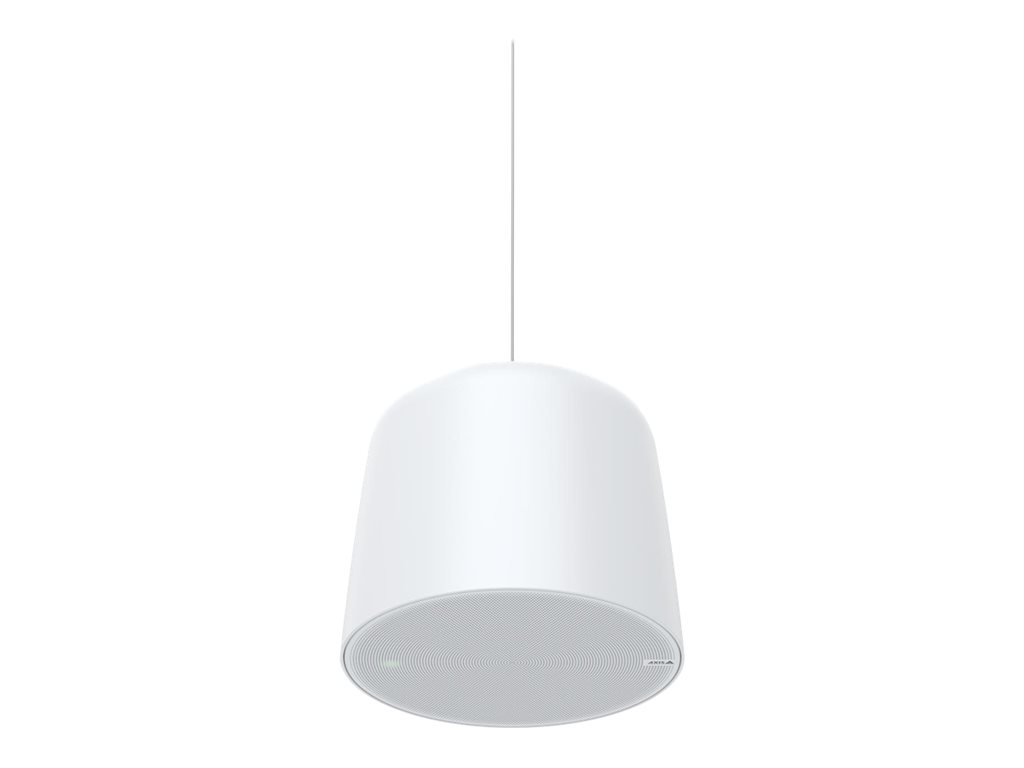

Axis C15 Series C1511 - IP speaker - for PA system

SKU 02390-001
Product Description:Axis C15 Series C1511 - IP speaker - for PA system
Product Type:IP speaker - for PA system
Features:DSP
Integrated Memory:Flash - 512 MB
Speaker Type:Active
Continuous Power:7 Watt
Frequency Response:70 - 16000 Hz
11-04-2024
  • Specifications
  • Description
General
Product Type:IP speaker - for PA system
Features:DSP
Integrated Memory:Flash - 512 MB
Light:LED lights
Microphone:Yes
Enclosure Colour:RAL 9010, off-white
Enclosure Material:Plastic
Design Features:Paintable
Speaker System
Speaker Type:Active
Continuous Power:7 Watt
Frequency Response:70 - 16000 Hz
Max Output Level (Max SPL):93 dB
Maximum Bit Rate Supported:320 Kbps
Maximum Sampling Rate Supported:48 kHz
Amplifier:Integrated
Amplifier Class:D
Amplifier Output Power:7W
Coverage:130°
Interfaces:IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet)
VoIP Protocols:SRTP, SIP over TLS, SIPS
Voice Codecs:Speex, Opus, L16, PCMA, PCMU, G.726-32
Network Protocols:TCP, UDP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, RTCP, RTP, NTP, UPnP, SNMPv3, SSH, FTP, SSL, SFTP, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, RTSP, IGMP, DHCP, SOCKS, NTCIP, SIP
Recommended Placing:Pendant
Audio Formats:WAV, PCM, G.726, MP3, ADPCM, AAC-LC, G.711, U-LAW
Memory Card
Supported Memory Cards:microSDHC, microSD, microSDXC
Max Supported Size:64 GB
Speaker System Details
Driver Details:Speaker: full-range driver - 6.5" - dynamic cone
Connections
Connector Type:LAN (RJ-45) ¦ Control input (4 pin terminal block)
Miscellaneous
Compliant Standards:CISPR 24, EN55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, EN 61000-6-3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, KC, IP40, VCCI Class B, KN35, EN 55032 Class B, AS/NZS CISPR 32 Class B, KN32 Class B, CISPR 32 Class B, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, CAN/CSA 62368-1, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), IEC/EN 60529 IP4X
Power
Power Source:Power over Ethernet (PoE)
Power Consumption Operational:12.95 Watt
Dimensions & Weight
Diameter:22 cm
Height:15 cm
Weight:2.65 kg
Manufacturer Warranty
Service & Support:Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature:-30 °C
Max Operating Temperature:50 °C
Humidity Range Operating:10 - 85% RH
vis mere




The technical details come from 3rd party. edgemo is not responsible for any errors.
