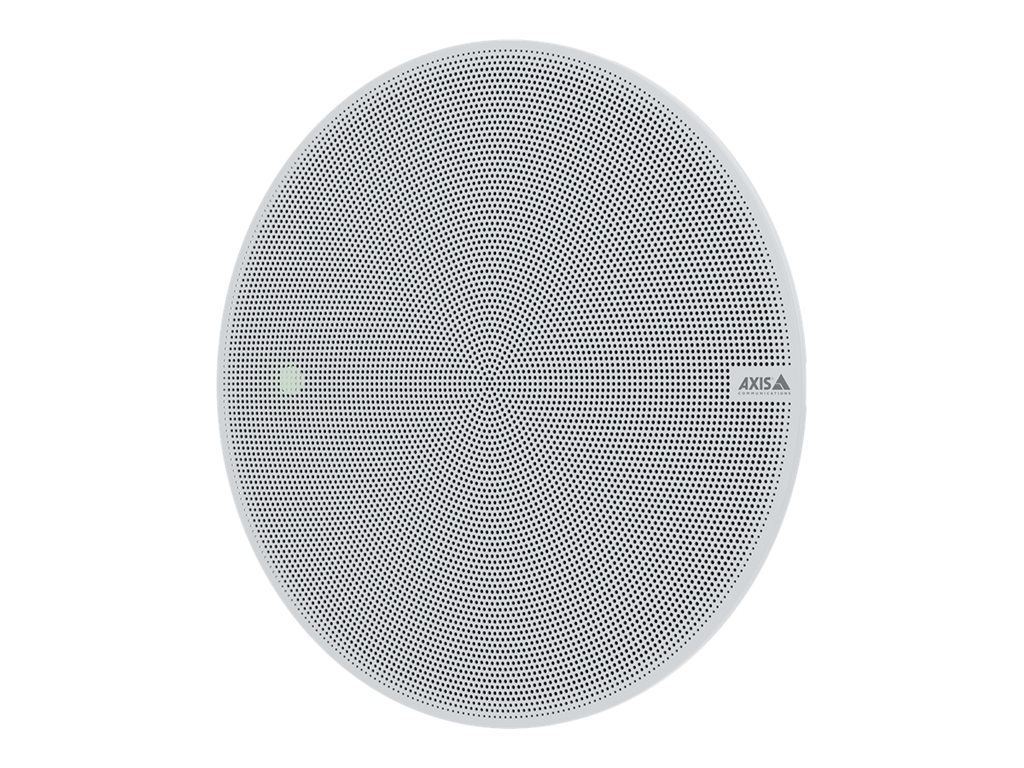

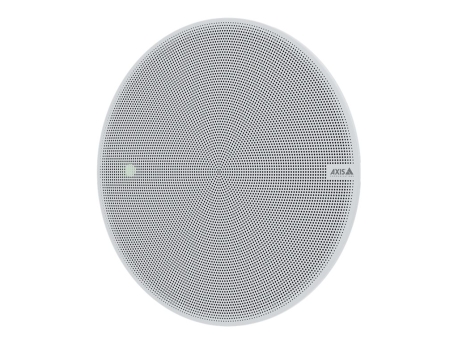

Printers & POSAxis C1211-E - IP speaker - for PA system
SKU 02323-001
| Product Description: | Axis C1211-E - IP speaker - for PA system |
| Product Type: | IP speaker - for PA system |
| Features: | DSP |
| Integrated Memory: | Flash - 512 MB |
| Protection: | Splashproof |
| Speaker Type: | Coaxial active |
| Frequency Response: | 40 - 16000 Hz |
- Specifications
- Description
| General | |
| Product Type: | IP speaker - for PA system |
| Features: | DSP, AXIS Audio Manager Edge, 2-way audio talkback |
| Integrated Memory: | Flash - 512 MB |
| Light: | LED lights |
| Microphone: | Yes |
| Protection: | Splashproof |
| Enclosure Material: | Plastic |
| Design Features: | Paintable |
| Grille Colour: | RAL 9010 |
| Speaker System | |
| Speaker Type: | Coaxial active |
| Frequency Response: | 40 - 16000 Hz |
| Max Output Level (Max SPL): | 93 dB |
| Maximum Sampling Rate Supported: | 48 kHz |
| Amplifier: | Integrated |
| Amplifier Class: | D |
| Amplifier Output Power: | 7W |
| Coverage: | 130° |
| Interfaces: | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet) |
| VoIP Protocols: | SIP, SRTP, SIPS |
| Voice Codecs: | Speex, Opus, L16, PCMA, PCMU, G.726-32 |
| Network Protocols: | TCP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, RTCP, RTP, NTP, UPnP, SSH, FTP, SSL, SFTP, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, RTSP, IGMP, DHCP, SOCKS, NTCIP, SIP |
| Recommended Placing: | In-ceiling mounted |
| Audio Formats: | WAV, PCM, G.726, MP3, ADPCM, AAC-LC, G.711 |
| App-Controlled: | Yes |
| Memory Card | |
| Supported Memory Cards: | microSDHC, microSD, microSDXC |
| Speaker System Details | |
| Driver Details: | Speaker: full-range driver - 4" - dynamic cone |
| Connections | |
| Connector Type: | LAN (RJ-45) ¦ Audio line-in / microphone (mini-phone stereo 3.5 mm) ¦ (4 pin terminal block) |
| Miscellaneous | |
| Compliant Standards: | CISPR 24, EN55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, EN 61000-6-3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class B, EN 55032 Class B, KCC KN32 Class B, CISPR 32 Class B, KCC KN35, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60529 IP44, IEC/EN 62368-1, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), CAN/CSA-C22.2 No. 60950-22, UL 60529-22 |
| Power | |
| Power Source: | Power over Ethernet (PoE) |
| Dimensions & Weight | |
| Diameter: | 21.5 cm |
| Height: | 15 cm |
| Weight: | 2 kg |
| Cutout & Mounting Dimensions | |
| Diameter: | 19.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | -30 °C |
| Max Operating Temperature: | 50 °C |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 65 °C |
| Humidity Range Operating: | 10 - 100% RH (condensing) |
| Humidity Range Storage: | 5 - 95% RH (non-condensing) |
This all-in-one speaker system offers easy installation and integration with other systems. It can be used to make general live or prerecorded voice messages, and proactively warn off intruders.
- All-in-one speaker system
- Connects to standard network
- Easy installation setup
- Scalable and easy to integrate
- Remote health testing
The technical details come from 3rd party. edgemo is not responsible for any errors.
