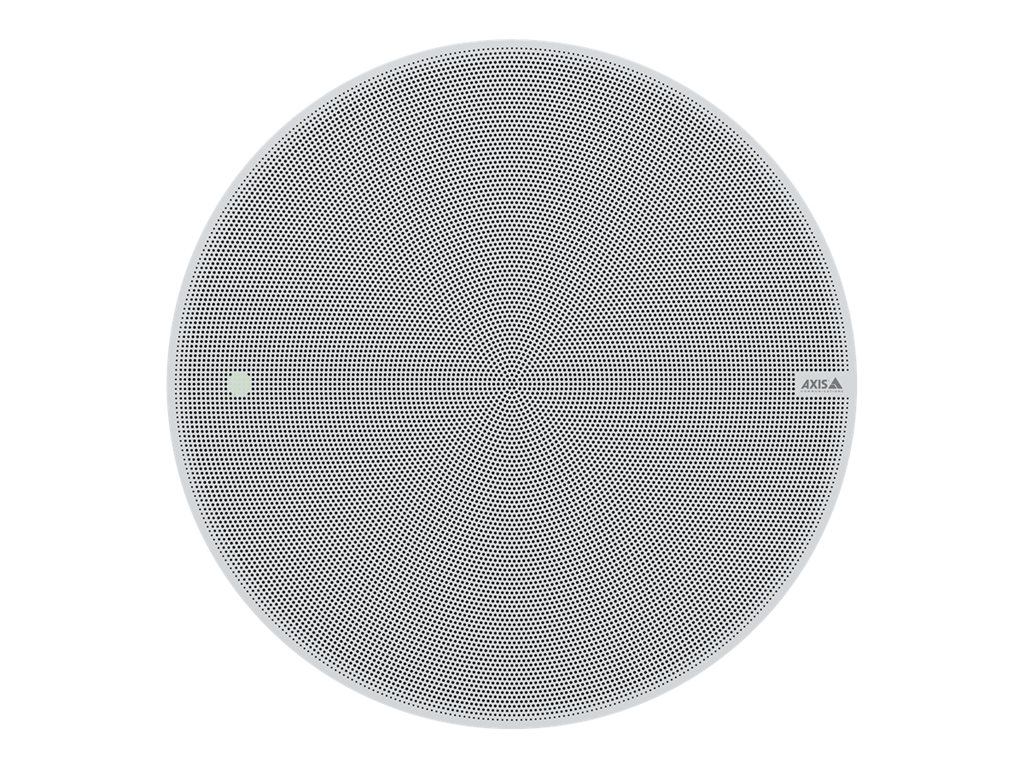

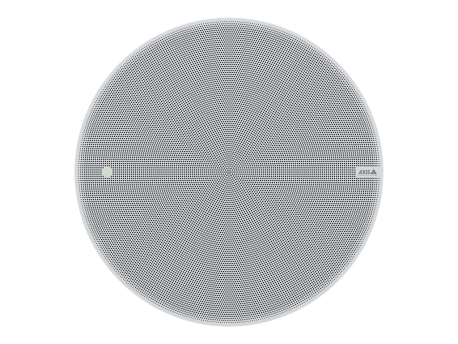

Printers & POSAxis C1210-E - IP speaker - for PA system
SKU 02324-001
| Product Description: | Axis C1210-E - IP speaker - for PA system |
| Product Type: | IP speaker - for PA system |
| Features: | DSP |
| Integrated Memory: | Flash - 512 MB |
| Speaker Type: | Coaxial active |
| Frequency Response: | 40 - 20000 Hz |
| Amplifier Output Power: | 7W - D |
- Specifications
- Description
| General | |
| Product Type: | IP speaker - for PA system |
| Features: | DSP, AXIS Audio Manager Edge, 2-way audio talkback |
| Integrated Memory: | Flash - 512 MB |
| Light: | LED lights |
| Microphone: | Yes |
| Enclosure Material: | Plastic |
| Design Features: | Paintable |
| Grille Colour: | RAL 9010 |
| Speaker System | |
| Speaker Type: | Coaxial active |
| Frequency Response: | 40 - 20000 Hz |
| Max Output Level (Max SPL): | 96 dB |
| Maximum Sampling Rate Supported: | 48 kHz |
| Amplifier: | Integrated |
| Amplifier Class: | D |
| Amplifier Output Power: | 7W |
| Coverage: | 130° |
| Interfaces: | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet) |
| VoIP Protocols: | SIP, SRTP, SIP over TLS, SIPS |
| Voice Codecs: | Speex, Opus, L16, PCMA, PCMU, G.726-32 |
| Network Protocols: | TCP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, RTCP, RTP, NTP, UPnP, SSH, FTP, SSL, SFTP, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, RTSP, IGMP, DHCP, SOCKS, NTCIP, SIP |
| Recommended Placing: | In-ceiling mounted |
| Audio Formats: | WAV, PCM, G.726, MP3, ADPCM, AAC-LC, G.711 |
| App-Controlled: | Yes |
| Memory Card | |
| Supported Memory Cards: | microSDHC, microSD, microSDXC |
| Max Supported Size: | 64 GB |
| Speaker System Details | |
| Driver Details: | Speaker: full-range driver - 6.5" - dynamic cone |
| Connections | |
| Connector Type: | LAN (RJ-45) ¦ Audio line-in / microphone (mini-phone stereo 3.5 mm) ¦ (4 pin terminal block) |
| Miscellaneous | |
| Compliant Standards: | CISPR 24, EN55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, EN 61000-6-3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 55032 Class A, KCC KN32 Class A, RCM Class A, CISPR 32 Class A, KCC KN35, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60529 IP44, ICES-3(A)/NMB-3(A), IEC/EN 62368-1, FCC Part 15 Subpart B:2020 Class A, CAN/CSA-C22.2 No. 60950-22, UL 60529-22 |
| Power | |
| Power Source: | Power over Ethernet (PoE) |
| Dimensions & Weight | |
| Diameter: | 28.5 cm |
| Height: | 15 cm |
| Weight: | 3.1 kg |
| Cutout & Mounting Dimensions | |
| Diameter: | 26.1 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | -30 °C |
| Max Operating Temperature: | 50 °C |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 65 °C |
| Humidity Range Operating: | 10 - 100% RH (condensing) |
| Humidity Range Storage: | 5 - 95% RH (non-condensing) |
This all-in-one speaker system offers easy installation and integration with other systems. It can be used to make general live or prerecorded voice messages, deliver safety instructions or remotely and proactively warn off intruders.
- All-in-one speaker system
- Connects to standard network
- Easy installation with just one network cable (PoE)
- Scalable and easy to integrate
- Remote health testing
The technical details come from 3rd party. edgemo is not responsible for any errors.
