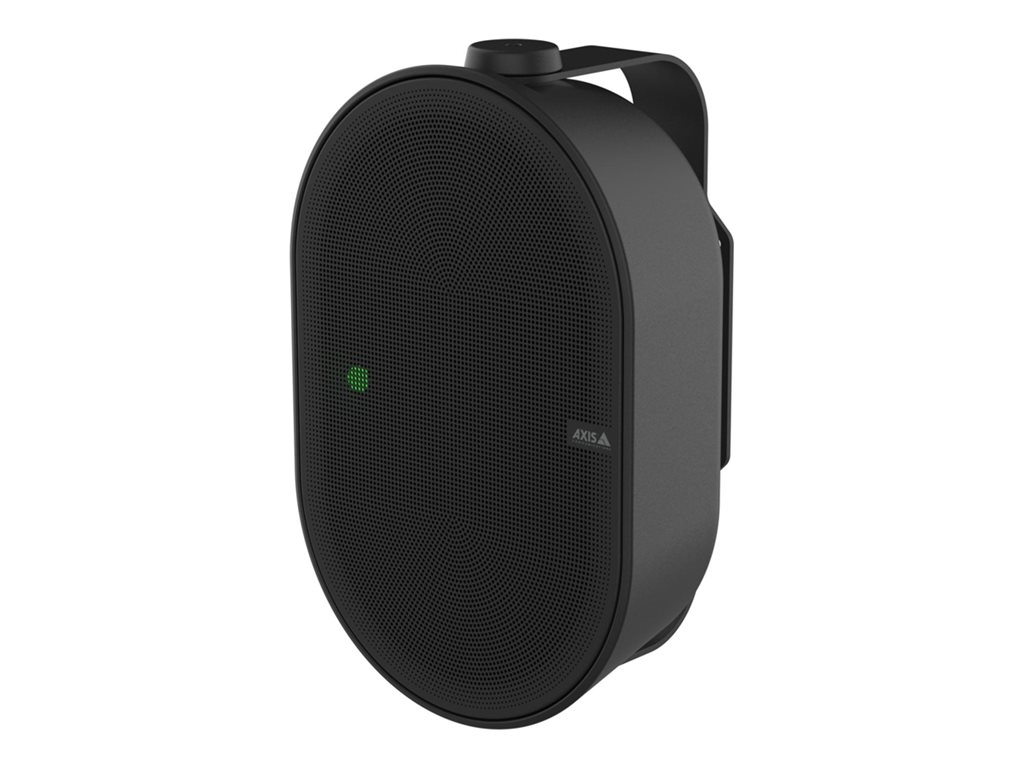

Axis C1111-E - IP speaker - for PA system

SKU 02698-001

Product Description:	Axis C1111-E - IP speaker - for PA system
Product Type:	IP speaker - for PA system
Features:	DSP
Integrated Memory:	Flash - 1024 MB
Speaker Type:	Active
Frequency Response:	120 - 20000 Hz
Amplifier Output Power:	7W - D

12-12-2024

Specifications
Description
Accessories

General
Product Type:	IP speaker - for PA system
Features:	DSP, AXIS Audio Manager Edge, 2-way audio talkback, echo cancelling
Integrated Memory:	Flash - 1024 MB
Microphone:	Yes
Enclosure Colour:	Black
Enclosure Material:	Aluminium

Speaker System
Speaker Type:	Active
Frequency Response:	120 - 20000 Hz
Max Output Level (Max SPL):	93 dB
Maximum Sampling Rate Supported:	48 kHz
Amplifier:	Integrated
Amplifier Class:	D
Amplifier Output Power:	7W
Coverage:	130° x 120°
Interfaces:	IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus)
VoIP Protocols:	SIPS, SIP, SRTP, SIP over TLS
Voice Codecs:	PCMU, PCMA, Opus, L16, Speex, G.726-32
Network Protocols:	IPv4, IPv6, HTTP, HTTPS, SSL, TLS, FTP, SFTP, CIFS, SMB, SMTP, UPnP, SNMP, DNS, DynDNS, NTP, RTSP, RTP, TCP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP
Recommended Placing:	Wall-mountable, ceiling mountable, pole mount
Audio Formats:	AAC-LC, G.711, G.726, WAV, MP3, ADPCM, PCM

Memory Card
Supported Memory Cards:	microSD, microSDHC, microSDXC

Speaker System Details
Driver Details:	Speaker: full-range driver - 2.5" - dynamic cone

Connections
Connector Type:	LAN (RJ-45) ¦ (4 pin terminal block)

Miscellaneous
Included Accessories:	Terminal block, connector protector, gasket, AVHS authentication key
Compliant Standards:	CISPR 24, CISPR 35, CISPR 32 Class A, EN55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B:2020 Class A, ICES-3(B)/NMB-3(B), VCCI Class A, KS C 9835, KS C 9832 Class A, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IEC/EN 62368-1, UL 62368-1, IEC/EN/UL 60950-22, KC, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC 60529 IP55, ETSI EN 303 645

Power
Power Source:	Power over Ethernet (PoE)

Dimensions & Weight
Width:	25.3 cm
Depth:	12.9 cm
Height:	16.4 cm
Weight:	2.2 kg

Manufacturer Warranty
Service & Support:	Limited warranty - 5 years

Environmental Parameters
Min Operating Temperature:	-30 °C
Max Operating Temperature:	50 °C
Min Storage Temperature:	-40 °C
Max Storage Temperature:	65 °C
Humidity Range Operating:	10 - 100% RH (condensing)
Humidity Range Storage:	5 - 95% RH (non-condensing)

vis mere

Discover the Axis C1111-E, a dynamic IP speaker designed for PA systems that combines durability, superior sound quality, and versatile connectivity. Engineered with an aluminum body and compliant with a wide range of standards, this speaker is built to perform in any environment, from -30 °C to 50 °C. It features an integrated Class D amplifier for clear, powerful audio across various formats, from AAC-LC to WAV, ensuring your messages are heard loud and clear.
The Axis C1111-E is designed for easy integration into existing networks, supporting a broad spectrum of network protocols and Power over Ethernet (PoE) for hassle-free installation. It also offers advanced functionalities like AXIS Audio Manager Edge, echo canceling, and 2-way audio talkback, making it a versatile choice for enhancing communication. Whether ceiling-mounted, pole-mounted, or wall-mounted, its flexible installation options ensure optimal sound coverage, making it an ideal solution for any PA system.

Active amplification with integrated Class D amplifier for powerful sound
Supports a wide range of audio formats including MP3, AAC-LC, and WAV
Power over Ethernet (PoE) capability for simplified installation
Echo canceling and 2-way audio talkback for enhanced audio clarity
Compliant with numerous standards, ensuring durability and reliability

The technical details come from 3rd party. edgemo is not responsible for any errors.
