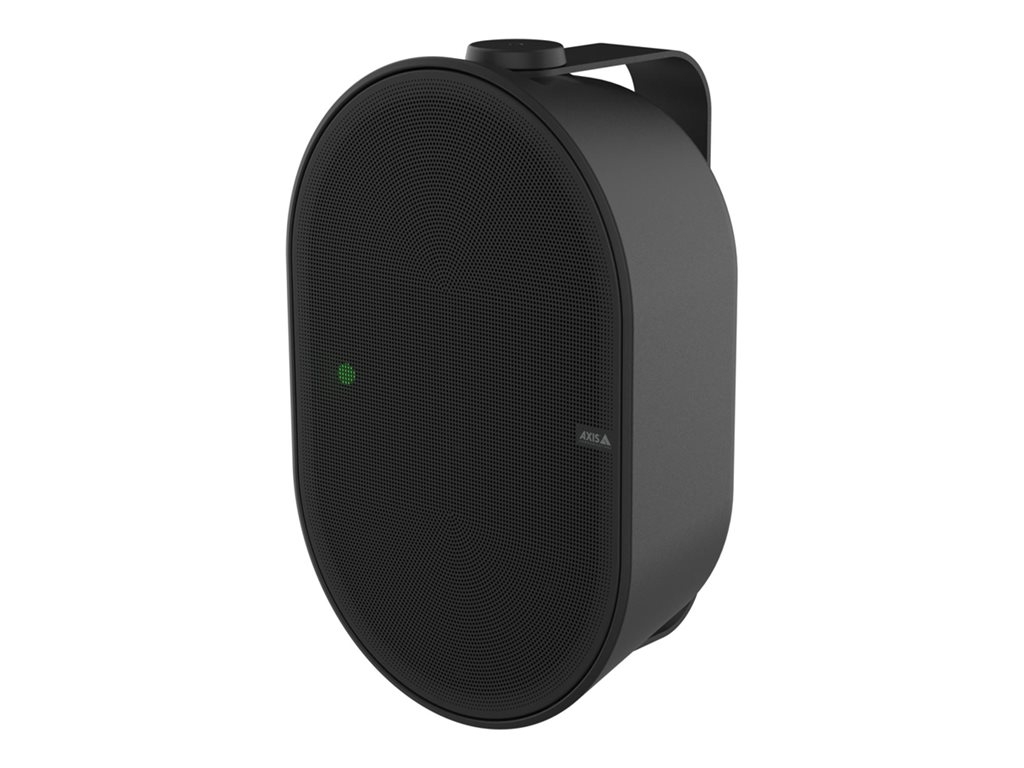

Printers & POSAxis C1110-E - IP speaker - for PA system
SKU 02696-001
| Product Description: | Axis C1110-E - IP speaker - for PA system |
| Product Type: | IP speaker - for PA system |
| Features: | DSP |
| Integrated Memory: | Flash - 1024 MB |
| Enclosure Design: | Bass reflex |
| Speaker Type: | 2-way - active |
| Frequency Response: | 60 - 20000 Hz |
- Specifications
- Description
| General | |
| Product Type: | IP speaker - for PA system |
| Features: | DSP, AXIS Audio Manager Edge, 2-way audio talkback, echo cancelling |
| Integrated Memory: | Flash - 1024 MB |
| Light: | LED lights |
| Microphone: | Yes |
| Enclosure Colour: | Black |
| Enclosure Design: | Bass reflex |
| Enclosure Material: | Aluminium |
| Speaker System | |
| Speaker Type: | 2-way - active |
| Frequency Response: | 60 - 20000 Hz |
| Max Output Level (Max SPL): | 96 dB |
| Maximum Sampling Rate Supported: | 48 kHz |
| Amplifier: | Integrated |
| Amplifier Class: | D |
| Amplifier Output Power: | 7W |
| Coverage: | 140° x 90° |
| Interfaces: | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus) |
| VoIP Protocols: | SIPS, SIP, SRTP, SIP over TLS |
| Voice Codecs: | PCMU, PCMA, Opus, L16, Speex, G.726-32 |
| Network Protocols: | IPv4, IPv6, HTTP, HTTPS, SSL, TLS, FTP, SFTP, CIFS, SMB, SMTP, UPnP, SNMP, DNS, DynDNS, NTP, RTSP, RTP, TCP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP |
| Recommended Placing: | Wall-mountable, ceiling mountable, pole mount |
| Audio Formats: | AAC-LC, G.711, G.726, WAV, MP3, ADPCM, PCM |
| Memory Card | |
| Supported Memory Cards: | microSD, microSDHC, microSDXC |
| Speaker System Details | |
| Driver Details: | Speaker: woofer driver - 4" - dynamic cone ¦ Speaker: tweeter driver - 1.25" |
| Connections | |
| Connector Type: | LAN (RJ-45) ¦ (4 pin terminal block) |
| Miscellaneous | |
| Included Accessories: | Terminal block, connector protector, gasket, AVHS authentication key |
| Compliant Standards: | CISPR 24, CISPR 35, CISPR 32 Class A, EN55024, EN 55035, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), VCCI Class B, KS C 9835, KS C 9832 Class B, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IEC/EN 62368-1, UL 62368-1, IEC/EN/UL 60950-22, KC, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP44, ETSI EN 303 645 |
| Power | |
| Power Source: | Power over Ethernet (PoE) |
| Dimensions & Weight | |
| Width: | 31 cm |
| Depth: | 16.5 cm |
| Height: | 20.7 cm |
| Weight: | 4.1 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | -30 °C |
| Max Operating Temperature: | 50 °C |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 65 °C |
| Humidity Range Operating: | 10 - 100% RH (condensing) |
| Humidity Range Storage: | 5 - 95% RH (non-condensing) |
Discover the Axis C1110-E, a dynamic IP speaker designed for PA systems that combines durability, superior sound quality, and versatile connectivity. Engineered with an aluminum body and meeting numerous compliance standards, this speaker is crafted to perform in a variety of environmental conditions. It supports a broad spectrum of audio formats such as AAC-LC, MP3, and WAV, ensuring compatibility with different media types. The integrated Class D amplifier, along with a frequency response range of 60 - 20,000 Hz, ensures that your messages are heard loud and clear, whether it's music or spoken announcements.
The Axis C1110-E is not just about sound; it's about smart, efficient connectivity. With support for Power over Ethernet (PoE), installation and maintenance are streamlined, reducing the need for additional power supplies. It also features a wide range of network protocols, ensuring easy integration into existing systems. Whether mounted on the ceiling, pole, or wall, this speaker is designed for flexibility, making it suitable for various applications. Embrace the Axis C1110-E for a sound solution that speaks volumes.
The Axis C1110-E is not just about sound; it's about smart, efficient connectivity. With support for Power over Ethernet (PoE), installation and maintenance are streamlined, reducing the need for additional power supplies. It also features a wide range of network protocols, ensuring easy integration into existing systems. Whether mounted on the ceiling, pole, or wall, this speaker is designed for flexibility, making it suitable for various applications. Embrace the Axis C1110-E for a sound solution that speaks volumes.
- Supports a wide range of audio formats for versatile playback options
- Integrated Class D amplifier for clear, powerful sound output
- Designed for durability with an aluminum body and compliance with multiple standards
- Flexible mounting options including ceiling, pole, and wall installations
- Comprehensive connectivity with Power over Ethernet (PoE) support and extensive network protocol compatibility
The technical details come from 3rd party. edgemo is not responsible for any errors.
