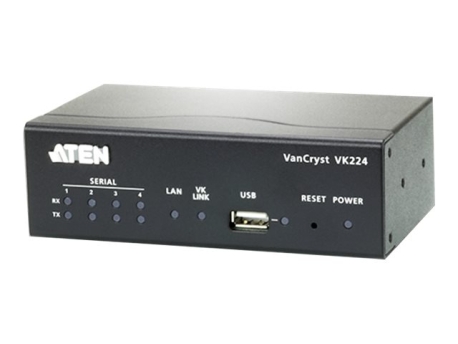

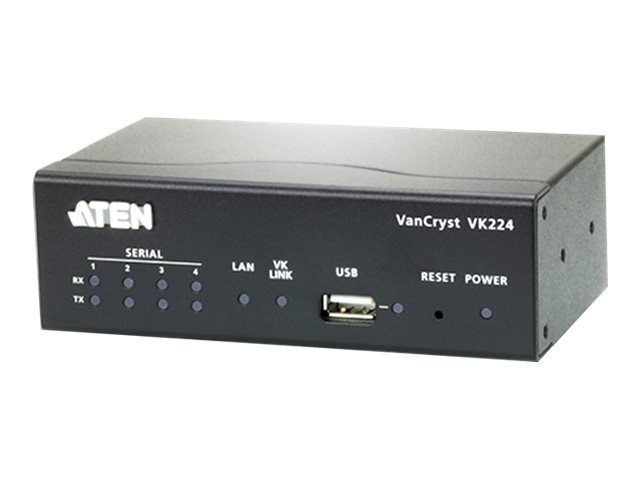

Printers & POSATEN VanCryst VK224 Serial Expansion Box - remote control device
SKU VK224-AT-G
| Product Description: | ATEN VanCryst VK224 Serial Expansion Box - remote control device |
| Device Type: | Remote control device |
| Form Factor: | External - 1U |
| Ports Qty: | 4 |
| Data Link Protocol: | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Included Accessories: | Rack mount kit |
| Power Over Ethernet (PoE) Supported: | PoE+ |
- Specifications
- Description
| General | |
| Device Type: | Remote control device |
| Height (Rack Units): | 1U |
| Width: | 13 cm |
| Depth: | 7.58 cm |
| Height: | 4.2 cm |
| Weight: | 450 g |
| Networking | |
| Form Factor: | External |
| Ports Qty: | 4 |
| Data Link Protocol: | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol: | TCP/IP, ICMP/IP, DHCP |
| Remote Management Protocol: | HTTPS, SSH |
| Status Indicators: | Port status, power, LAN, link/activity, USB |
| Features: | Flow control, DHCP support, manageable, PoE+, reset button, bidirectional, controller ID switch (16-segment), expansion ID switch (8-segment) |
| Compliant Standards: | IEEE 802.3af, IEEE 802.3at |
| Expansion / Connectivity | |
| Interfaces: | 4 x RS-232/422/485 - DB-9 ¦ 1 x 100Base-TX (PoE+) - RJ-45 ¦ 1 x USB - Type A |
| Miscellaneous | |
| Included Accessories: | Rack mount kit |
| Compliant Standards: | RoHS, WEEE |
| Power | |
| Power Over Ethernet (PoE) Supported: | PoE+ |
| Power Device: | External power adapter |
| Power Consumption Operational: | 9.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 0 - 80% (non-condensing) |
The VK224 4-Port Serial Expansion Box provides four additional bi-directional RS-232/422/485 serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional serial devices in an environment where more serial devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
