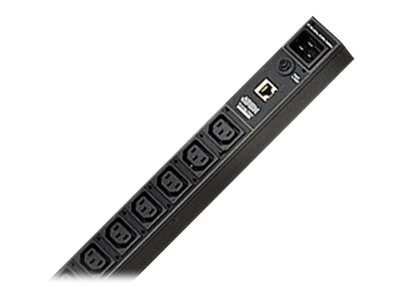

ATEN PE1216G - power distribution unit

SKU PE1216G-AX-G
Product Description:ATEN PE1216G - power distribution unit
Device Type:Power distribution unit - rack-mountable
Rack Size:0U
Weight:1.23 kg
Localisation:Worldwide
Output Voltage:AC 100-240 V
Input Connectors:1 x power IEC 60320 C20
11-04-2024
  • Specifications
  • Description
General
Device Type:Power distribution unit - rack-mountable
Height (Rack Units):0U
Localisation:Worldwide
Power Device
Input Voltage Range:AC 100 - 240 V
Frequency Provided:50/60 Hz
Frequency Required:50/60 Hz
Input Connectors:1 x power IEC 60320 C20
Power Output Connectors Details:16 x power IEC 60320 C13
Output Voltage:AC 100-240 V 50/60 Hz
Max Electric Current:16 A
Networking
Remote Management Interface:Ethernet
Expansion / Connectivity
Interfaces:1 x management (Ethernet) - RJ-45
Miscellaneous
Rack Mounting Kit:Included
Features:Current meter
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:50 °C
Humidity Range Operating:0 - 80% (non-condensing)
Dimensions & Weight
Width:4.39 cm
Depth:68 cm
Height:4.39 cm
Weight:1.23 kg
vis mere
The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0 U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.
The PE1216 Energy PDU can be integrated into an installation, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via web GUI remotely - making your server room efficiently green with ease.
  • Space saving 0 U rack mount design
  • IEC outlet models




The technical details come from 3rd party. edgemo is not responsible for any errors.
