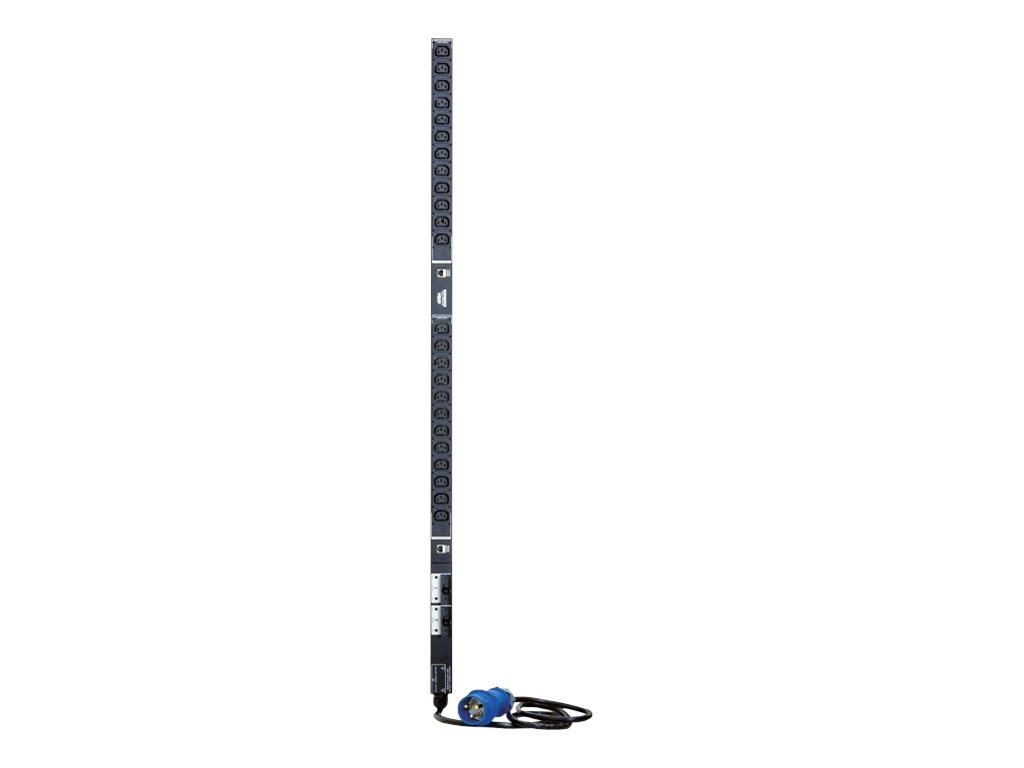

ATEN Energy PDU PE1324G - power distribution unit

SKU PE1324G-AX
Product Description:ATEN Energy PDU PE1324G - power distribution unit
Device Type:Power distribution unit - rack-mountable
Rack Size:0U
Weight:3.47 kg
Localisation:Worldwide
Input Voltage:AC 100-240 V
Output Voltage:AC 100-240 V
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power distribution unit - rack-mountable
Height (Rack Units):0U
Localisation:Worldwide
Power Device
Input Voltage:AC 100-240 V
Frequency Provided:50/60 Hz
Frequency Required:50/60 Hz
Input Connectors:1 x power IEC 60309 32A
Power Output Connectors Details:24 x power IEC 60320 C13
Output Voltage:AC 100-240 V 50/60 Hz
Max Electric Current:32 A
Expansion / Connectivity
Interfaces:1 x monitoring - RJ-45
Miscellaneous
Cables Included:Power cable
Rack Mounting Kit:Included
Features:Current meter
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:50 °C
Humidity Range Operating:0 - 80% (non-condensing)
Dimensions & Weight
Width:4.4 cm
Depth:134 cm
Height:4.4 cm
Weight:3.47 kg
vis mere
The PE1324 Energy PDU contains 24 AC outlets and is available in IEC or NEMA socket configurations. The PE1324 Energy PDU features a space-saving 0 U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 24 AC outlets.
The PE1324 Energy PDU can be integrated into an installation with the EC1000 Energy Box, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely - making your server room efficiently green with ease.
