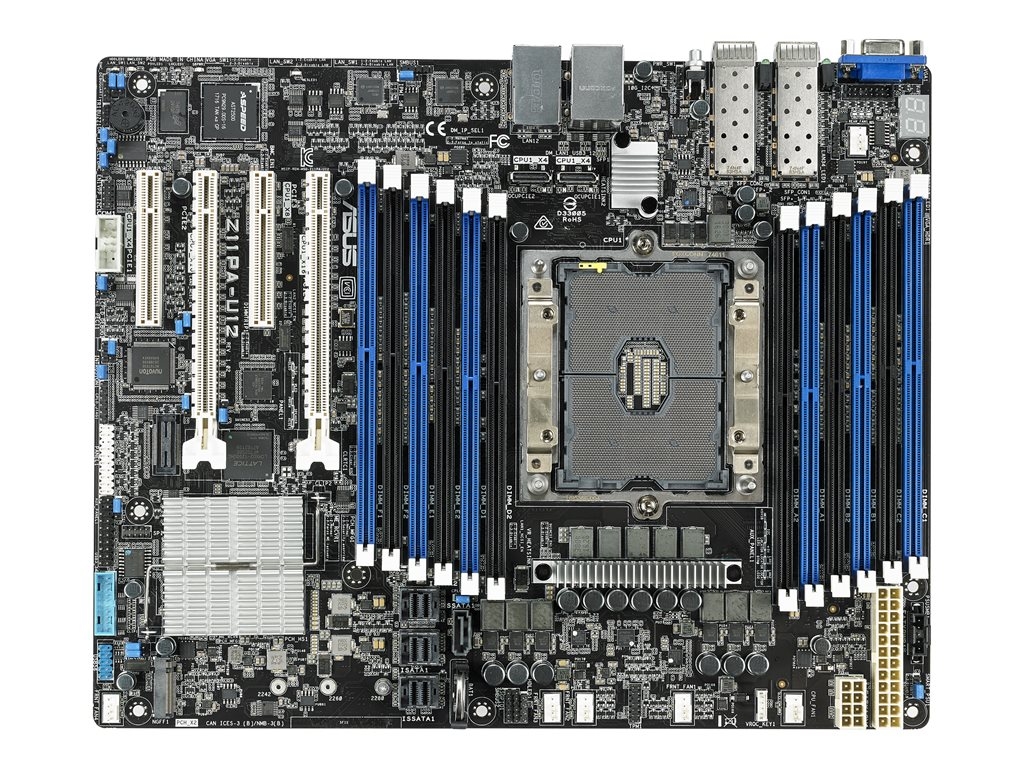

Printers & POSASUS Z11PA-U12/10G-2S - motherboard - ATX - Socket P - C622
SKU 90SB06A0-M0UAY1
| Product Description: | ASUS Z11PA-U12/10G-2S - motherboard - ATX - Socket P - C622 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel C622 |
| Processor Socket: | 1 x Socket P |
| Compatible Processors: | Xeon |
| Max RAM Size: | 1536 GB |
| RAM Supported: | 12 DIMM slots - DDR4 registered, Load-Reduced, 3DS Load-Reduced |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel C622 |
| Processor Socket: | Socket P |
| Max Processors Qty: | 1 |
| Compatible Processors: | Xeon |
| Supported RAM | |
| Max Size: | 1536 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2666 MHz |
| Registered or Buffered: | Registered, Load-Reduced, 3DS Load-Reduced |
| Features: | 6-channel memory architecture |
| Details: | 768 GB - Load-Reduced ¦ 384 GB - registered ¦ 1536 GB - 3DS Load-Reduced |
| Graphics | |
| Graphics Controller: | ASPEED AST2500 |
| Dedicated Video Memory: | 64 MB |
| LAN | |
| Network Controller: | 2 x Intel I210AT / X722 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 12 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x8 ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if PCI Express 3.0 x8 slot is occupied)) |
| Storage Interfaces: | SATA-600 -connectors: 1 x 7pin Serial ATA, 3 x mini-SAS HD - 13 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 2 x NVMe port |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 1 x management ¦ 1 x VGA ¦ 2 x LAN (10Gigabit Ethernet) - SFP+ |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x serial - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| Hardware Monitoring: | CPU core temperature, CPU fan tachometer, chassis fan tachometer |
| Hardware Features: | Intel VROC support, ASUS ProCool, OCuLink, ASMB9-iKVM |
| Miscellaneous | |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
ASUS Z11PA-U12/10G-2S features 12 DIMM slots - the most on any compact ATX motherboard - giving it unmatched memory expandability. Together with support for dual double-deck GPUs, Z11PA-U12/10G-2S makes an ideal platform for deep learning application development and education.
With dual 10 Gigabit SFP+ modules, ASUS Z11PA-U12/10G-2S delivers blazingly fast networking speeds for both intranet and internet connections. Additionally, Intel Virtual RAID on CPU (VROC) works with dual OCuLink connectors to enable both RAID 0 configurations for increased data transfer speeds and RAID 1 for instant data redundancy.
With dual 10 Gigabit SFP+ modules, ASUS Z11PA-U12/10G-2S delivers blazingly fast networking speeds for both intranet and internet connections. Additionally, Intel Virtual RAID on CPU (VROC) works with dual OCuLink connectors to enable both RAID 0 configurations for increased data transfer speeds and RAID 1 for instant data redundancy.
- Unmatched memory expandability with 12 DIMM slots
- High-speed networking with dual 10 Gigabit SFP+
- Dual OCuLink for efficient connections to NVMe devices
- Connect up to 13 6Gb/s SATA storage devices
The technical details come from 3rd party. edgemo is not responsible for any errors.
