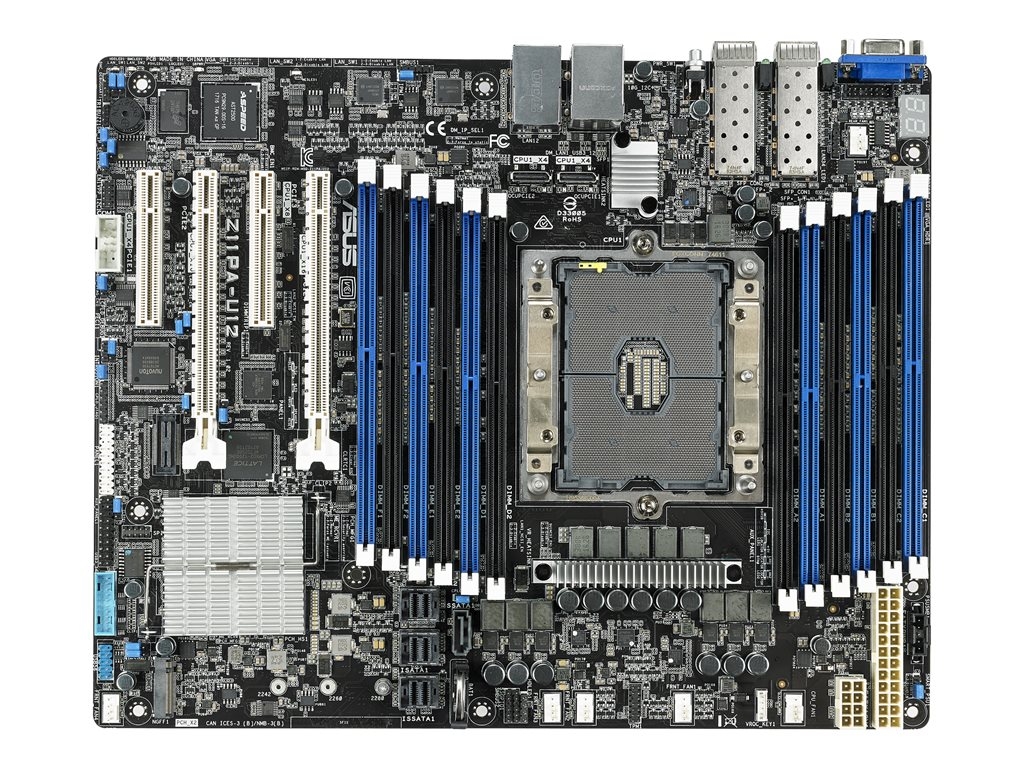

ASUS Z11PA-U12 - motherboard - ATX - Socket P - C621
SKU 90SB0660-M0UAY1
Product Description: | ASUS Z11PA-U12 - motherboard - ATX - Socket P - C621 |
Product Type: | Motherboard - ATX |
Chipset Type: | Intel C621 |
Processor Socket: | 1 x Socket P |
Compatible Processors: | Xeon |
Max RAM Size: | 1536 GB |
RAM Supported: | 12 DIMM slots - DDR4 registered, Load-Reduced, 3DS Load-Reduced |
- Specifications
- Description
General | |
Product Type: | Motherboard - ATX |
Chipset Type: | Intel C621 |
Processor Socket: | Socket P |
Max Processors Qty: | 1 |
Compatible Processors: | Xeon |
Supported RAM | |
Max Size: | 1536 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2666 MHz |
Registered or Buffered: | Registered, Load-Reduced, 3DS Load-Reduced |
Features: | 6-channel memory architecture |
Details: | 768 GB - Load-Reduced ¦ 384 GB - registered ¦ 1536 GB - 3DS Load-Reduced |
Graphics | |
Graphics Controller: | ASPEED AST2500 |
Dedicated Video Memory: | 64 MB |
LAN | |
Network Controller: | 2 x Intel I210AT |
Network Interfaces: | 2 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 12 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x8 ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if PCI Express 3.0 x8 slot is occupied)) |
Storage Interfaces: | SATA-600 -connectors: 1 x 7pin Serial ATA, 3 x mini-SAS HD - 13 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 2 x NVMe port |
Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 1 x management ¦ 1 x VGA |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x serial - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
Hardware Monitoring: | CPU core temperature, CPU fan tachometer, chassis fan tachometer |
Hardware Features: | Intel VROC support, ASUS ProCool, OCuLink, ASMB9-iKVM |
Miscellaneous | |
Width: | 30.5 cm |
Depth: | 24.4 cm |
ASUS Z11PA-U12 features 12 DIMM slots giving it unmatched memory expandability. Together with support for dual double-deck GPUs, Z11PA-U12 makes an ideal platform for deep learning application development and education. ASUS Z11PA-U12 features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards. ASUS Z11PA-U12 features mini-SAS HD connectors that support several SATA ports each for high-speed connectivity with external devices and cleaner cable routing. Additionally, a 7-pin SATA port provides flexibility to connect an optical drive or extra SATA device.
- Unmatched memory expandability with 12 DIMM slots
- Dual OCuLink for efficient connections to NVMe devices
- Connect SATA storage devices
