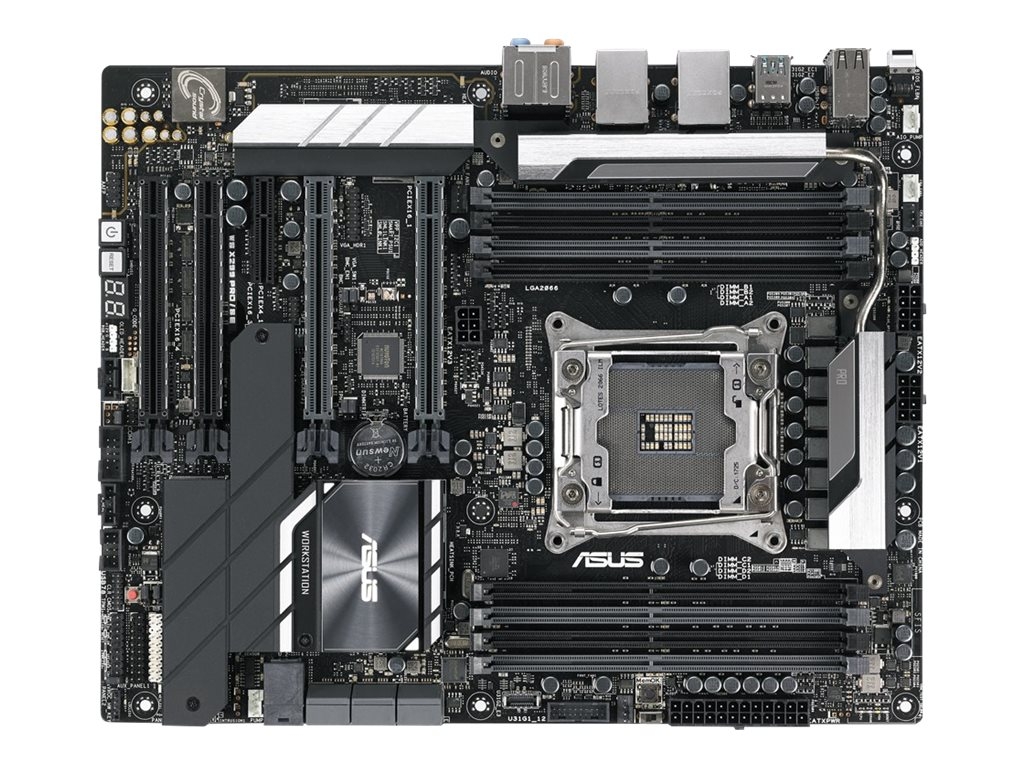

ASUS WS X299 PRO/SE - motherboard - ATX - LGA2066 Socket - X299

SKU 90SW00A0-M0EAY0

Product Description:	ASUS WS X299 PRO/SE - motherboard - ATX - LGA2066 Socket - X299
Product Type:	Motherboard - ATX
Chipset Type:	Intel X299
Processor Socket:	1 x LGA2066 Socket
Compatible Processors:	Core X
Max RAM Size:	128 GB
RAM Supported:	8 DIMM slots - DDR4, non-ECC, unbuffered

05-11-2024

Specifications
Description
Accessories

General
Product Type:	Motherboard - ATX
Chipset Type:	Intel X299
Processor Socket:	LGA2066 Socket
Max Processors Qty:	1
Compatible Processors:	Core X

Supported RAM
Max Size:	128 GB
Technology:	DDR4
Bus Clock:	2400 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.)
Supported RAM Integrity Check:	Non-ECC
Registered or Buffered:	Unbuffered
Features:	Intel Extreme Memory Profiles (XMP)

Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALCS1220A
Compliant Standards:	DTS Connect, High Definition Audio, DTS Headphone:X

LAN
Network Controller:	Intel I210-AT
Network Interfaces:	2 x Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 8 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x4
Storage Interfaces:	SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x U.2 ¦ PCIe 3.0 -connectors: 1 x M.2
RAID Features:	Intel Rapid Storage Technology
Interfaces:	2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack
Internal Interfaces:	2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x USB 3.1 Gen 2 - header
Power Connectors:	24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors

Features
BIOS Features:	ASUS Quiet Thermal Solution, USB BIOS Flashback
Hardware Features:	Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Intel Smart Response Technology, ASUS 8 Phase CPU Power Design, Q-Code, AMD 3-way CrossFireX technology support, ASUS 2 Phase DRAM Power Design, ASUS 5X PROTECTION, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Crystal Sound 3, AURA RGB Lighting Control, Intel Optane Memory Ready, Intel VROC support, ASUS PRO Clock II Technology, M.2 heatsink, ASMB9-iKVM

Miscellaneous
Software Included:	ASUS AI Charger+, ASUS Control Center
Width:	30.5 cm
Depth:	24.4 cm

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

vis mere

With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133MHz and beyond.
WS X299 PRO/SE includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel Core X-series processors.

Make your memory go faster
OC design - ASUS PRO clock II technology
Multi-GPU support
Ultra-efficient VRM heatsink
Join the NVMe revolution
