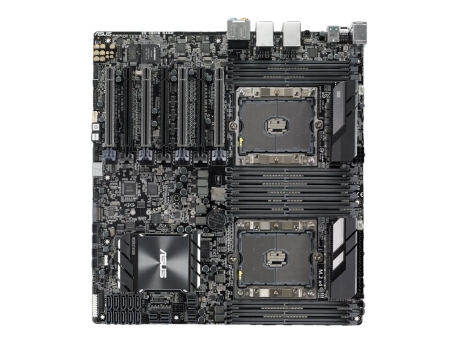

Printers & POSASUS WS C621E SAGE - motherboard - SSI EEB - Socket P - C621
SKU 90SW0020-M0EAY0
| Product Description: | ASUS WS C621E SAGE - motherboard - SSI EEB - Socket P - C621 |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel C621 |
| Processor Socket: | 2 x Socket P |
| Compatible Processors: | Xeon (Maximum TDP 205 Watt) |
| Max RAM Size: | 768 GB |
| RAM Supported: | 12 DIMM slots - DDR4, ECC, registered, Load-Reduced |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel C621 |
| Processor Socket: | Socket P |
| Max Processors Qty: | 2 |
| Compatible Processors: | Xeon (Maximum TDP 205 Watt) |
| Supported RAM | |
| Max Size: | 768 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2666 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered, Load-Reduced |
| Graphics | |
| Graphics Controller: | ASPEED AST2500 |
| Dedicated Video Memory: | 64 MB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALCS1220A |
| Compliant Standards: | DTS Connect, High Definition Audio, DTS Headphone:X |
| LAN | |
| Network Controller: | Intel I210-AT |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x CPU ¦ 12 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 2 x PCIe 3.0 x16 (x8 mode) |
| Storage Interfaces: | Intel C621: SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 4 x U.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 3.1 Gen 1 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Features: | USB BIOS Flashback |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, audio jack detect technology, ASUS Q-Shield, ASUS DIGI+ VRM, NVIDIA 4-way SLI Technology Support, Q-Code, ASUS 2 Phase DRAM Power Design, 7+1 Phase Power Design, AMD 4-way CrossFireX technology support, anti-pop function, ProCool Power Connector, ASUS Gamer's Guardian, ASUS SafeSlot |
| Miscellaneous | |
| Software Included: | ASUS Control Center |
| Width: | 30.5 cm |
| Depth: | 33 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ASUS WS C621E SAGE accommodates up to four dual-width graphic cards with a four true PCIe Gen3 x16 link to unleash maximum graphic performance. With support for up to 4-way NVIDIA GeForce SLI, AMD CrossFireX, and 2-Way NVIDIA Quadro SLI, WS C621E SAGE is an excellent choice for content creators, mechanical or architectural engineers, and anyone with processing-intensive workloads.
- Extraordinary performance with dual Intel Xeon CPU overclocking
- Supporting up to 12 DDR4 error-correcting code memory (ECC memory)
- Lightning-fast storage speed with NVMe PCIe SSD RAID 0 support
- Super-fast transfers at up to 32 Gbps with onboard four U.2 and M.2
- 10 Gb/s USB 3.1 Gen2 onboard
- Exclusive audio features with Realtek codec and unique design features for pristine and powerful audio
