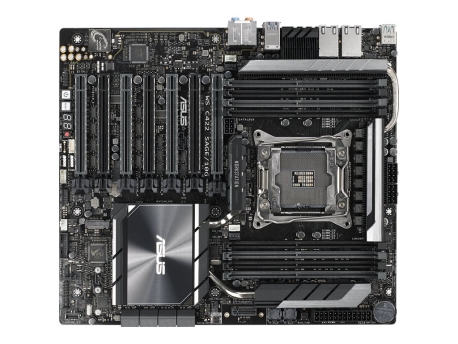

Printers & POSASUS WS C422 SAGE/10G - motherboard - SSI CEB - LGA2066 Socket - C422
SKU 90SW00J0-M0EAY0
| Product Description: | ASUS WS C422 SAGE/10G - motherboard - SSI CEB - LGA2066 Socket - C422 |
| Product Type: | Motherboard - SSI CEB |
| Chipset Type: | Intel C422 |
| Processor Socket: | 1 x LGA2066 Socket |
| Compatible Processors: | Xeon W |
| Max RAM Size: | 512 GB |
| RAM Supported: | 8 DIMM slots - DDR4, ECC, registered, Load-Reduced |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI CEB |
| Chipset Type: | Intel C422 |
| Processor Socket: | LGA2066 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Xeon W |
| Supported RAM | |
| Max Size: | 512 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered, Load-Reduced |
| Features: | Quad channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALCS1220A |
| Compliant Standards: | DTS Connect, High Definition Audio, DTS Headphone:X |
| LAN | |
| Network Controller: | Intel X550-AT2 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 7 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x16, x16/x16/x16/x16, x16/x8/x8/x8/x8/x8/x8 modes) |
| Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 2 x M.2 ¦ PCIe 3.0 -connectors: 2 x U.2 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 2 x LAN (10Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces: | 2 x USB 3.1 Gen 1 - header ¦ 1 x USB 3.1 Gen 2 - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header |
| Power Connectors: | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Features: | USB BIOS Flashback |
| Hardware Features: | Jack retasking, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, ASUS Q-Shield, ASUS 8 Phase Power Design, Intel Turbo Boost Technology 2.0, NVIDIA 4-way SLI Technology Support, Q-Code, ASUS DIGI+ Power Control, Onboard Button, ASUS 2 Phase DRAM Power Design, AMD 4-way CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, ProCool Power Connector, ASUS Overvoltage Protection, ASUS Crystal Sound 3, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, Intel VROC support |
| Miscellaneous | |
| Width: | 30.5 cm |
| Depth: | 26.7 cm |
WS C422 Sage/10G supports server-grade Intel Xeon W series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.
With built in dual Intel 10GBase-T networking, WS C422 Sage/10G increases data throughput and improves efficiency. This supports high-density, high-bandwidth and low-latency access-layer networks needed for extremely demanding applications, such as graphics or video production.
With built in dual Intel 10GBase-T networking, WS C422 Sage/10G increases data throughput and improves efficiency. This supports high-density, high-bandwidth and low-latency access-layer networks needed for extremely demanding applications, such as graphics or video production.
- Powerful performance with Intel Xeon W processor and ECC memory
- High Speed networking with dual Intel 10G LAN
- ASUS Control Center
- Next-gen transfer speeds
- Multiple Ultra-efficient heatsinks
- Immersive headphone Audio
The technical details come from 3rd party. edgemo is not responsible for any errors.
