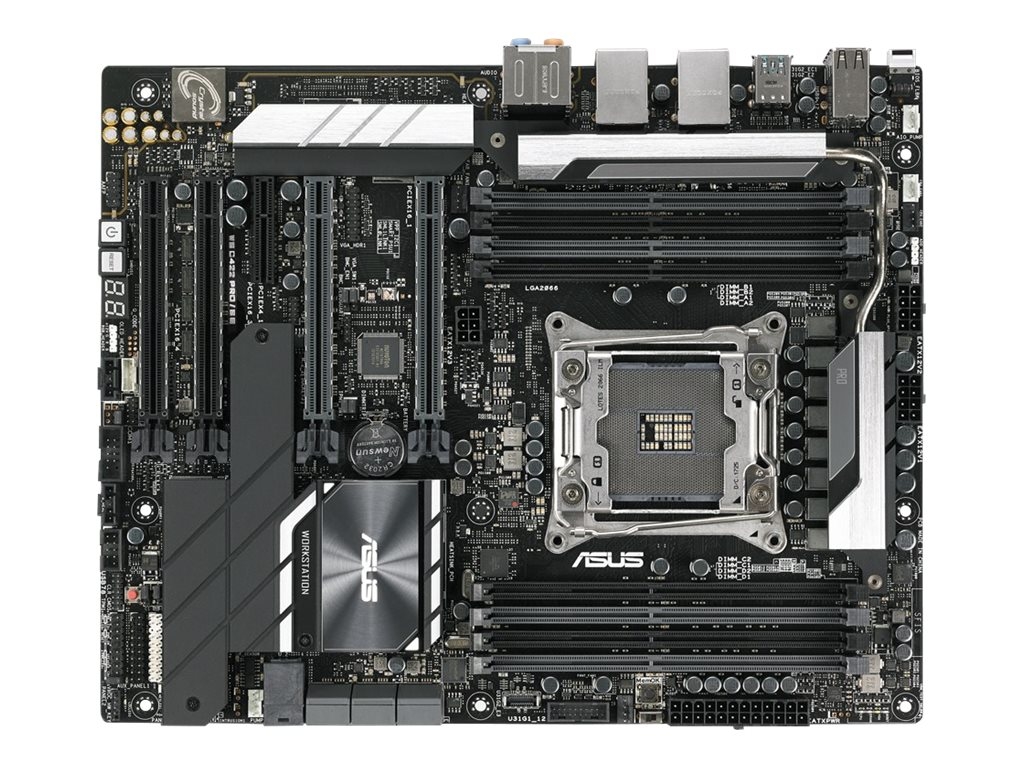

ASUS WS C422 Pro/SE - motherboard - ATX - LGA2066 Socket - C422

SKU 90SW0080-M0EAY0
Product Description:ASUS WS C422 Pro/SE - motherboard - ATX - LGA2066 Socket - C422
Product Type:Motherboard - ATX
Chipset Type:Intel C422
Processor Socket:1 x LGA2066 Socket
Compatible Processors:Xeon
Max RAM Size:512 GB
RAM Supported:8 DIMM slots - DDR4, ECC, registered, Load-Reduced
24-04-2024
  • Specifications
  • Description
General
Product Type:Motherboard - ATX
Chipset Type:Intel C422
Processor Socket:LGA2066 Socket
Max Processors Qty:1
Compatible Processors:Xeon
Supported RAM
Max Size:512 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check:ECC
Registered or Buffered:Registered, Load-Reduced
Features:Quad channel memory architecture
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALCS1220A
Compliant Standards:DTS Connect, High Definition Audio, DTS Headphone:X
LAN
Network Controller:Intel I210-AT
Network Interfaces:2 x Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 8 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x4
Storage Interfaces:SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x U.2 ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces:2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack
Internal Interfaces:2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x USB 3.1 Gen 2 - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header
Power Connectors:24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors
Features
BIOS Features:Multilingual BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, ASUS EZ Flash 3
Hardware Features:Jack retasking, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS 8 Phase CPU Power Design, Q-Code, AMD 3-way CrossFireX technology support, ASUS 2 Phase DRAM Power Design, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Overvoltage Protection, ASUS Crystal Sound 3, AURA RGB Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, Intel VROC support, M.2 heatsink, ASMB9-iKVM
Miscellaneous
Software Included:ASUS AI Charger+, ASUS Control Center
Width:30.5 cm
Depth:24.4 cm
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
vis mere
WS C422 PRO/SE supports server-grade Intel Xeon W series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.
WS C422 PRO/SE features three true PCIe Gen 3 links with support for two-way and three-way NVIDIA SLI and AMD CrossFireX configurations to enable multiple GPU setups that harness the full power of the latest graphics technologies to unleash maximum graphics processing performance.
Designed for the powerful Intel Xeon scalable processor with up to 28 cores, WS C422 PRO/SE features a capable thermal design to ensure maximum performance with no CPU throttling. Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS C422 PRO/SE is always ready to handle any task, no matter how demanding.
  • Powered by Intel Xeon W processor with ECC memory
  • Server-grade design with built-in dual Intel Gigabit LAN
  • Next-gen transfer speeds - up to 32 Gbps dual M.2 and U.2, plus up to 10 Gbps USB 3.1 Type-A and Type-C connections
  • Ultimate graphics power with 2/3-Way NVIDIA SLI and AMD Crossfire X
  • Ultra-efficient VRM heatsink - metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance




The technical details come from 3rd party. edgemo is not responsible for any errors.
