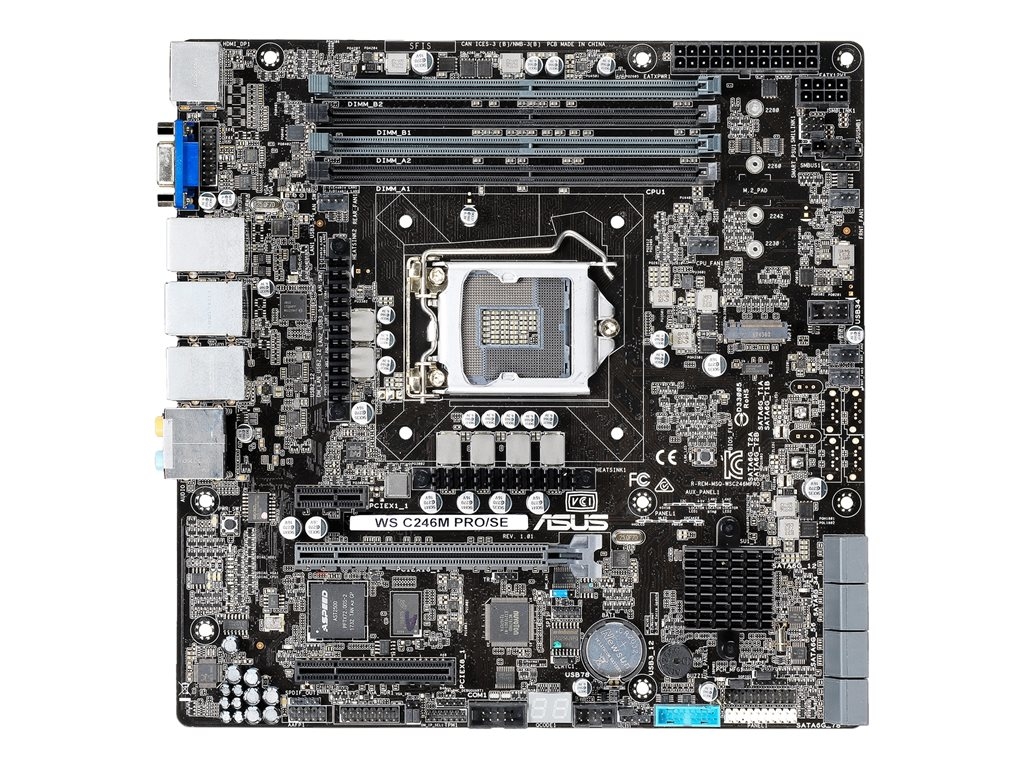

Printers & POSASUS WS C246M PRO/SE - motherboard - micro ATX - LGA1151 Socket - C246
SKU 90SW00F0-M0EAY0
| Product Description: | ASUS WS C246M PRO/SE - motherboard - micro ATX - LGA1151 Socket - C246 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel C246 |
| Processor Socket: | 1 x LGA1151 Socket |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-2100 series |
| Max RAM Size: | 64 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel C246 |
| Processor Socket: | LGA1151 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-2100 series |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel I210-AT / I219LM |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 2 x USB 2.0 ¦ 2 x USB 3.1 Gen 1 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.1 Gen 2 |
| Internal Interfaces: | 2 x VGA - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | WfM 2.0 support, ASUS EZ Flash, IPMI support, USB BIOS Flashback, ACPI 5.0a support, DMI 3.0 support, SMBIOS 3.0 support |
| Hardware Monitoring: | CPU core temperature, CPU fan tachometer, chassis fan tachometer |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on ring (WOR), wake on PME |
| Hardware Features: | CrashFree BIOS 3, Intel Turbo Boost Technology, Dual LAN Teaming, Preboot eXecution Environment (PXE), ASUS SafeSlot |
| Miscellaneous | |
| Included Accessories: | I/O back plate, 1 x M.2 screw |
| Cables Included: | 8 x Serial ATA cable ¦ 1 x serial panel |
| Software Included: | Drivers & Utilities, ASUS Control Center |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
WS C246M PRO/SE is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for great performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.
- Rack-optimized design for great cooling efficiency and stability
- Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
- Accelerated data transfer speeds of up to 32Gbps with M.2
- Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
The technical details come from 3rd party. edgemo is not responsible for any errors.
