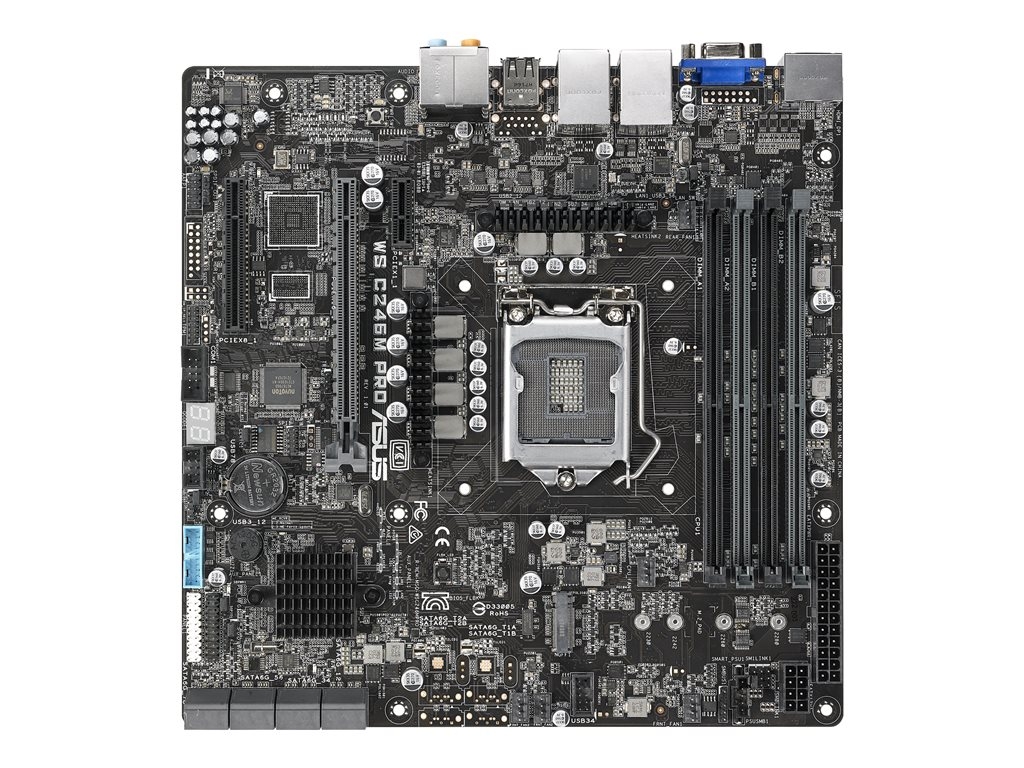

ASUS WS C246M PRO - motherboard - micro ATX - LGA1151 Socket - C246

SKU 90SW00E0-M0EAY0

Product Description:	ASUS WS C246M PRO - motherboard - micro ATX - LGA1151 Socket - C246
Product Type:	Motherboard - micro ATX
Chipset Type:	Intel C246
Processor Socket:	1 x LGA1151 Socket
Compatible Processors:	Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-2100 series
Max RAM Size:	64 GB
RAM Supported:	4 DIMM slots - DDR4, non-ECC, ECC, unbuffered

Not in stock

Specifications
Description
Accessories

General
Product Type:	Motherboard - micro ATX
Chipset Type:	Intel C246
Processor Socket:	LGA1151 Socket
Max Processors Qty:	1
Compatible Processors:	Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-2100 series

Supported RAM
Max Size:	64 GB
Technology:	DDR4
Bus Clock:	2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check:	Non-ECC, ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture

Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALC887
Compliant Standards:	High Definition Audio

LAN
Network Controller:	Intel I210-AT / I219LM
Network Interfaces:	2 x Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x1
Storage Interfaces:	SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces:	2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 2 ¦ 2 x USB 2.0 ¦ 2 x USB 3.1 Gen 1 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK
Internal Interfaces:	4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector

Features
BIOS Type:	AMI
BIOS Features:	WfM 2.0 support, ASUS EZ Flash, USB BIOS Flashback, ACPI 5.0a support, DMI 3.0 support, SMBIOS 3.0 support
Hardware Monitoring:	CPU core temperature, CPU fan tachometer, chassis fan tachometer
Sleep / Wake Up:	Wake on LAN (WOL), wake on ring (WOR), wake on PME
Hardware Features:	CrashFree BIOS 3, Intel Turbo Boost Technology, Dual LAN Teaming, Preboot eXecution Environment (PXE), ASUS SafeSlot

Miscellaneous
Included Accessories:	I/O back plate
Cables Included:	Serial ATA cable ¦ 1 x serial panel
Software Included:	Drivers & Utilities, ASUS Control Center
Width:	24.4 cm
Depth:	24.4 cm

vis mere

WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.
WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. You can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data transfer speeds of up to 10 Gbps, twice as fast USB 3.1 Gen1.

Rack-optimized design for better cooling efficiency and stability
Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
Accelerated data transfer speeds of up to 32 Gbps with M.2
Onboard USB 3.1 for fast transfer speeds of up to 10 Gbps
Dual Intel Gigabit LAN with teaming support
