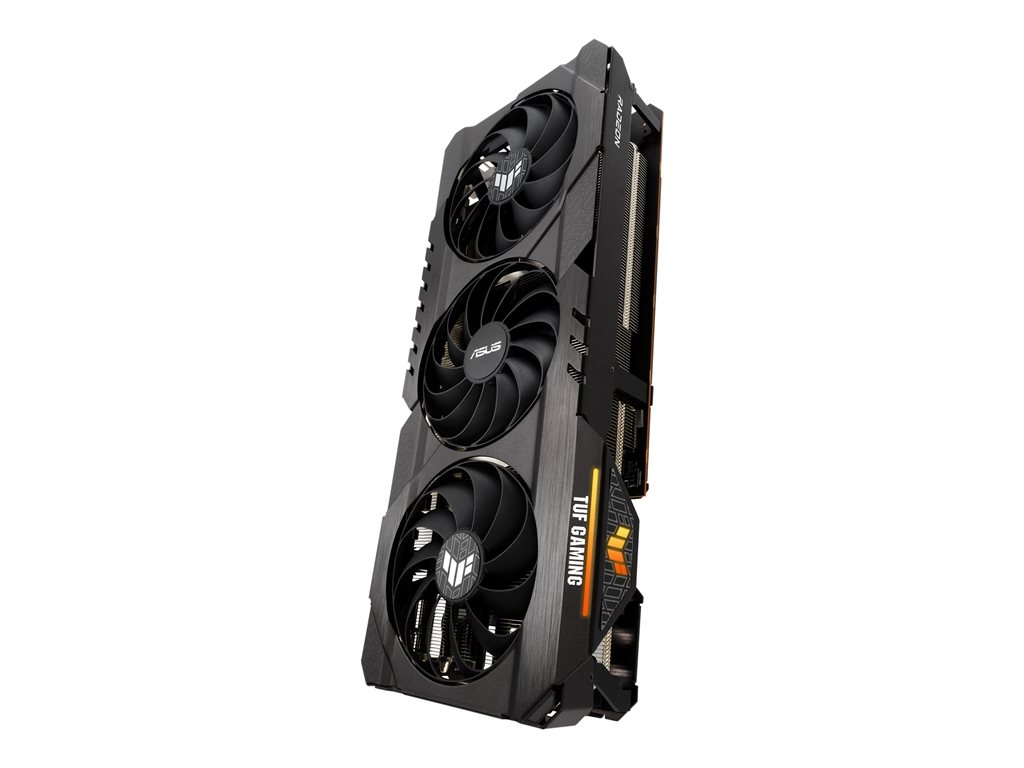

Printers & POSASUS TUF-RX6800-O16G-GAMING - graphics card - Radeon RX 6800 - 16 GB
SKU 90YV0FM1-M0NA00
| Product Description: | ASUS TUF-RX6800-O16G-GAMING - graphics card - Radeon RX 6800 - 16 GB |
| Device Type: | Graphics card |
| Bus Type: | PCI Express 4.0 |
| Graphics Engine: | AMD Radeon RX 6800 |
| Memory: | 16 GB GDDR6 |
| Memory Speed: | 16 Gbps |
| Boost Clock: | 2190 MHz |
- Specifications
- Description
| General | |
| Device Type: | Graphics card |
| Bus Type: | PCI Express 4.0 |
| Graphics Engine: | AMD Radeon RX 6800 |
| Boost Clock: | 2190 MHz |
| Stream Processors: | 3840 |
| Max Resolution: | 7680 x 4320 |
| Max Monitors Supported: | 4 |
| Interfaces Details: | HDMI ¦ 3 x DisplayPort |
| API Supported: | DirectX 12, Vulkan, OpenGL 4.6 |
| Features: | ATI CrossFire Technology, Dual Bios, Dual ball Bearing Fan, FreeSync Technology, AUTO-EXTREME technology, metal wraparound backplate, MaxContact technology, GPU Tweak II, variable rate shading (VRS), Axial-tech Fan Design, Radeon Boost, Radeon Image Sharpening, Radeon Anti-Lag, AMD FidelityFx, 2.9-slot Fan Cooler, RDNA 2 Architecture, AMD Infinity Cache, AMD Smart Access Memory technology, HDCP |
| Memory | |
| Size: | 16 GB |
| Technology: | GDDR6 SDRAM |
| Memory Speed: | 16 Gbps |
| Bus Width: | 256-bit |
| System Requirements | |
| Required Power Supply: | 650 W |
| Additional Requirements: | 2 x 8 pin PCI Express power connector |
| Miscellaneous | |
| Compliant Standards: | HDCP 2.3, DisplayPort 1.4a |
| Width: | 5.78 cm |
| Depth: | 31 cm |
| Height: | 14.02 cm |
The TUF GAMING Radeon RX 6800 XT is a tenacious beast with a tough metal exterior, super-efficient cooling, and components that offer enhanced endurance. An all-metal shroud houses three powerful axial-tech fans with dual ball fan bearings and extra blades. Under the exoskeleton, a thick heatsink keeps thermals under tight control and TUF components, selected for maximum durability and performance, keep the card ahead of the pack. You asked for a mean machine - this one is ready for action.
- Axial-tech fan design has been enhanced with more fan blades and an advanced rotation scheme
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- An all-aluminum shroud, reinforced frame, and metal backplate enhance durability
- MaxContact heat spreader features a super flat surface for improved thermal transfer
- A vented backplate prevents hot air from recirculating through the cooling array
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring
The technical details come from 3rd party. edgemo is not responsible for any errors.
