Printers & POSASUS TUF-GTX1660S-O6G-GAMING - OC Edition - graphics card - GF GTX 1660 SUPER - 6 GB
SKU TUF-GTX1660S-O6G-GAMING
| Product Description: | ASUS TUF-GTX1660S-O6G-GAMING - OC Edition - graphics card - GF GTX 1660 SUPER - 6 GB |
| Device Type: | Graphics card |
| Bus Type: | PCI Express 3.0 x16 |
| Graphics Engine: | NVIDIA GeForce GTX 1660 SUPER |
| Memory: | 6 GB GDDR6 |
| Core Clock: | 1530 MHz |
| Boost Clock: | 1845 MHz |
- Specifications
- Description
| General | |
| Device Type: | Graphics card |
| Bus Type: | PCI Express 3.0 x16 |
| Graphics Engine: | NVIDIA GeForce GTX 1660 SUPER |
| Core Clock: | 1530 MHz |
| Boost Clock: | 1845 MHz |
| CUDA Cores: | 1408 |
| Max Resolution: | 7680 x 4320 |
| Max Monitors Supported: | 3 |
| Interfaces Details: | DisplayPort ¦ HDMI ¦ DVI-D |
| API Supported: | DirectX 12, OpenGL 4.6 |
| Features: | Dust-proof fansink, ASUS DirectCU II Technology, NVIDIA G-Sync ready, AUTO-EXTREME technology, NVIDIA Ansel, NVIDIA Turing GPU architecture, Nvidia Studio, 2.3-slot Fan Cooler, HDCP |
| Memory | |
| Size: | 6 GB |
| Technology: | GDDR6 SDRAM |
| Effective Clock Speed: | 14002 MHz |
| Bus Width: | 192-bit |
| System Requirements | |
| OS Required: | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits) |
| Required Power Supply: | 450 W |
| Additional Requirements: | 8 pin PCI Express power connector |
| Miscellaneous | |
| Software Included: | Display drivers, ASUS GPU Tweak II, NVIDIA GeForce Experience |
| Compliant Standards: | IP5X, DisplayPort 1.4, HDCP 2.2 |
| Width: | 4.5 cm |
| Depth: | 20.6 cm |
| Height: | 12.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |

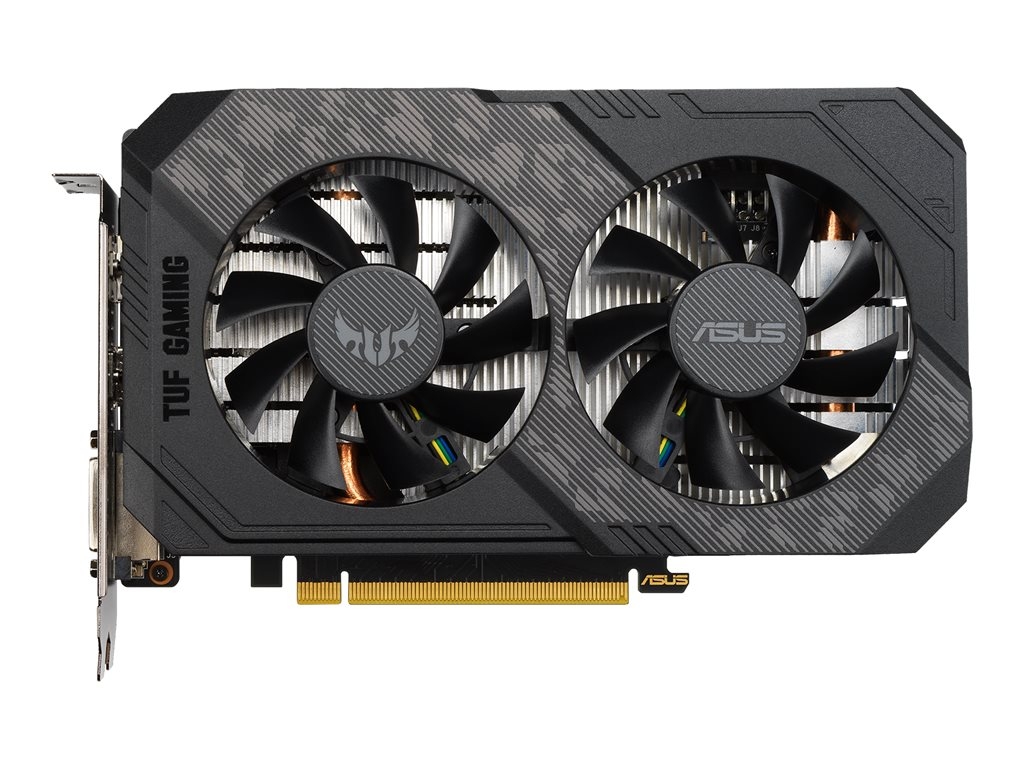

The TUF Gaming GeForce GTX 1660 SUPER stacks an arsenal of weapons that bring reliable 3D horsepower to the TUF Gaming ecosystem. Each card is built using Auto-Extreme manufacturing, protected by a rigid backplate that prevents PCB flex, and features fans with space-grade lubricant that are sealed to IP5X standards. And it's all backed by a rigorous battery of validation tests to ensure compatibility with the latest TUF components. If you're looking for the tank of graphics cards, lock and load your rig with the TUF.
- Space-grade lubricant brings the durability of dual ball bearings to quieter sleeve bearing designs
- DirectCU II copper heatpipes make direct contact with the die for better cooling
- IP5X dust resistance offers protection from particle ingress for better durability
- Auto-Extreme Technology uses automation to enhance reliability
- A protective backplate secures components during transportation and installation
The technical details come from 3rd party. edgemo is not responsible for any errors.
