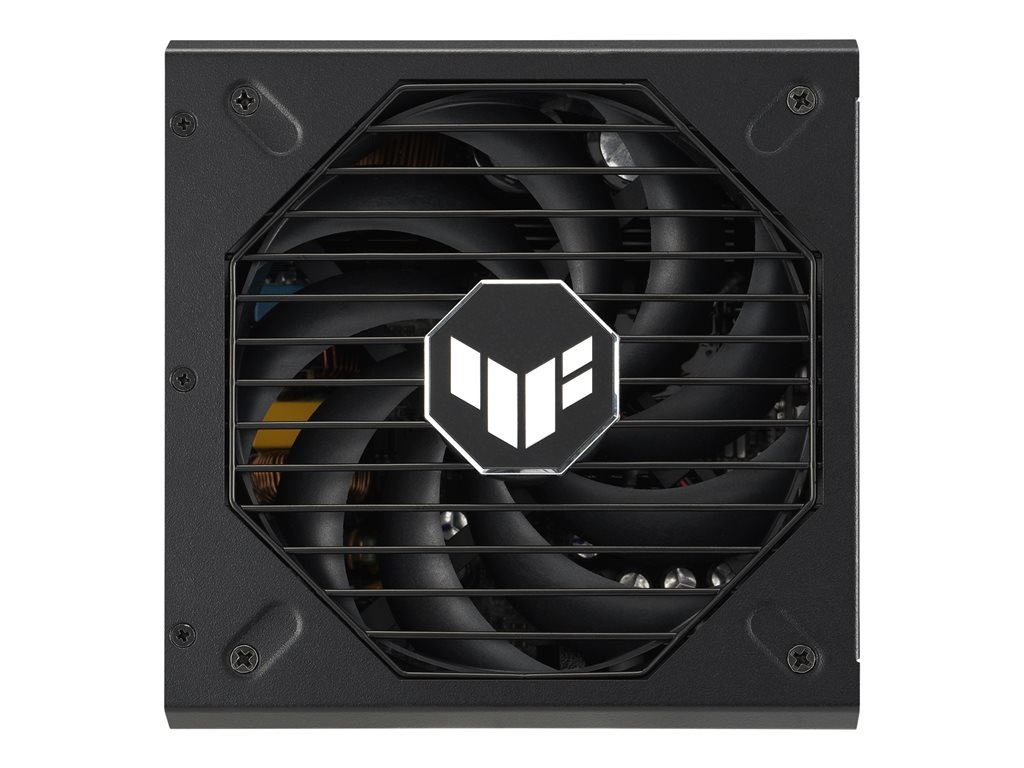

ASUS TUF Gaming - power supply - 850 Watt

SKU 90YE00S2-B0NA00

Product Description:	ASUS TUF Gaming - power supply - 850 Watt
Device Type:	Power supply - internal
Specification Compliance:	ATX12V
80 PLUS Certification:	80 PLUS Gold
Weight:	2.38 kg
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V

In Stock(3)

Login for price

Specifications
Description
Accessories

General
Device Type:	Power supply - internal
Specification Compliance:	ATX12V
PSU Form Factor:	ATX

Power Device
Input Voltage:	AC 100-240 V
Power Output Connectors Details:	1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 16 pin PCI Express power ¦ 4 x 4 PIN internal power ¦ 5 x 15 pin Serial ATA power
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	850 Watt
Output Current:	+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 70.8 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Gold

Miscellaneous
Included Accessories:	Cable ties
Features:	Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, Axial-tech fan design
Compliant Standards:	RoHS

Manufacturer Warranty
Service & Support:	Limited warranty - 10 years

Dimensions & Weight
Width:	15 cm
Depth:	15 cm
Height:	8.6 cm
Weight:	2.38 kg

The technical details come from 3rd party. edgemo is not responsible for any errors.
