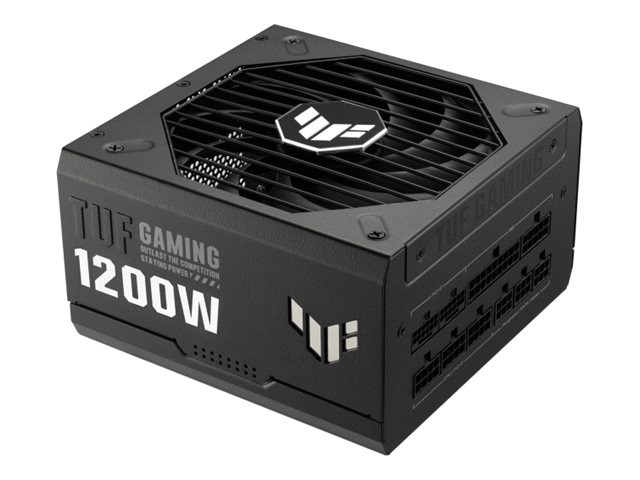

ASUS TUF Gaming - power supply - 1200 Watt

SKU 90YE00S0-B0NA00

Product Description:	ASUS TUF Gaming - power supply - 1200 Watt
Device Type:	Power supply - internal
Specification Compliance:	ATX12V 3.0/ EPS12V
80 PLUS Certification:	80 PLUS Gold
Weight:	2.66 kg
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V

30-12-2024

Specifications
Description
Accessories

General
Device Type:	Power supply - internal
Specification Compliance:	ATX12V 3.0/ EPS12V
PSU Form Factor:	ATX

Power Device
Input Voltage:	AC 100-240 V
Power Output Connectors Details:	1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 3 x 8 pin PCI Express power ¦ 5 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	1200 Watt
Output Current:	+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 99 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A
Efficiency:	92%
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Gold

Miscellaneous
Included Accessories:	Cable ties
Cables Included:	AC input cable - external ¦ Power 24 pin ATX with detachable 4 pin section modular cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 16-pin 12VHPWR power cable 67.5 cm ¦ 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 67.5 cm ¦ 3x Serial ATA modular cable ¦ 2x Serial ATA modular cable ¦ 4 pin internal power cable ¦ Power 8 pin EPS12V modular cable 67.5 cm
MTBF:	170,000 hours
Cooling System:	135 mm fan
Features:	Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, Axial-tech fan design, protective PCB coating, military grade certification
Compliant Standards:	RoHS

Manufacturer Warranty
Service & Support:	Limited warranty - 10 years

Dimensions & Weight
Width:	15 cm
Depth:	15 cm
Height:	8.6 cm
Weight:	2.66 kg

vis mere

The ASUS TUF Gaming power supply is a cornerstone for building a reliable, high-performance gaming or professional workstation. With an 80 PLUS Gold certification, it offers up to 92% energy efficiency, significantly reducing heat generation and operational costs. The power supply is designed with a 135 mm fan, incorporating an axial-tech fan design that ensures superior cooling under heavy load conditions.
Its fully modular cable management system allows for a clean and organized setup, enhancing airflow and aesthetic appeal. The military-grade certification and protective PCB coating safeguard the power supply from electrical hazards, ensuring durability and reliability. With a generous 1200 W output and compatibility with PC/Server specifications, it supports a wide range of high-end components. The ASUS TUF Gaming power supply is equipped with multiple protection features, including overcurrent, overheat, overpower, overvoltage, short-circuit, and undervoltage protection, offering peace of mind for long-term use.

80 PLUS Gold certified for high energy efficiency
Fully modular cable management for a tidy build
135 mm cooling fan with axial-tech design for lower operating temperatures
1200 W power output to support demanding systems
Comprehensive protection features for long-term reliability
